15SRBP-W

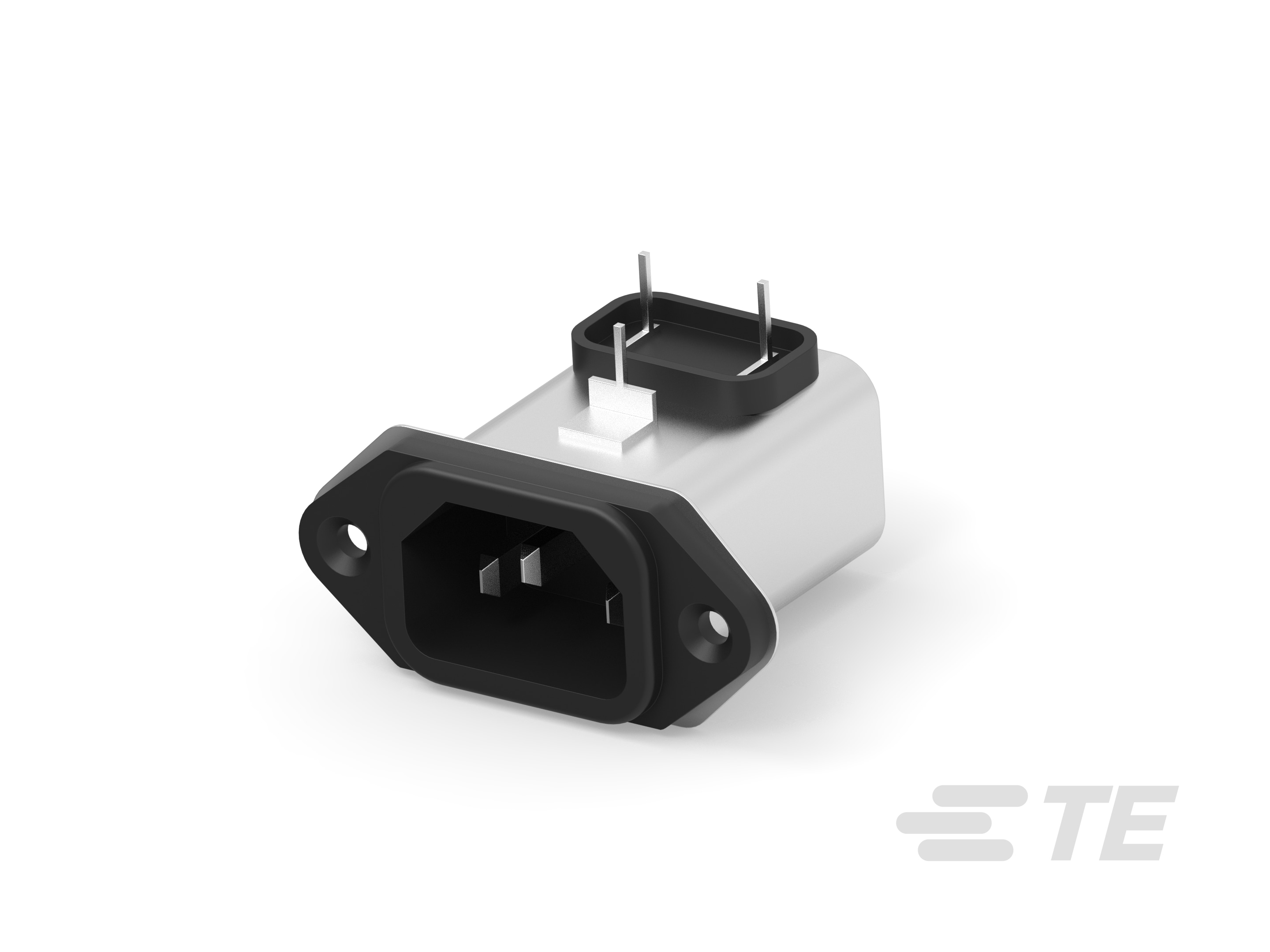

Power Line, Right Angle, 15A Current Rating, PCB Pins Output, Operating Voltage 250 VAC, Filtered, IEC 60320-1 C-14, Corcom SRB, Power Entry Modules
15SRBP-W
Power Line, Right Angle, 15A Current Rating, PCB Pins Output, Operating Voltage 250 VAC, Filtered, IEC 60320-1 C-14, Corcom SRB, Power Entry Modules
-
- Corcom
- Corcom SRB
- TE Internal #: 4-6609987-1
- TE Internal Description: 15SRBP-W=F8223D
- All IEC Filtered Inlets, Corcom SRB Series (45)
-
Filter Type : Power Line
-
Product Orientation : Right Angle
-
Leakage Current (Max) (120VAC, 60Hz) (µA): 40
-
Leakage Current (Max) (250VAC, 50Hz) (µA): 70
-
Current Rating (A): 15
