15SRBP

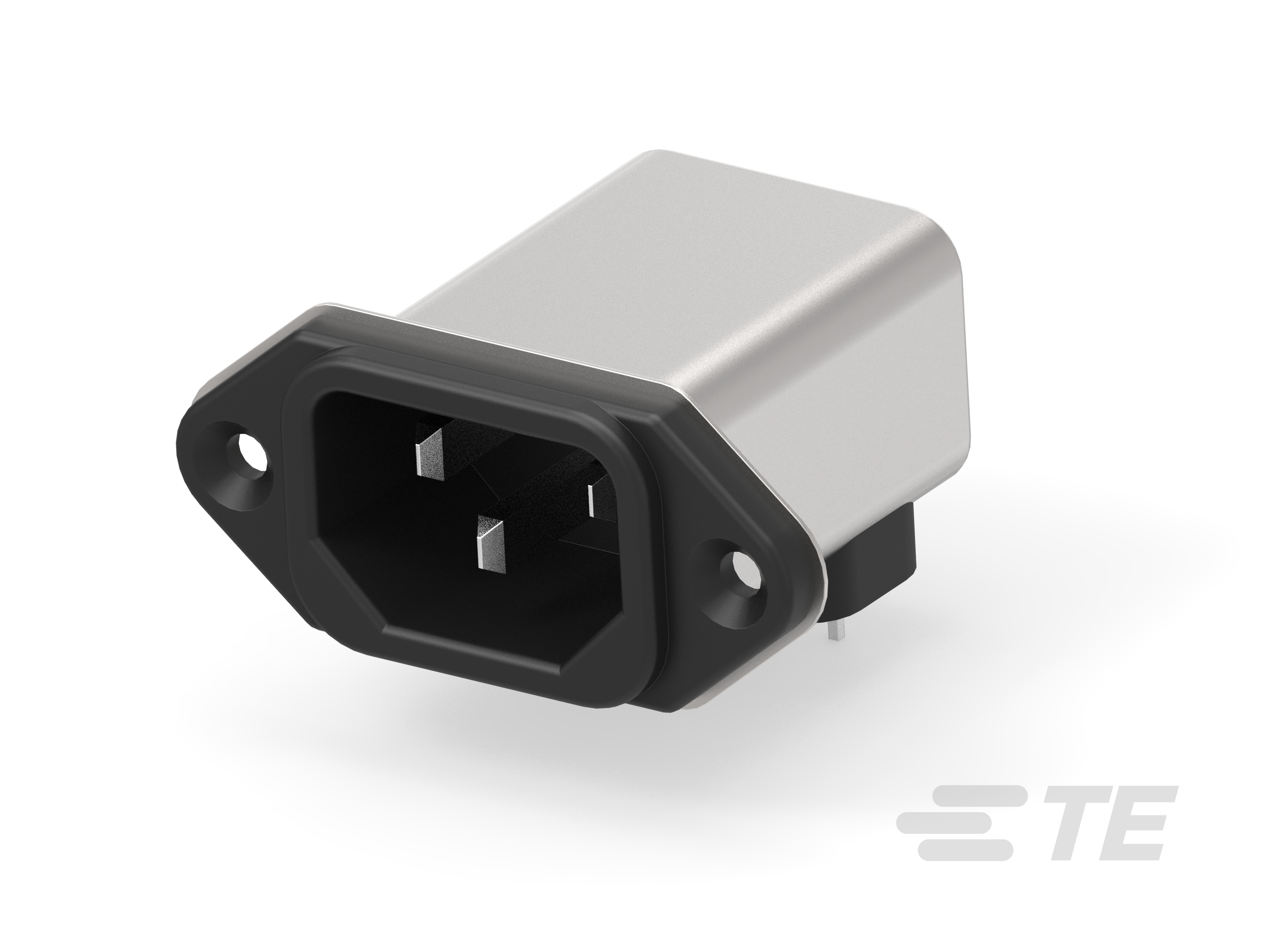

Power Line, Right Angle, 15A Current Rating, PCB Pins Output, Operating Voltage 250 VAC, Unfiltered, IEC 60320-1 C-14, Corcom SRB, Power Entry Modules
15SRBP
Power Line, Right Angle, 15A Current Rating, PCB Pins Output, Operating Voltage 250 VAC, Unfiltered, IEC 60320-1 C-14, Corcom SRB, Power Entry Modules
-
- Corcom
- Corcom SRB
- TE Internal #: 4-6609987-5
- TE Internal Description: 15SRBP=F8223H
- All IEC Filtered Inlets, Corcom SRB Series (45)
-
Filter Type : Power Line
-
Product Orientation : Right Angle
-
Leakage Current (Max) (120VAC, 60Hz) (µA): 2
-
Leakage Current (Max) (250VAC, 50Hz) (µA): 5
-
Current Rating (A): 15
Documents
Product Drawings
- Customer Drawing 15SRBP ENG_CD_15SRBP_0.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_4-6609987-5_C1.pdf 3D
- Customer View Model ENG_CVM_CVM_4-6609987-5_C1.3d_igs.zip English
- ENG_CVM_CVM_4-6609987-5_C1.3d_stp.zip English
- ENG_CVM_CVM_4-6609987-5_C1.2d_dxf.zip English
Datasheets & Catalog Pages
- 1654001_CORCOM_PRODUCT_GUIDE_SRB_SERIES ENG_CS_1654001_CORCOM_PRODUCT_GUIDE_SRB_SERIES_0611.pdf English
- Corcom Combined Selector Charts ENG_DS_1-1773858-6_Corcom_Selector_Charts_0618.pdf English
- 1-1654250-1_CORCOM_EMI_RFI_QRG ENG_DS_1-1654250-1_CORCOM_EMI_RFI_QRG_1011.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E61290_20181129_A.pdf English
