Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

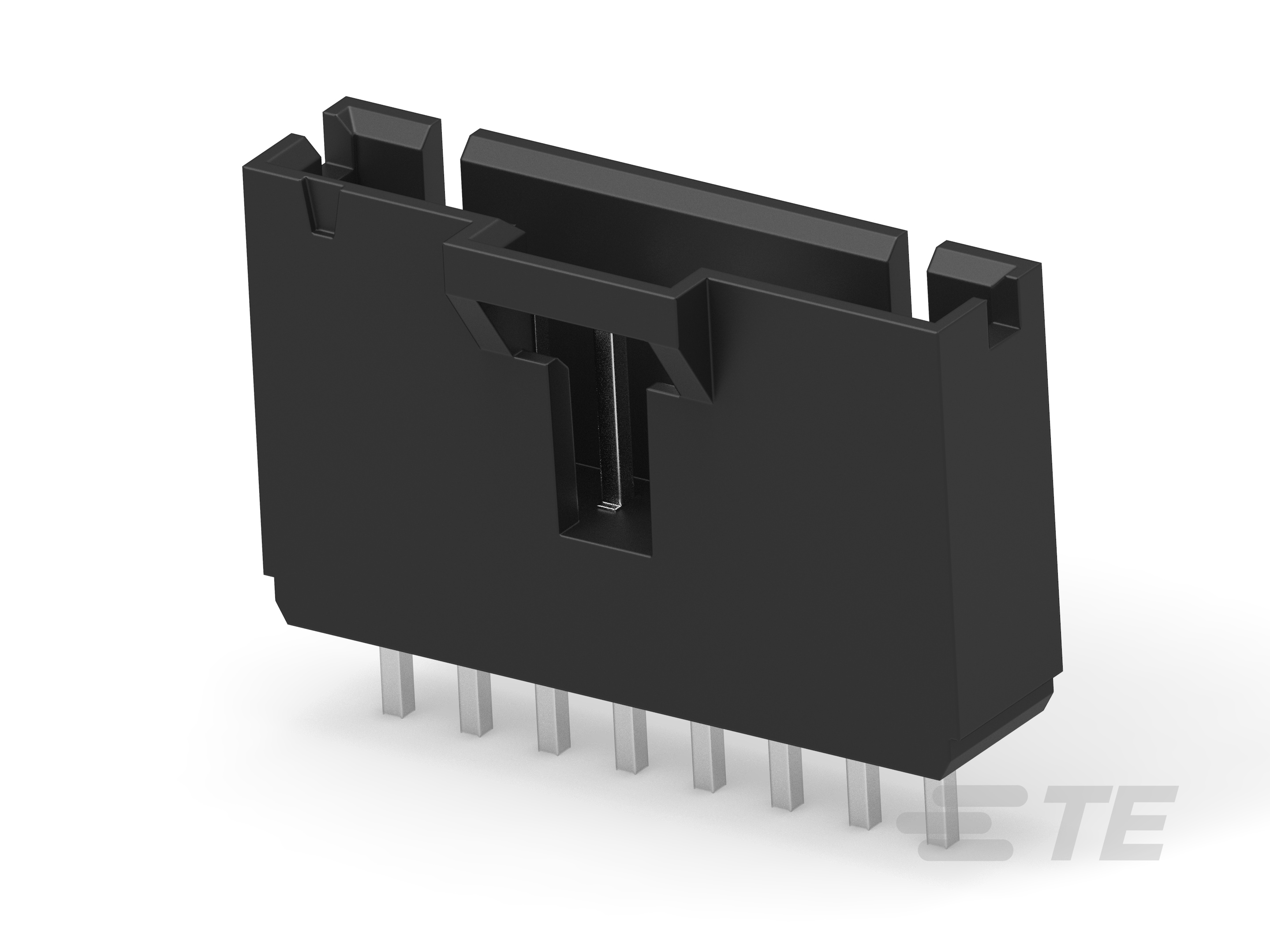

• PCB Connector Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• PCB Mount Orientation : Vertical

• Number of Positions : 8

• Number of Rows : 1

• Dielectric Withstanding Voltage (Max) (V): 600

• Insulation Resistance (MΩ): 5000

• Termination Resistance (mΩ): 15

• Primary Product Color : Black

• Contact Mating Area Plating Material Finish : Bright

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Brass

• Contact Mating Area Length : 5.84 mm [ .23 in ]

• Contact Shape & Form : Square

• PCB Contact Termination Area Plating Material Thickness : 2.54 µm [ 100 µin ]

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Mating Area Plating Material Thickness : 2.54 µm [ 100 µin ]

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Mating Area Plating Material : Tin (Sn)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 3

• Square Termination Post & Tail Dimension : .64 mm [ .025 in ]

• Termination Post & Tail Length : 3.3 mm [ .13 in ]

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention Type : Swaged Retention Tails

• Mating Alignment Type : Latched, Polarization

• Mating Retention : With

• Mating Retention Type : Hold-Down

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : Thermoplastic

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Connector Length : 22.86 mm [ .9 in ]

• Connector Height : 13.59 mm [ .535 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

• Circuit Application : Signal

• Compatible With Approved Standards Products : CSA LR7189, UL E28476

• UL Flammability Rating : UL 94V-0
