Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

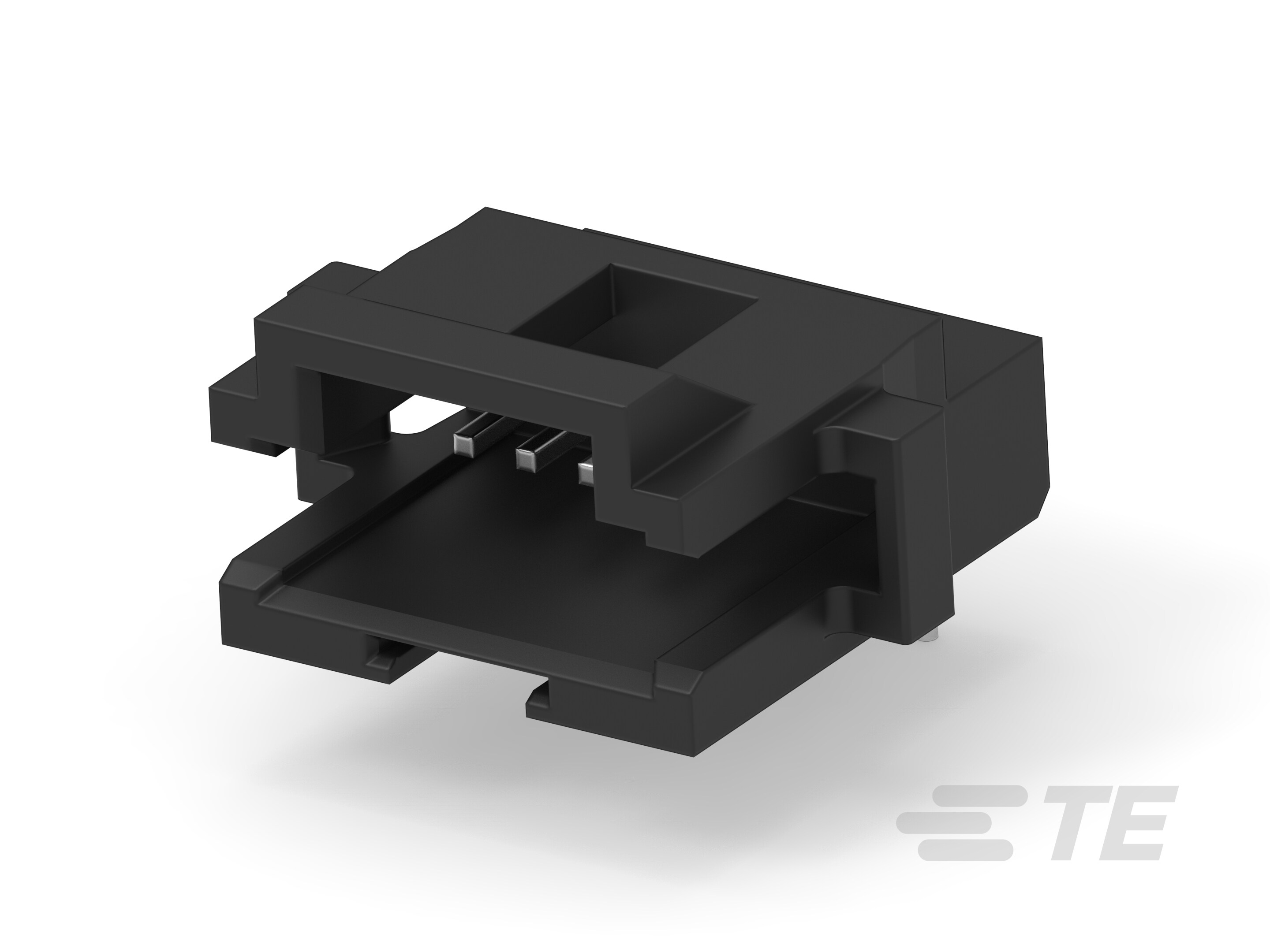

• PCB Connector Type : PCB Mount Header

• Connector System : Board-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Board-to-Board Configuration : Perpendicular

• Connector Contact Load Condition : Fully Loaded

• PCB Mount Orientation : Right Angle

• Number of Positions : 5

• Number of Rows : 1

• Dielectric Withstanding Voltage (Max) (VAC): 500

• Insulation Resistance (MΩ): 5000

• Operating Voltage (VAC): 30

• Connector Profile : Standard

• PCB Retention Feature Plating Material : Tin over Nickel

• Primary Product Color : Black

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Shape & Form : Rectangular

• PCB Contact Termination Area Plating Material Thickness : 3.81 – 6.35 µm [ 150 – 250 µin ]

• Mating Square Post Dimension : .38 mm [ .015 in ]

• Contact Mating Area Plating Material Thickness : .76 µm [ 30 µin ]

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Gold (Au)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 3.6

• Termination Post & Tail Length : 2.54 mm [ .1 in ]

• Termination Post & Tail Diameter : .38 mm [ .015 in ]

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention Type : Hold-Down Post

• Mating Alignment Type : Polarization

• Mating Retention : With

• Mating Retention Type : Latch

• PCB Mount Retention : With

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : Thermoplastic

• Centerline (Pitch) : 1.27 mm [ .05 in ]

• PCB Thickness (Recommended) : 1.57 mm [ .062 in ]

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Housing Temperature Rating : High

• Operating Temperature Range : -65 – 105 °C [ -85 – 221 °F ]

• Solder Process Feature : Board Standoff

• Circuit Application : Signal

• Compatible With Approved Standards Products : CSA LR7189, UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : CSA, UL

• UL Flammability Rating : UL 94V-0

• Packaging Quantity : 40

• Packaging Method : Box, Tube
