Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

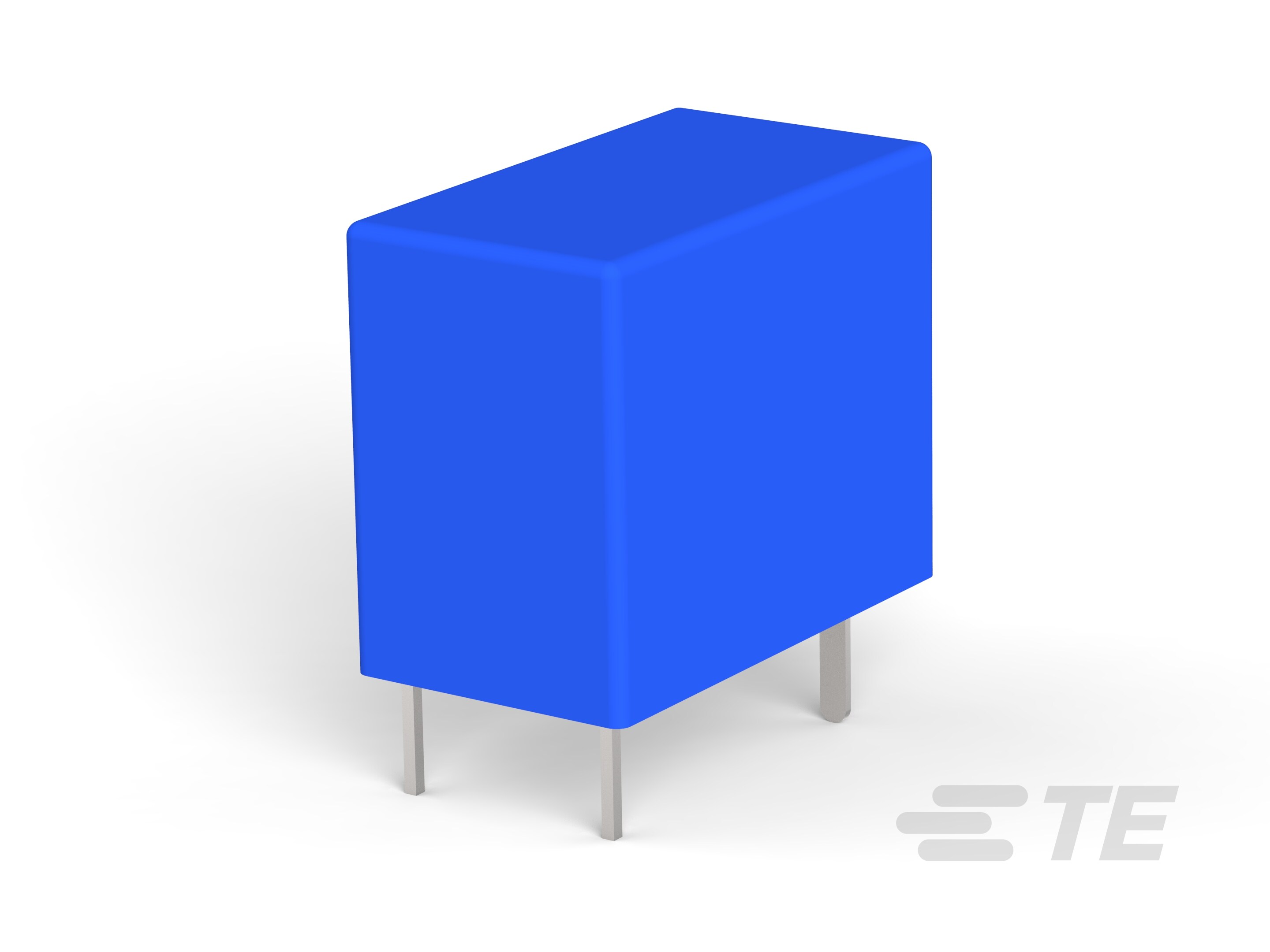

• Relay & Contactor Type : General Purpose Power Relay

• Coil Magnetic System : Monostable

• Current Type : DC

• Contact Arrangement : 1 Form A SPST-NO

• Coil Special Features : Sensitive Version, UL Coil Insulation Class B

• Contact Number of Poles : 1

• Contact Current Rating (A): 8

• Coil Voltage Rating (VDC): 9

• Contact Voltage Rating (VAC): 250

• Contact Voltage Rating (VDC): 30

• Coil Power Rating DC (W): .2

• Insulation Initial Dielectric Between Contacts & Coil (Vrms): 3000

• Coil Resistance (Ω): 405

• Contact Switching Load (Min) : 100mA @ 5V

• Contact Switching Voltage (Max) (VAC): 277

• Contact Switching Voltage (Max) (VDC): 30

• Insulation Initial Dielectric Between Open Contacts (Vrms): 750

• Contact Limiting Breaking Current (A): 8

• Contact Limiting Continuous Current (A): 8

• Contact Limiting Making Current (A): 8

• Contact Limiting Short-Time Current (A): 8

• Main Termination & Connection Type : Solder Pins

• Coil Termination & Connection Type : Solder Pins

• Product Mount Type : Printed Circuit Board

• Enclosure Type : Flux Resistant Automatic Soldering

• Product Weight : 9 g [ .318 oz ]

• Environmental Ambient Temperature (Max) : 70 °C [ 158 °F ]

• Environmental Category of Protection : RTII

• Height Class (Mechanical) (mm): 14 – 15

• Length Class (Mechanical) (mm): 16 – 20

• Width Class (Mechanical) (mm): 10 – 12

• EU RoHS Compliance : Compliant with Exemptions

• EU ELV Compliance : Compliant

• Environmental Ambient Temperature Class (°C): 50 – 70

• Contact Current Class (A): 16

• Coil Power Rating Class (W): .15 – .2

• Contact Material : AgSnO2

• Product Height : 14.7 mm [ .58 in ]

• Product Length : 18.2 mm [ .716 in ]

• Product Width : 10.2 mm [ .401 in ]

• Insulation Creepage Between Contact & Coil : 3.6 mm [ .141 in ]

• Insulation Clearance Between Contact & Coil : 3.2 mm [ .125 in ]
