Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

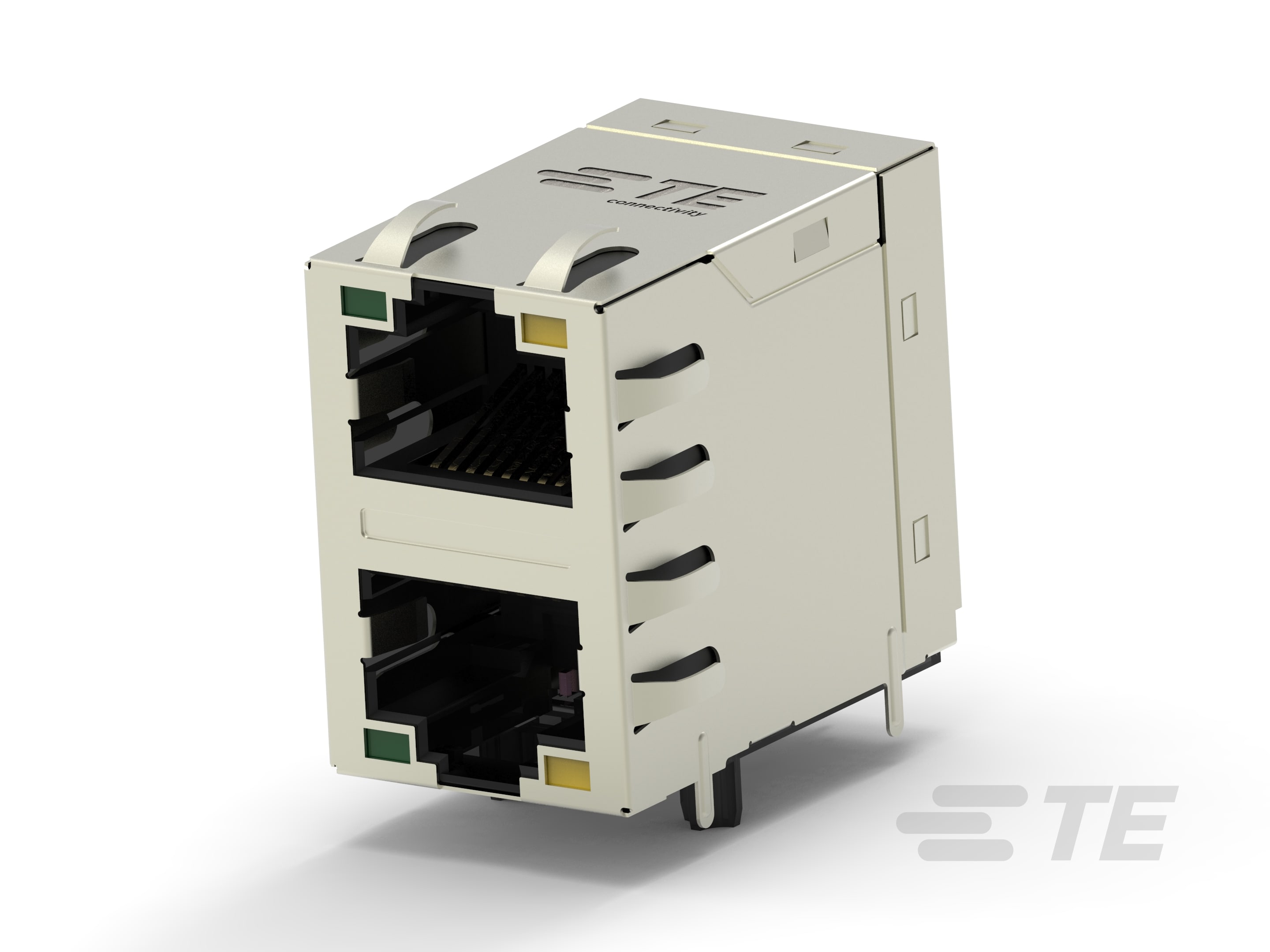

• Multiple Port Configuration : Stacked

• Number of Panel Ground Tabs : 10

• Panel Ground Location : Top and Side

• Number of PCB Ground Tabs : 6

• Port Configuration : Multiple Ports

• Port Matrix Configuration : 2 x 1

• Connector Contact Density : Standard

• Number of Positions : 8

• Number of Loaded Positions : 8

• PCB Mount Orientation : Right Angle

• Indicator Type : LED

• Shielded : Yes

• UL Flammability Rating : UL 94V-0

• Performance Category : Cat 5

• PCB Ground Tab Location (mm): -4.57, 15.49, 11.43

• PCB Ground Tab Location (in): -.18, .61, .45

• LED Color (Top Left) : Green

• LED Color (Top Right) : Yellow

• PCB Retention Feature Material : LCP

• Shield Material : Brass

• Shield Plating Finish : Matte

• Shield Plating Material : Nickel

• LED Color (Bottom Right) : Yellow

• Insulator Material : LCP

• LED Color (Bottom Left) : Green

• Modular Jack Latch Orientation : Inverted (Top) / Standard (Bottom)

• Connector Profile : Standard

• PCB Contact Termination Area Plating Material : Tin

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Gold

• Contact Base Material : Copper Alloy

• Contact Mating Area Plating Material Thickness : .76 µm [ 30 µin ]

• Packaging Quantity : 40

• Packaging Method : Tray

• Shield Panel Ground Type : Shield has bottom panel grounds.

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Data Rate (Mb/s): 100, 10

• PCB Mount Retention Type : Boardlock

• Modular Jack & Plug Interface Type : RJ45 with Integrated Magnetics

• Modular Jacks & Plugs Products : RJ Type Jacks & Plugs

• Modular Connector Style : Jack

• Grounding Options : PCB and Panel Ground

• Connector & Contact Terminates To : Printed Circuit Board

• Termination Method to PCB : Through Hole - Solder

• Mating Entry Location : Side

• Housing Color : Black

• Housing Material : LCP (Liquid Crystal Polymer)

• Connector Height : 25.55 mm [ 1.006 in ]
