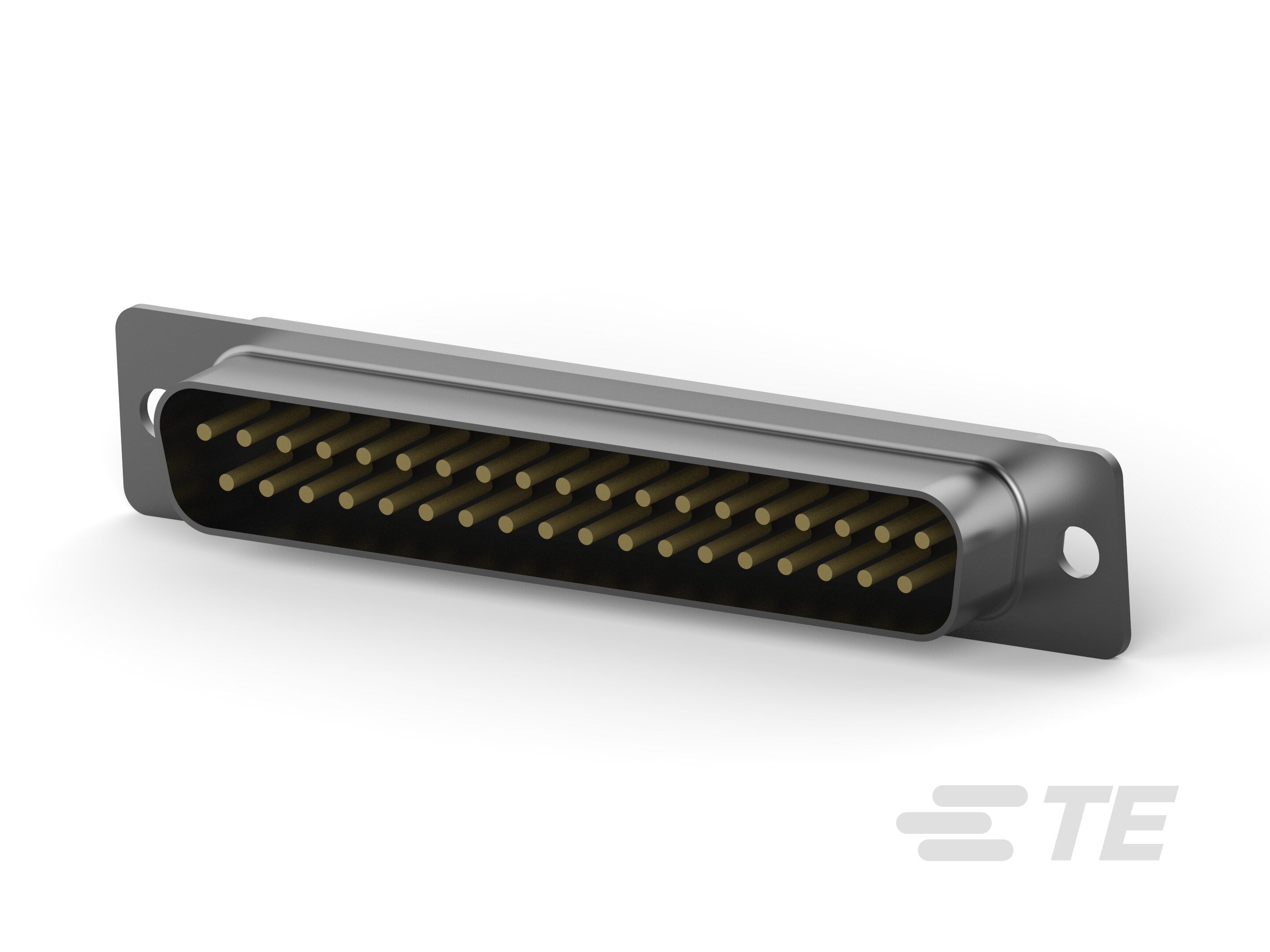

5-747916-2
Plug, Cable-to-Board, 37 Position, Size 20 Contact Size, 4 Shell Size, 2.79 mm [.11 in] Centerline, Wire & Cable, Signal, Solder D-Sub Connectors
5-747916-2
Plug, Cable-to-Board, 37 Position, Size 20 Contact Size, 4 Shell Size, 2.79 mm [.11 in] Centerline, Wire & Cable, Signal, Solder D-Sub Connectors
-
- AMPLIMITE
- TE Internal #: 5-747916-2
- TE Internal Description: 37 Plug Solder Cup, Gold Flash
- Alias #: 1364441
-
Connector & Housing Type : Plug
-
Connector System : Cable-to-Board
-
Number of Positions : 37
-
Contact Size : Size 20
-
Connector Shell Size : 4
Documents
Product Drawings
- PLUG ASSEMBLY, SOLDER CUP, SIZE 4, 37 POSN, HD-20, AMPLIMITE ENG_CD_747916_W.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_5-747916-2_T.pdf 3D
- Customer View Model ENG_CVM_CVM_5-747916-2_T.2d_dxf.zip English
- ENG_CVM_CVM_5-747916-2_T.3d_igs.zip English
- ENG_CVM_CVM_5-747916-2_T.3d_stp.zip English
Datasheets & Catalog Pages
- AMPLIMITE Subminiature D Connectors - Cable Connectors ENG_CS_82068_AMPLIMITE_Cable_Connectors_0412.pdf English
- AMPLIMITE Cable Connectors and Shielding Hardware Kits QRG ENG_DS_1-1773963-5_AMPLIMITE_Cable_Conn_QRG_1018.pdf English
Product Specifications
- Product Specification ENG_SS_108-40031_B.pdf English
- ENG_SS_108-5390_F1.pdf English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-9193_D.pdf English
Agency Approvals
- UL Report ENG_AAD_UL_E81956_19911202_A.pdf English
- CSA Certificate ENG_AAD_CSA_164196_6233_1088108_B.pdf English
