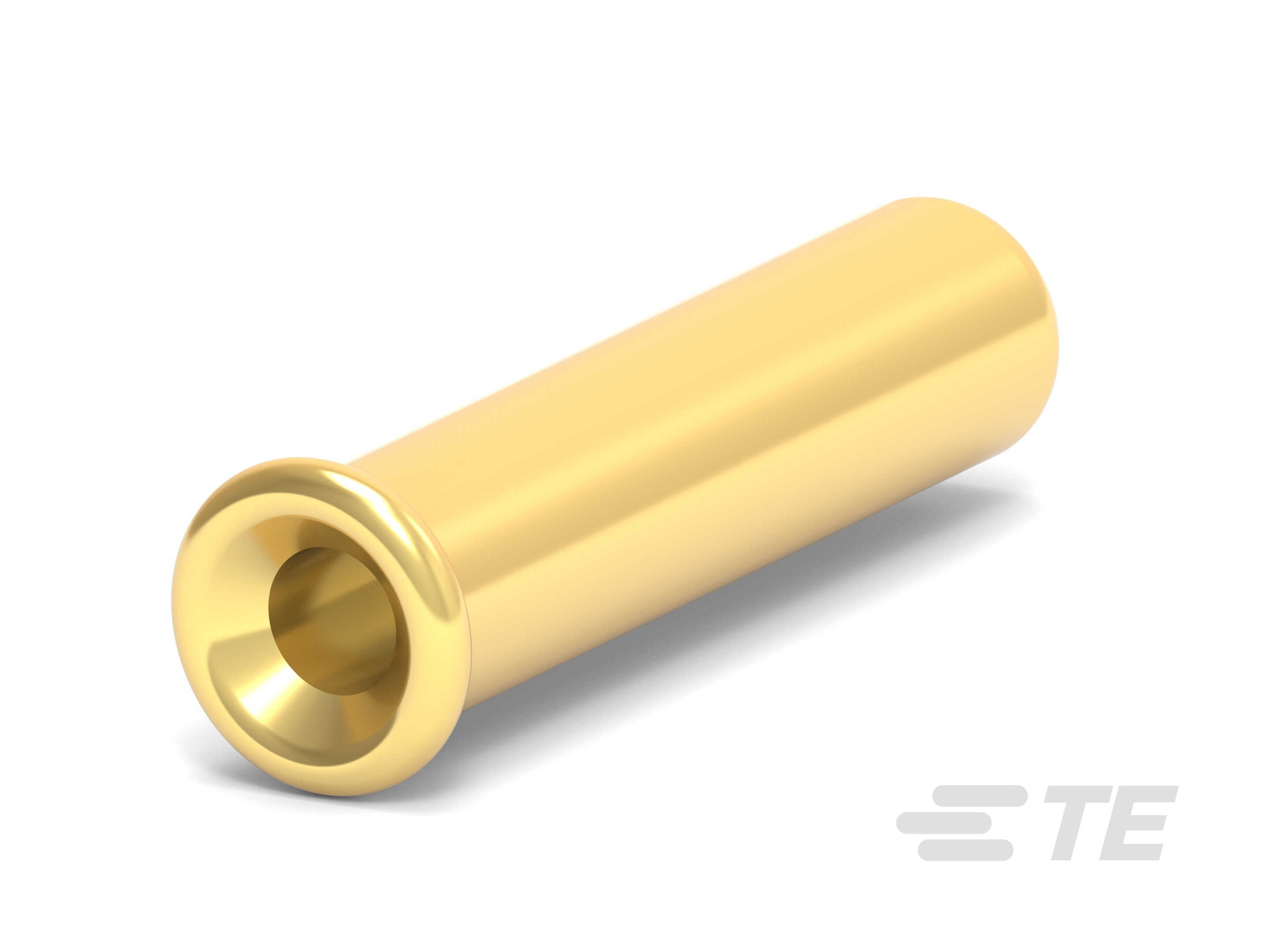

50864
Socket Length 6.53 mm [.257 in], PCB Hole Diameter 1.57 mm [.062 in], Closed Bottom, .326 – .518 mm² Wire Size, 22 – 20 AWG Wire Size, Pin Sockets
50864
Socket Length 6.53 mm [.257 in], PCB Hole Diameter 1.57 mm [.062 in], Closed Bottom, .326 – .518 mm² Wire Size, 22 – 20 AWG Wire Size, Pin Sockets
- TE Internal #: 50864
- TE Internal Description: SOCKET,MIN-SPR AU SER-3
- All Miniature Spring Sockets: Closed Bottom, Beryllium Copper, 5A (11)
-
Socket Length : 6.53 mm [ .257 in ]
-
PCB Hole Diameter : 1.57 mm [ .062 in ]
-
Socket Sleeve Style : Closed Bottom
-
Wire Size (AWG): 22 – 20
-
Wire Size (mm²): .326 – .518
Documents
Product Drawings
- MINIATURE SPRING SOCKET ASSEMBLY ENG_CD_50864_AD3.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_50864_T.pdf 3D
- Customer View Model ENG_CVM_CVM_50864_T.2d_dxf.zip English
- ENG_CVM_CVM_50864_T.3d_igs.zip English
- ENG_CVM_CVM_50864_T.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-13152_C.pdf English
- Product Specification ENG_SS_108-14008_H_108-14008.pdf English
