Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

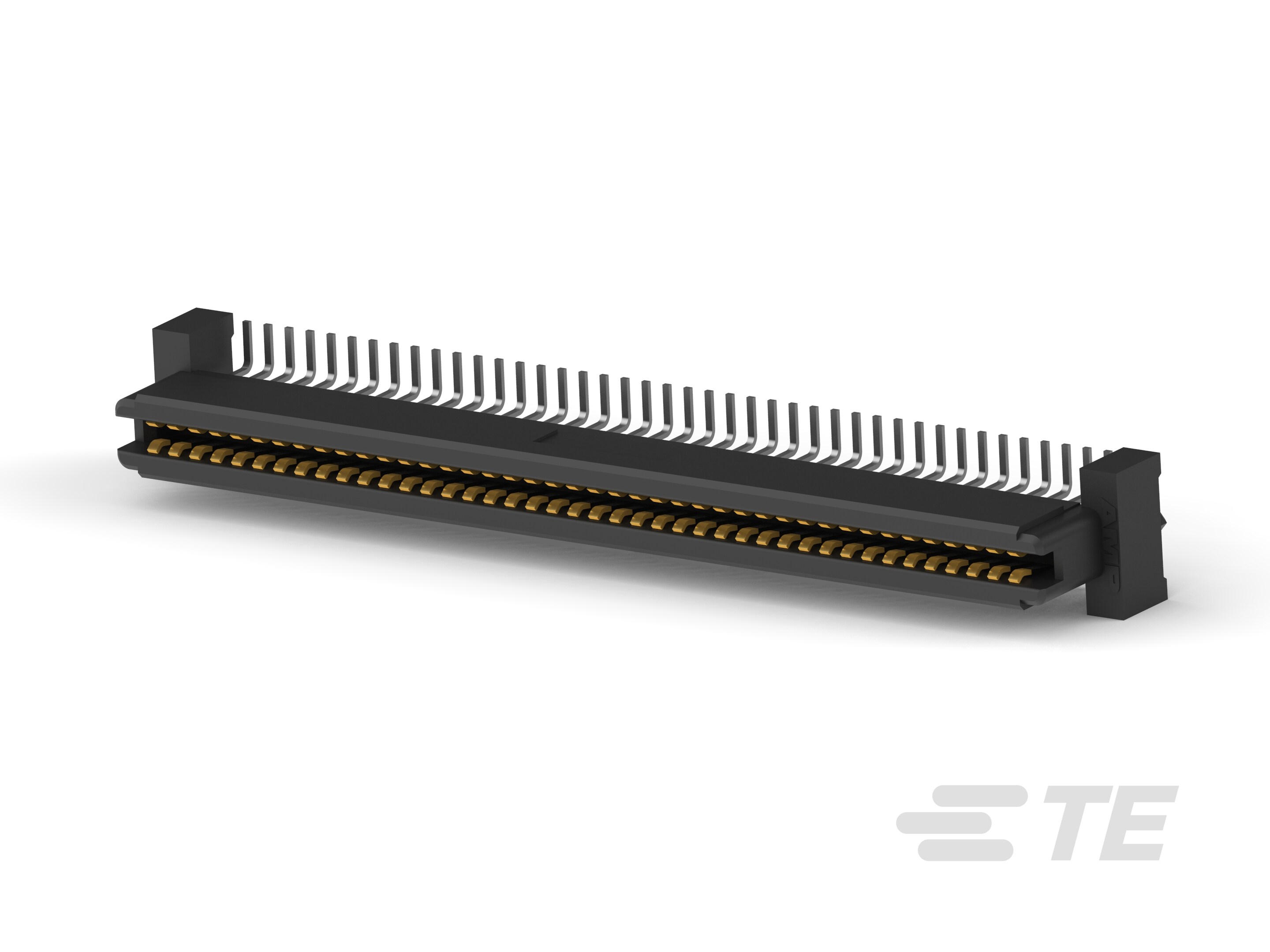

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Connector Assembly Type : PCB Mount Receptacle

• Connector System : Board-to-Board

• Number of Columns : 42

• Board-to-Board Configuration : Parallel

• Stackable : Yes

• Number of Positions : 84

• PCB Mount Orientation : Vertical

• Operating Voltage (VAC): 250

• Insulation Resistance (MΩ): 2

• Differential Signaling : Yes

• Primary Product Color : Black

• PCB Contact Termination Area Plating Material Finish : Matte

• PCB Contact Termination Area Plating Material Thickness : 3.81 µm [ 150 µin ]

• Mating Tab Thickness : .2 mm [ .008 in ]

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Base Material : Phosphor Bronze

• PCB Contact Termination Area Plating Material : Tin

• Contact Current Rating (Max) (A): .8

• Contact Type : Receptacle

• Mating Tab Width : .63 mm [ .024 in ]

• Contact Shape & Form : Square, Single Beam

• Contact Layout : Inline

• Contact Mating Area Plating Material Thickness : .00076 µm [ 30 µin ]

• Contact Mating Area Plating Material : Gold

• Rectangular Termination Post & Tail Width : .3 mm [ .012 in ]

• Rectangular Termination Post & Tail Thickness : .2 mm [ .008 in ]

• PCB Mount Alignment Type : Locating Posts

• PCB Mount Alignment : With

• PCB Mount Retention Type : None

• Mating Alignment Type : None

• PCB Mount Retention : Without

• Mating Alignment : Without

• Mating Retention : Without

• Centerline (Pitch) : 1 mm [ .039 in ]

• Housing Material : Thermoplastic

• Mating Entry Location : Top

• Stack Height (mm): 11, 12

• Stack Height (in): .472

• Connector Height : 7.37 mm [ .29 in ]

• Connector Length : 44.22 mm [ 1.74 in ]

• Connector Width : 3.81 mm [ 150 in ]

• Operating Temperature Range : -55 – 110 °C [ -67 – 230 °F ]

• Compatible With Approved Standards Products : UL E28476, CSA LR7189

• Compatible With Agency/Standards Products : UL, CSA

• UL Flammability Rating : UL 94V-0

• Industry Standard : IEEE 1386

• UL Rating : Listed
