Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

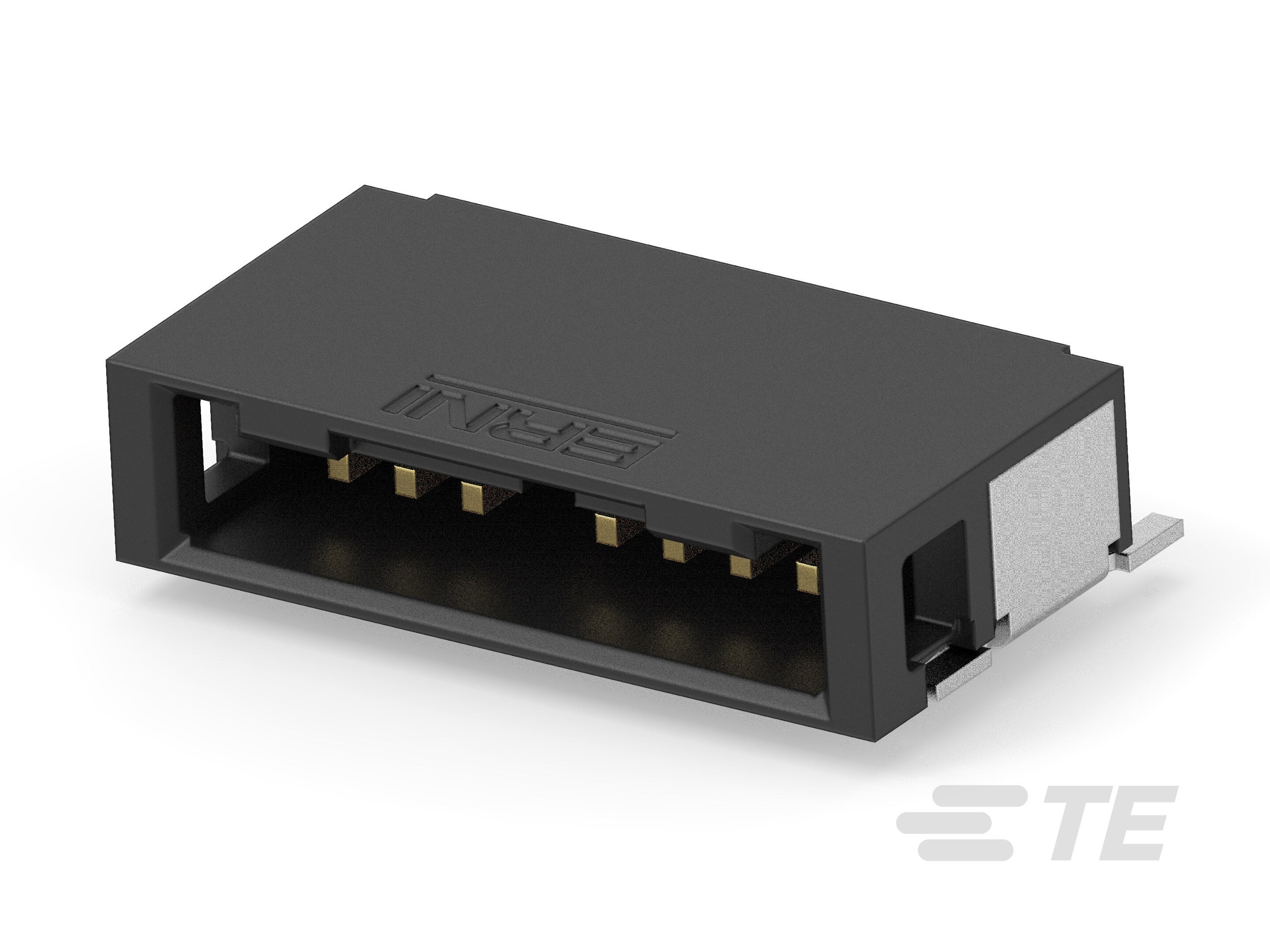

• Connector Shape : Rectangular

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Cable-to-Board

• Header Type : Fully Shrouded

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Loaded Positions : 8

• Connector Contact Load Condition : Fully Loaded

• Number of Columns : 8

• PCB Mount Orientation : Right Angle

• Number of Positions : 8

• Number of Rows : 1

• Housing Material : LCP

• Centerline (Pitch) : 1.27 mm [ .05 in ]

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Mating Area Length : 3.5 mm [ .138 in ]

• Contact Layout : Inline

• PCB Contact Termination Area Plating Material Thickness : 4 – 6 µm [ 157.48 – 236.22 µin ]

• Contact Mating Area Plating Material : Gold (Au)

• Contact Type : Pin

• Contact Current Rating (Max) (A): 9

• Mounting Alignment Feature Length : .75 mm [ .029 in ]

• PCB Mount Alignment Type : Locating Posts

• Mating Retention Type : Locking

• Mating Alignment Type : Polarization Groove

• Mating Retention : With

• PCB Mount Retention : With

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Shielded : No

• Circuit Application : Power & Signal

• Operating Temperature (Max) : 150 °C [ 302 °F ]

• Operating Temperature Range : -40 – 150 °C [ -40 – 302 °F ]

• Insulation Resistance (MΩ): 100

• Contact Resistance (mΩ): 5

• Primary Product Color : Black

• Termination Method to PCB : Surface Mount

• UL Flammability Rating : UL 94V-0

• Packaging Method : Tape & Reel
