Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

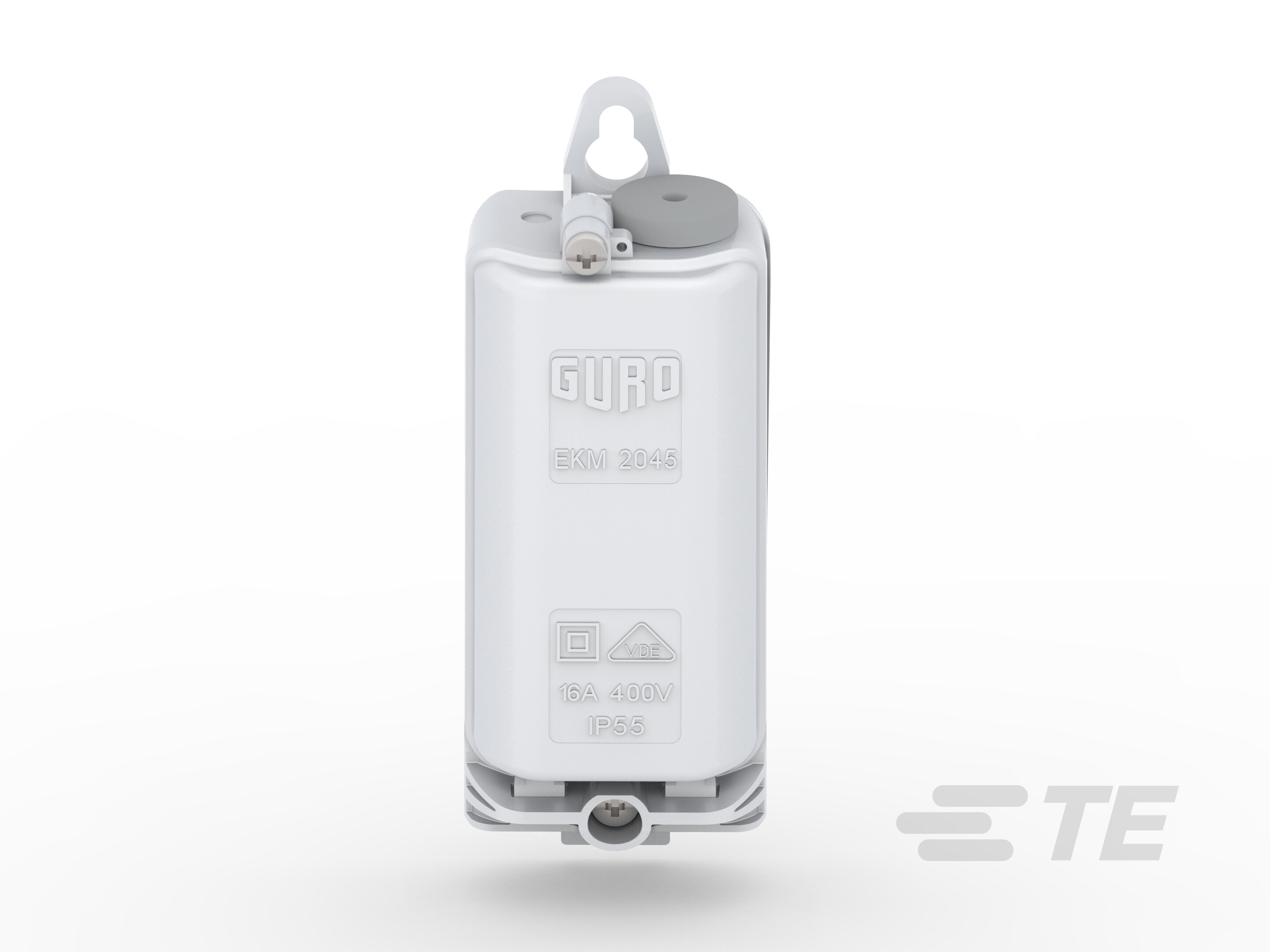

• Street Lighting Product Type : Street Lighting Fuse Box

• Fuse Type : D01

• Number of Luminaire Cables (Max) : 1

• Wires per Cable (Max) : 5

• Pinning : L1, L2, L3, (N), PE(N)

• Number of Fuses : 1

• Feeder Cable Terminal Type : Pillar

• Number of Underground Cables (Max) : 2

• Voltage Rating (V): 400

• Cover Color : Gray

• Pole Diameter (mm): 59, 70, 75, 84, 89, 90, 95, 96, 98, 100, 102, 104, 110, 115, 116, 120

• Door Width (mm): 58, 60, 66, 70, 75, 80, 85, 90, 100

• Compatible Cable Cross-Section (Max) (mm²): 4

• Door Height (mm): 150, 170, 180, 200, 210, 225, 240, 250, 260, 270, 280, 300, 350

• Operating Temperature Range (°C): -25 – 55

• UV-Stabilized : Yes

• Power Component Application Type : Inside Poles & Outdoors

• Compatible With Approved Standards Products : VDE 0660-505

• IP Rating : IP55
