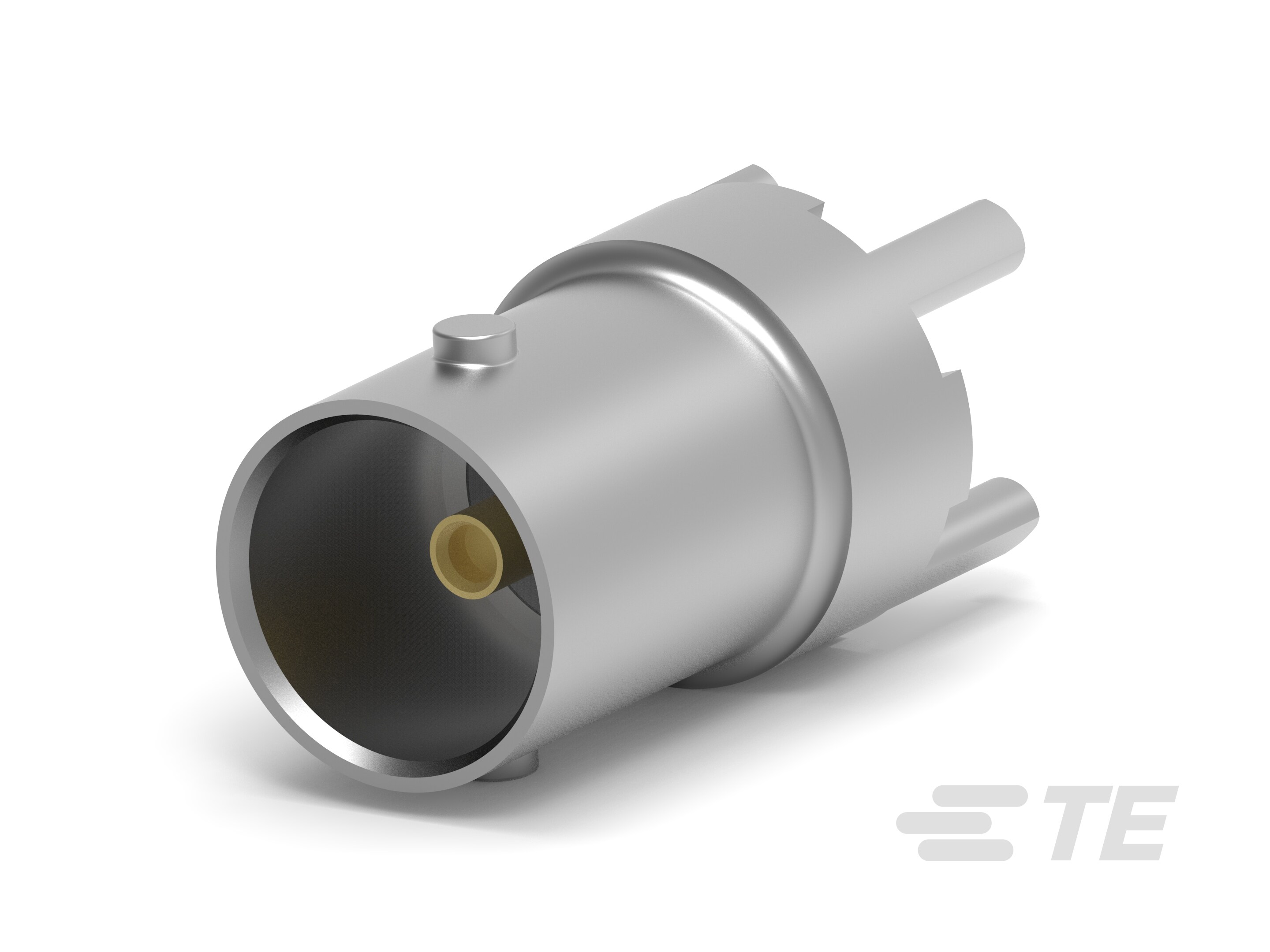

• RF Interface : BNC

• RF Connector Style : Jack

• Connector System : Cable-to-Board

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Mount Orientation : Vertical

• Number of Positions : 1

• Number of Coaxial Contacts : 1

• Impedance (Ω): 75

• Body Material : Zinc

• Body Plating Material : Tin

• RF Connector Center Contact Plating Thickness (µin): 1080

• RF Connector Center Contact Plating Material : Gold (Au)

• RF Connector Center Contact Material : Phosphor Bronze

• Termination Post & Tail Length : 4.44 mm [ .175 in ]

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention : Without

• RF Connector Coupling Mechanism : Bayonet

• Connector Mounting Type : Panel Mount

• RF Contact Captivation Method : Mechanical

• Detent : With

• Profile Height from PCB : 16.64 mm [ .655 in ]

• RF Connector Mated Outer Diameter (Approximate) : 14.53 mm [ .572 in ]

• Insulation Option : Uninsulated

• Operating Frequency (GHz): 4

• Packaging Method : Bag
