Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

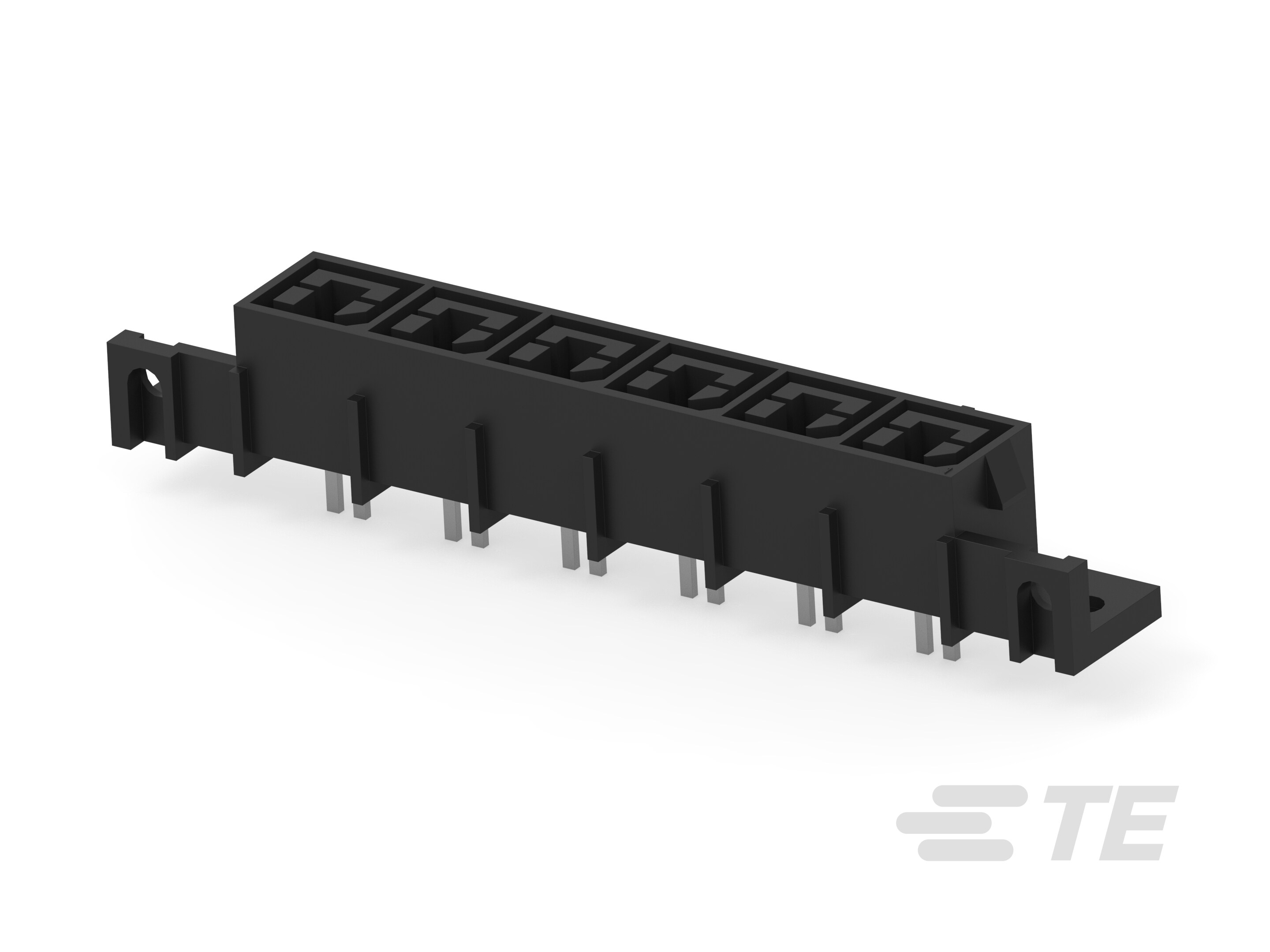

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Type : PCB Mount Receptacle

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Connector Contact Load Condition : Fully Loaded

• Number of Power Positions : 6

• Number of Loaded Positions : 6

• Number of Columns : 6

• PCB Mount Orientation : Vertical

• Number of Positions : 6

• Number of Rows : 1

• Operating Voltage (VDC): 600

• Operating Voltage (VAC): 600

• Primary Product Color : Black

• Contact Mating Area Plating Material Finish : Matte

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Layout : Inline

• Contact Shape & Form : Dual Beam

• PCB Contact Termination Area Plating Material Thickness : 3.81 µm [ 150 µin ]

• Contact Mating Area Plating Material Thickness : 3.81 µm [ 150 µin ]

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Tin (Sn)

• Contact Type : Tab

• Contact Current Rating (Max) (A): 30

• Termination Post & Tail Length : 4.9 mm [ .193 in ]

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Alignment Type : Polarization

• PCB Mount Retention Type : Mounting Ears

• Mating Alignment Type : Polarization

• Mating Retention : With

• Mating Retention Type : Locking Tab

• Panel Mount Feature : Without

• PCB Mount Retention : With

• PCB Mount Alignment : With

• Connector Mounting Type : Board Mount

• Mating Alignment : With

• Housing Material : Polyphthalamide

• Mating Entry Location : Top

• Centerline (Pitch) : 11.18 mm [ .44 in ]

• Connector Length : 91.32 mm [ 3.595 in ]

• Connector Height : 14.43 mm [ .568 in ]

• PCB Thickness (Recommended) : 1.57 – 3.18 mm [ .062 – .125 in ]

• Connector Width : 12.73 mm [ .501 in ]

• Operating Temperature (Max) : 105 °C [ 221 °F ]

• Operating Temperature Range : 0 – 105 °C [ 32 – 221 °F ]

• Circuit Application : Power

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : CSA, UL

• UL Flammability Rating : UL 94V-0
