Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

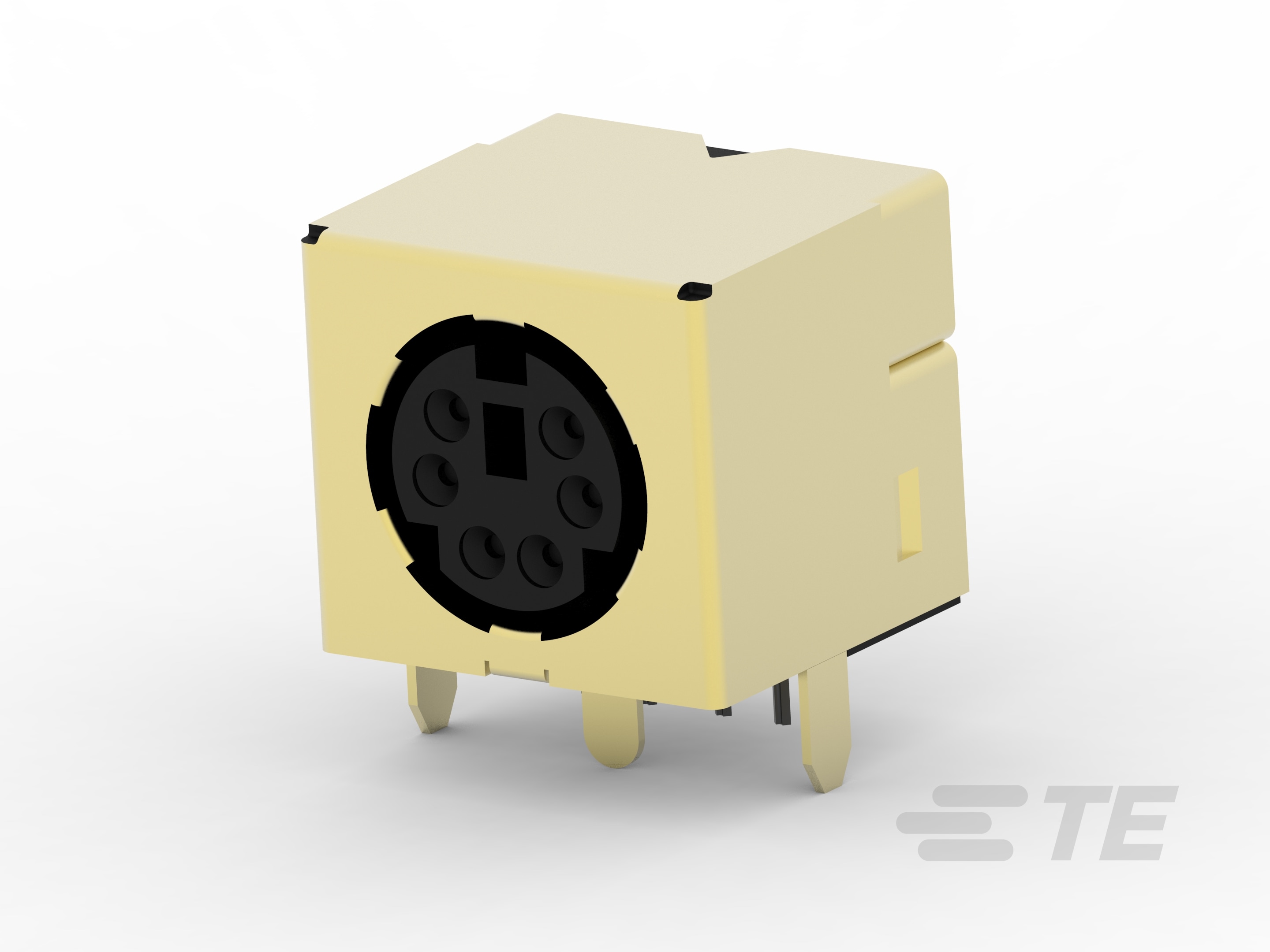

• Circular DIN Connector Type : Mini DIN

• Connector System : Wire-to-Board

• Connector & Contact Terminates To : Printed Circuit Board

• PCB Mount Orientation : Right Angle

• Number of Positions : 6

• Connector Contact Load Condition : Fully Loaded

• Operating Voltage (VAC): 30

• Primary Product Color : Black

• Panel Ground Feature Type : None

• Shield Material : Copper Alloy

• Shield Plating Material : Tin

• Shield Plating Finish : Bright

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Mating Area Plating Material : Gold Flash

• Contact Layout : Staggered

• PCB Contact Termination Area Plating Material Thickness (µm): 3.05, 4.02

• PCB Contact Termination Area Plating Material Thickness (µin): 170

• Contact Shape & Form : Tuning Fork

• PCB Contact Termination Area Plating Material Finish : Matte

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Contact Underplating Material : Nickel

• Contact Current Rating (Max) (A): .5

• Termination Post & Tail Length : 3.18 mm [ .125 in ]

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Alignment Type : Hold-Down

• PCB Mount Alignment : With

• Mating Alignment : With

• Panel Mount Feature Type : Screw Nut

• Panel Mount Feature : With

• Mating Alignment Type : Polarization

• PCB Mount Retention : Without

• PCB Mount Retention Type : Hold-Down Post

• Connector Mounting Type : Board Mount

• Housing Material : Thermoplastic

• Centerline (Pitch) : 6.5 mm [ .26 in ]

• Connector Height : 12.83 mm [ .5 in ]

• PCB Thickness (Recommended) : 2.68 mm [ .11 in ]

• Product Length : 16.51 mm [ .65 in ]

• Product Width : 14 mm [ .55 in ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Shielded : Yes

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
