Please review product documents or contact us for the latest agency approval information.

• Solder Process : Wave Solder

• Current Type : DC

• Coil Magnetic System : Monostable

• Coil Special Features : UL Coil Insulation Class F

• Contact Number of Poles : 3

• Contact Arrangement : 3 Form C 3PDT-CO

• Coil Resistance (Ω): 777

• Contact Switching Load (Min) : 10mA @ 12V

• Contact Switching Voltage (Max) (VAC): 400

• Insulation Initial Dielectric Between Adjacent Contacts (Vrms): 2500

• Insulation Initial Dielectric Between Open Contacts (Vrms): 1200

• Contact Limiting Breaking Current (A): 10

• Contact Limiting Making Current (A): 20

• Contact Limiting Short-Time Current (A): 300

• Contact Current Rating (A): 10

• Coil Voltage Rating (VDC): 24

• Contact Voltage Rating (VAC): 240

• Coil Power Rating DC (W): .741

• Insulation Initial Dielectric Between Contacts & Coil (Vrms): 2500

• Product Weight : 30 g [ 1.058 oz ]

• Enclosure Type : Flux Resistant Automatic Soldering

• Environmental Category of Protection : RTII

• Operating Temperature Range : -40 – 70 °C [ -40 – 158 °F ]

• Environmental Ambient Temperature (Max) : 70 °C [ 158 °F ]

• Contact Current Class (A): 5 – 10, 10 – 20

• Coil Power Rating Class (W): .6 – .8

• Height Class (Mechanical) (mm): 25 – 30, 30 – 40

• Length Class (Mechanical) (mm): 25 – 30

• Width Class (Mechanical) (mm): 20 – 25

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Packaging Method : Carton & Tube

• Product Height : 30 mm [ 1.18 in ]

• Product Length : 28 mm [ 1.1 in ]

• Product Width : 22.5 mm [ .885 in ]

• Insulation Creepage Between Contact & Coil : 4 mm [ .157 in ]

• Insulation Clearance Between Contact & Coil (mm): 3

• Contact Material : AgNi90/10

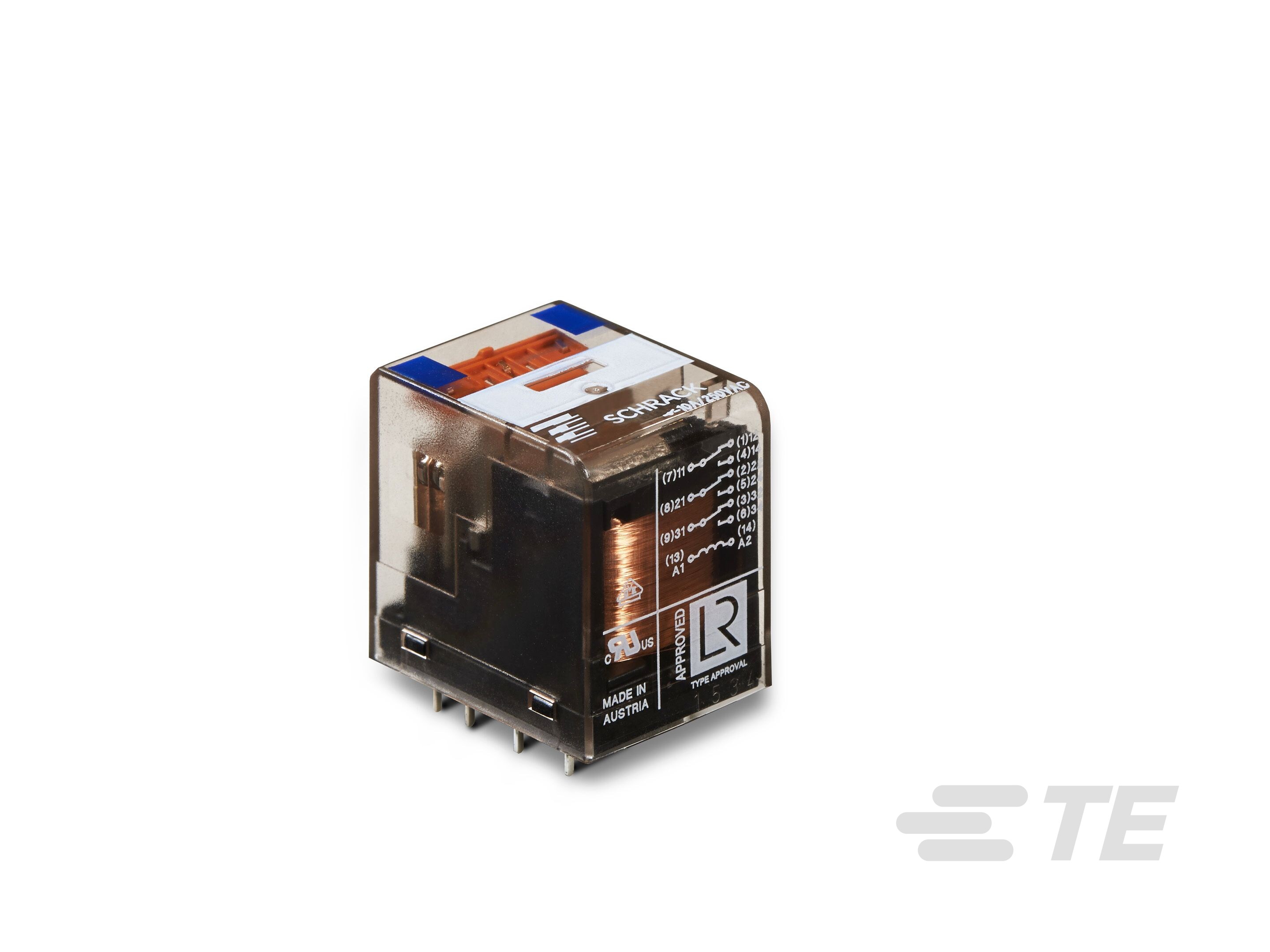

• Relay & Contactor Type : General Purpose Power Relay

• Main Termination & Connection Type : Solder Pins

• Coil Termination & Connection Type : Solder Pins
