Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

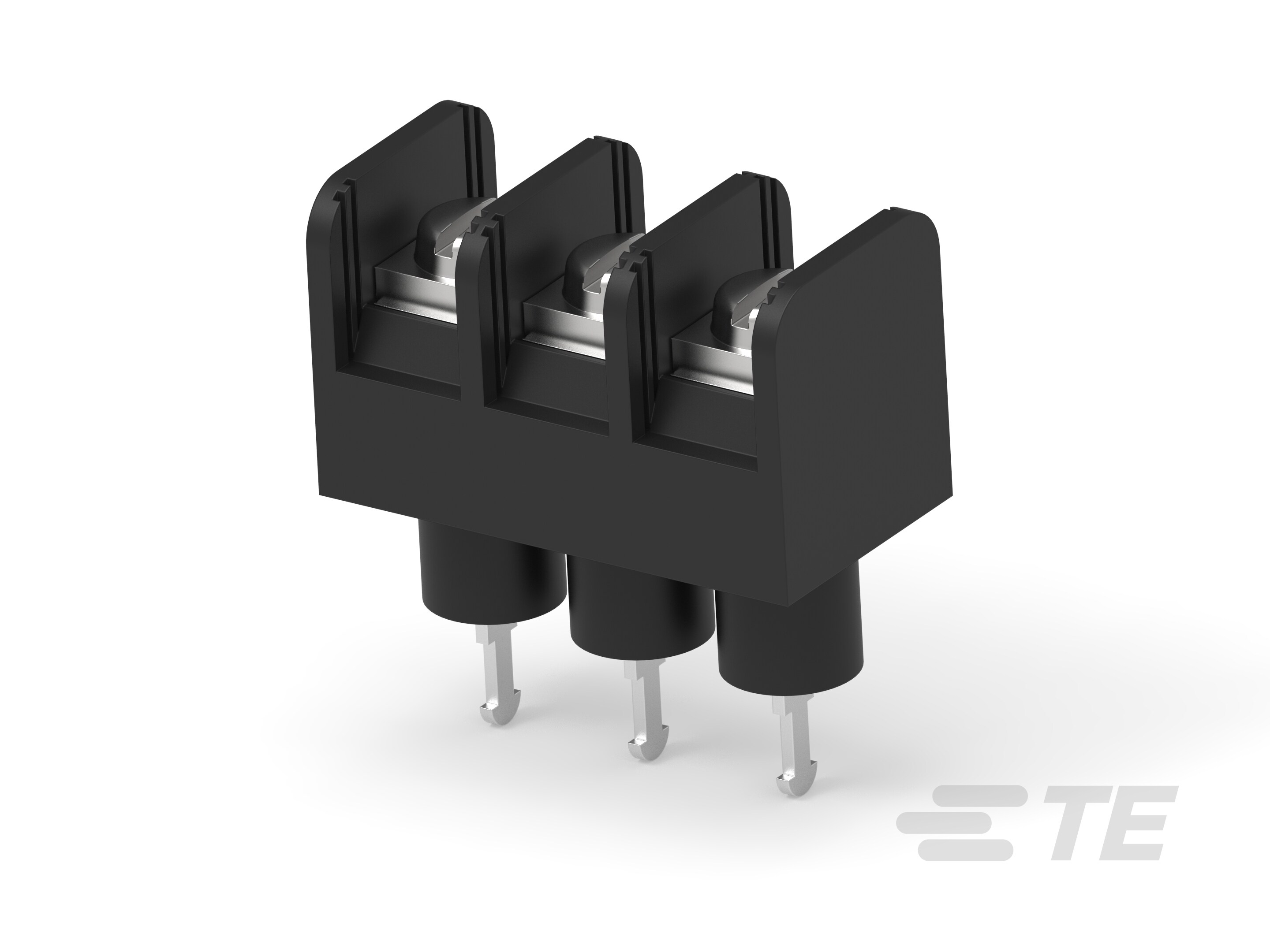

• Number of Levels : 1

• Number of Positions : 3

• Number of Rows : 1

• Product Orientation : Vertical

• Primary Product Color : Black

• Barrier Strip Style : Dual Barrier

• Block Style : Insulated Turret

• Connector System : Wire-to-Board

• Connector & Contact Terminates To : Wire & Cable

• Housing Material : Thermoplastic

• Centerline (Pitch) : 9.53 mm [ .375 in ]

• Product Length : 30.12 mm [ 1.186 in ]

• Wire Size (AWG): 22 – 12

• Wire Size (mm²): .326 – 3.31

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Copper Alloy

• Contact Current Rating (Max) (A): 20, 5

• Screw Head Type : Combo Phil-Slot

• Thread Size : 6-32

• Screw Material : Steel

• Screw Plating Material : Zinc

• Mounting Options : None

• Top Termination Type : Wire Clamp Combo Head

• Connector Mounting Type : Panel Mount

• Circuit Application : Power

• Packaging Quantity : 150

• Packaging Method : Package

• UL Flammability Rating : UL 94V-0

• Bottom Termination Type : Solder Turret

• Operating Voltage (V): 300, 600
