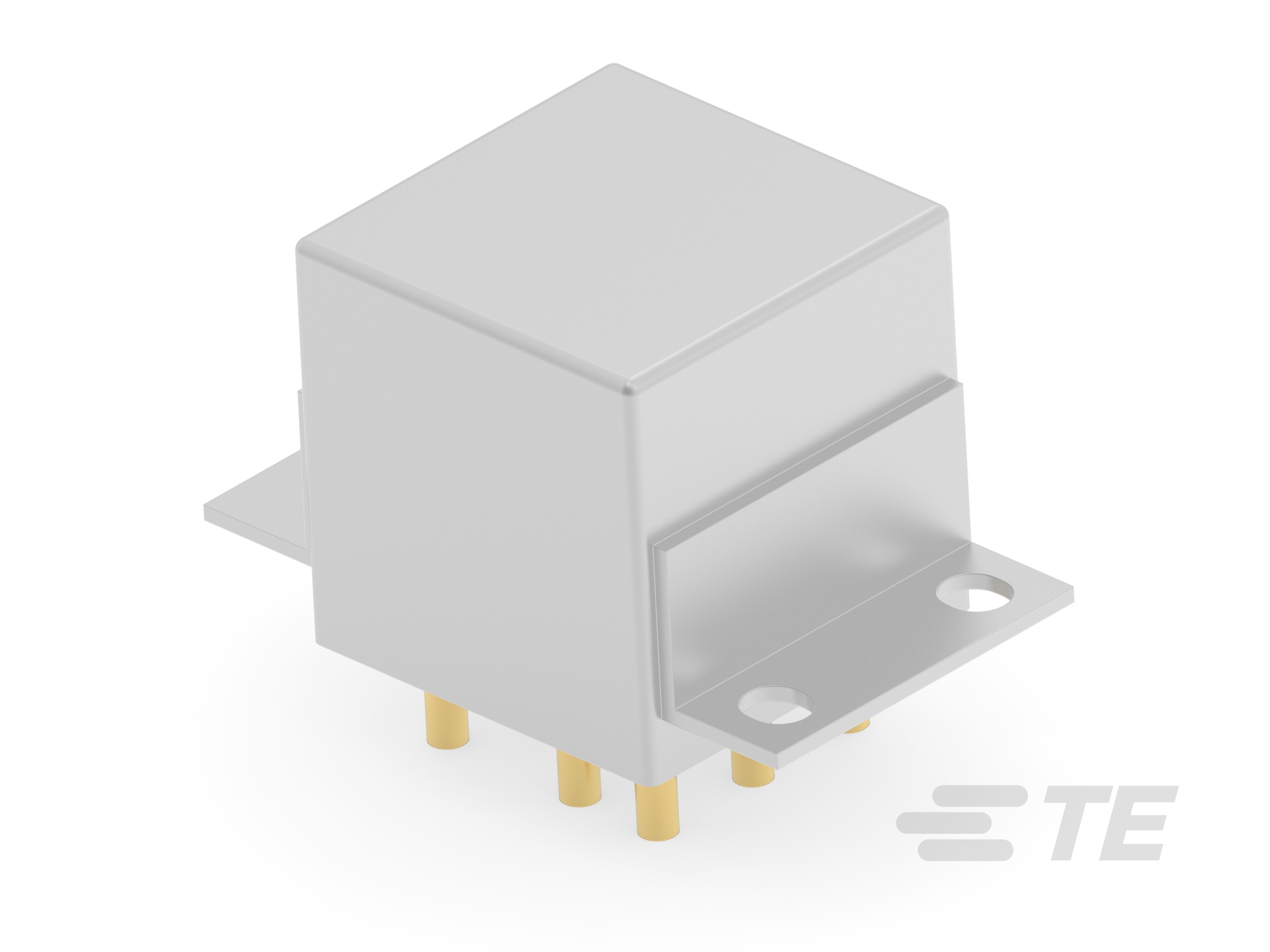

FCAC-325-AV8
General Purpose Power Relay, AC, Polarized, Monostable, 3 Form X 3PST-NO-DM, 25 A Contact Rating, 115 VAC Coil Voltage, CII FCAC-325 Series
FCAC-325-AV8
General Purpose Power Relay, AC, Polarized, Monostable, 3 Form X 3PST-NO-DM, 25 A Contact Rating, 115 VAC Coil Voltage, CII FCAC-325 Series
-
- CII
- CII FCAC-325 Series
- TE Internal #: 6-1617806-8
- TE Internal Description: FCAC-325-AV8=RELAY, 3PST W/AUX
-
Relay & Contactor Type : General Purpose Power Relay
-
Current Type : AC
-
Coil Magnetic System : Polarized, Monostable
-
Contact Arrangement : 3 Form X 3PST-NO-DM
-
Contact Current Rating (A): 25
Documents
Product Drawings
- FCAC-325-AV8=RELAY, 3PST W/AUX ENG_CD_FCAC-325-AV8_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_6-1617806-8_B.pdf 3D
- Customer View Model ENG_CVM_CVM_6-1617806-8_B.2d_dxf.zip English
- ENG_CVM_CVM_6-1617806-8_B.3d_igs.zip English
- ENG_CVM_CVM_6-1617806-8_B.3d_stp.zip English
Datasheets & Catalog Pages
- 5-1773450-5_sec5_FCAC-325 ENG_CS_5-1773450-5_sec5_FCAC-325_0313_5-1773450-5_Sec5_FCAC-325.pdf English
