Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

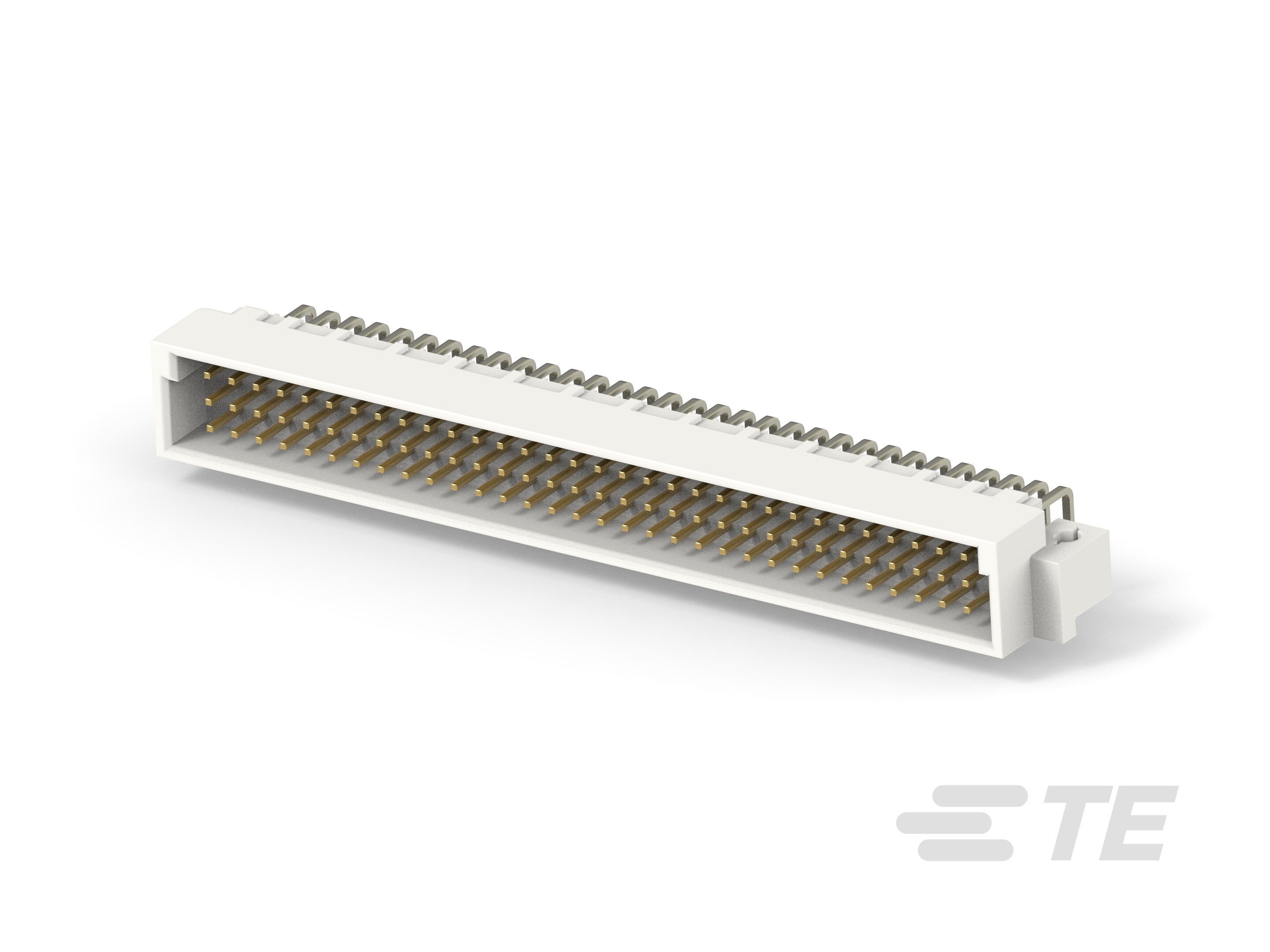

• PCB Connector Type : PCB Mount Header

• Connector System : Board-to-Board

• Header Type : Unshrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Board-to-Board Configuration : Perpendicular

• PCB Mount Orientation : Right Angle

• Number of Positions : 96

• Number of Rows : 3

• Primary Product Color : Black

• Contact Mating Area Plating Material Thickness : .762 µm [ 30 µin ]

• Contact Mating Area Plating Material : Gold Flash

• Contact Type : Pin

• Contact Current Rating (Max) (A): 2

• Rectangular Termination Post & Tail Thickness (mm): 2

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : Without

• Housing Material : Thermoplastic

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
