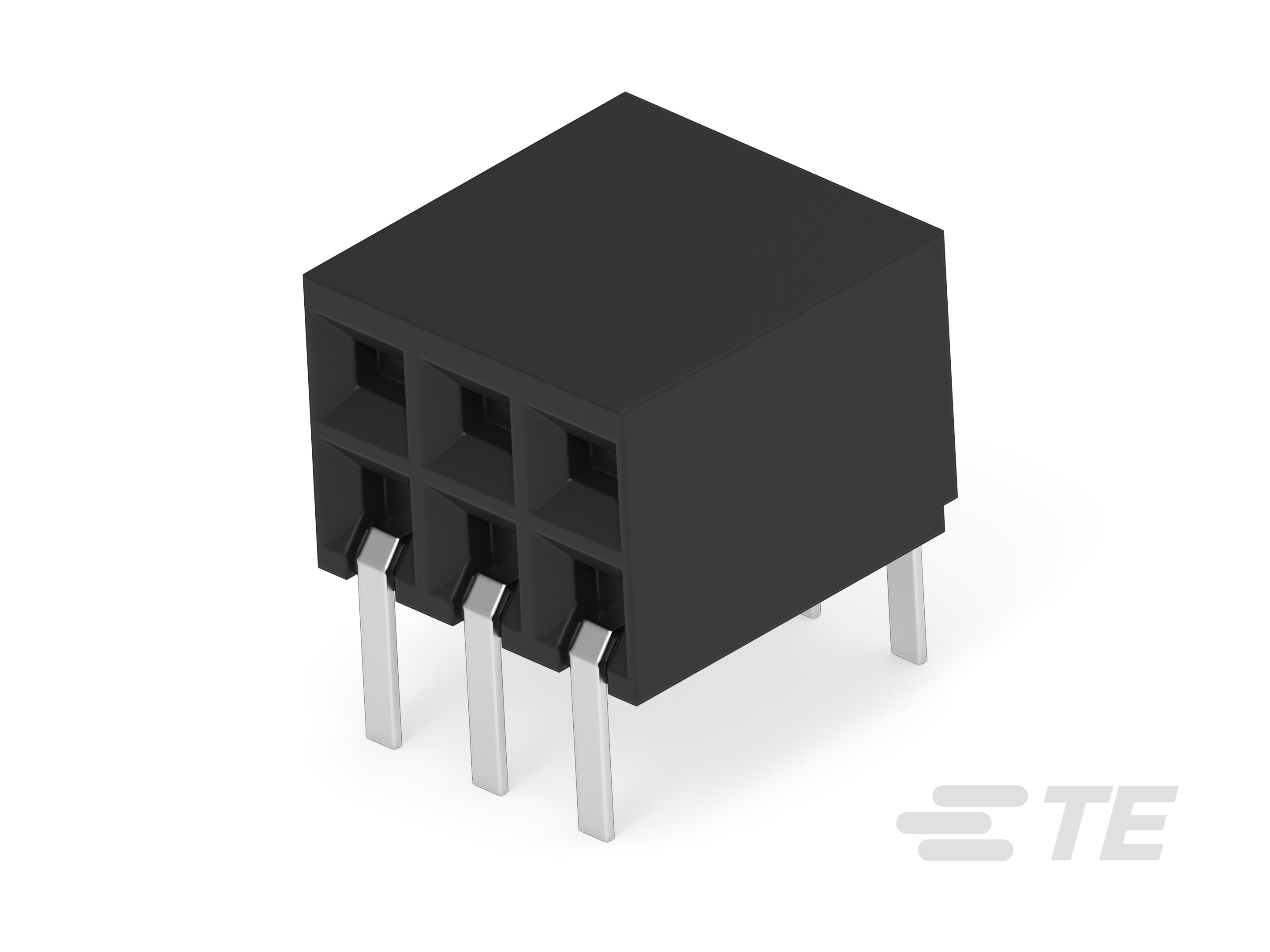

• Connector & Contact Terminates To : Printed Circuit Board

• Sealable : No

• PCB Connector Assembly Type : PCB Mount Receptacle

• Applied Pressure : High, Standard

• Connector System : Board-to-Board

• Number of Rows : 2

• Stackable : Yes

• Number of Positions : 6

• PCB Mount Orientation : Right Angle, Horizontal

• Operating Voltage (VAC): 333

• Insulation Resistance (MΩ): 5000

• Primary Product Color : Black

• Connector Profile : Standard

• PCB Contact Termination Area Plating Material Thickness (µm): 3.81 – 7.62

• Contact Protection Type : Closed Entry Housing

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Base Material : Phosphor Bronze

• PCB Contact Termination Area Plating Material : Tin

• Contact Current Rating (Max) (A): 2

• Contact Type : Socket

• Contact Shape & Form : Short Point

• Contact Mating Area Plating Material Thickness : .762 µm [ 30 µin ]

• Contact Mating Area Plating Material : Gold

• Termination Post & Tail Length : 2.92 mm [ .115 in ]

• Rectangular Termination Post & Tail Width : .69 mm [ .027 in ]

• Rectangular Termination Post & Tail Thickness : .2 mm [ .008 in ]

• Connector Mounting Type : Board Mount

• PCB Mount Alignment : Without

• PCB Mount Retention : Without

• Mating Alignment : Without

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Housing Material : Polyester - GF

• Mating Entry Location : Side

• Stack Height : 8.13 mm [ .32 in ]

• Connector Height : 6.05 mm [ .238 in ]

• Row-to-Row Spacing (mm): 2.54, 7.87

• Row-to-Row Spacing (in): .31

• PCB Thickness (Recommended) : 1.4 – 2.4 mm [ .055 – .094 in ]

• Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]

• Housing Temperature Rating : High

• Solder Process Feature : Board Standoff

• Circuit Application : Signal

• Compatible With Approved Standards Products : CSA LR7189, UL E28476

• UL Flammability Rating : UL 94V-0
