This product is not currently available. For more information, including distributor inventory, please contact us.

640385-7

Active

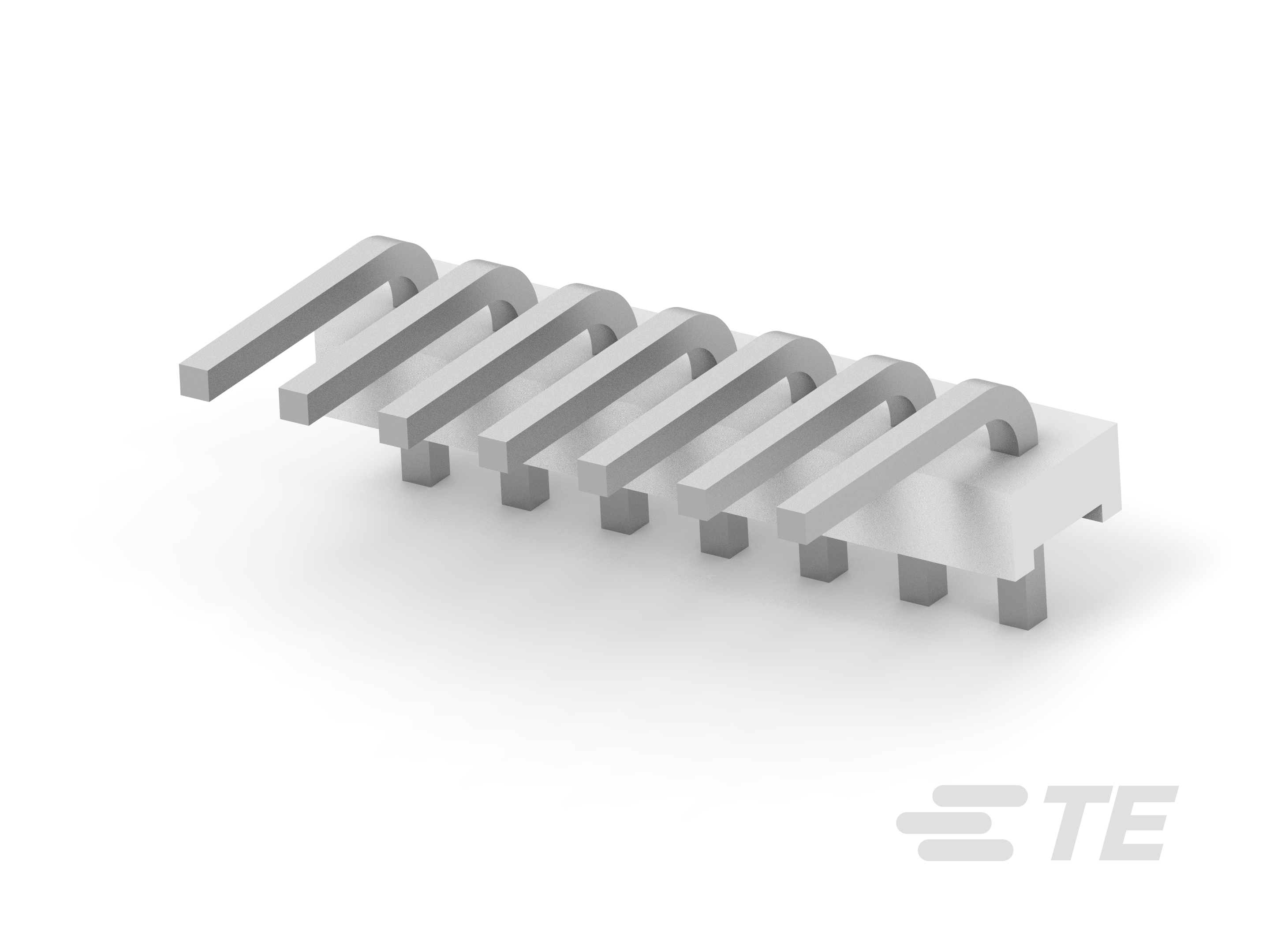

PCB Mount Header, Right Angle, Wire-to-Board, 7 Position, 3.96 mm [.156 in] Centerline, Unshrouded, Tin (Sn), Through Hole - Solder, Power, MTA 156

640385-7

Active

PCB Mount Header, Right Angle, Wire-to-Board, 7 Position, 3.96 mm [.156 in] Centerline, Unshrouded, Tin (Sn), Through Hole - Solder, Power, MTA 156

- MTA 156

TE Internal #: 640385-7
TE Internal Description: 07P MTA156 HDR ASSY SQ R/A

PCB Connector Type : PCB Mount Header
PCB Mount Orientation : Right Angle
Connector System : Wire-to-Board
Number of Positions : 7
Number of Rows : 1

See All Features

More Less

Compatible Parts & Tooling

Documents

Product Drawings

MTA-156 HEADER ASSEMBLY, PLAIN, RIGHT ANGLE, .045 SQUARE POST, TIN PLATED ENG_CD_640385_Y.pdf English

CAD Files

Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
3D PDF 3D_CVM_CVM_640385-7_AC.pdf 3D
Customer View Model ENG_CVM_CVM_640385-7_AC.2d_dxf.zip English
ENG_CVM_CVM_640385-7_AC.3d_igs.zip English
ENG_CVM_CVM_640385-7_AC.3d_stp.zip English

Product Specifications

Application Specification ENG_SS_114-1020_L.pdf English
Product Specification ENG_SS_108-1051_J.pdf English

Agency Approvals

Agency Approval Document ENG_AAD_UL_E28476_19751120_A.pdf English

UL Report ENG_AAD_UL_CERT_E28476_19900807_C1_5.pdf English

UL ENG_AAD_UL_CERT_E28476_19900619_C1_B.pdf English

CSA Certificate ENG_AAD_CSA_164196_6233_2595099_A.pdf English
ENG_AAD_CSA_164196_6233_1212210_A.pdf English
ENG_AAD_CSA_CERT_164196_6233_1212210_C1_C.pdf English

Product Change Notification

View Product Change Notification Login required to access product change notifications

Features

Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

Product Type Features

PCB Connector Type : PCB Mount Header
Connector System : Wire-to-Board
Header Type : Unshrouded
Sealable : No
Connector & Contact Terminates To : Printed Circuit Board
Connector Product Type : Connector Assembly

Configuration Features

Number of Columns : 7
PCB Mount Orientation : Right Angle
Number of Positions : 7
Number of Rows : 1

Electrical Characteristics

Operating Voltage (VAC): 600

Body Features

Primary Product Color : Natural

Contact Features

Contact Mating Area Plating Material Finish : Matte
PCB Contact Termination Area Plating Material : Tin
Contact Base Material : Copper Alloy
Contact Mating Area Length : 9.91 mm [ .39 in ]
Contact Layout : Inline
Contact Shape & Form : Square
PCB Contact Termination Area Plating Material Thickness : 2.54 µm [ 100 µin ]
Mating Square Post Dimension : 1.14 mm [ .045 in ]
Contact Mating Area Plating Material Thickness : 2.54 µm [ 100 µin ]
PCB Contact Termination Area Plating Material Finish : Matte
Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]
Contact Underplating Material : Nickel
Contact Mating Area Plating Material : Tin (Sn)
Contact Type : Pin
Contact Current Rating (Max) (A): 7

Termination Features

Square Termination Post & Tail Dimension : 1.14 mm [ .045 in ]
Termination Post & Tail Length : 3.18 mm [ .125 in ]
Termination Method to PCB : Through Hole - Solder

Mechanical Attachment

Mating Retention : Without
Panel Mount Feature : Without
PCB Mount Retention : Without
PCB Mount Alignment : Without
Connector Mounting Type : Board Mount
Mating Alignment : Without

Housing Features

Housing Material : Polyester - GF
Centerline (Pitch) : 3.96 mm [ .156 in ]

Dimensions

Connector Length : 27.74 mm [ 1.092 in ]
Connector Height : 6.27 mm [ .247 in ]
PCB Thickness (Recommended) : 1.6 mm [ .063 in ]
Connector Width : 16.26 mm [ .64 in ]

Usage Conditions

Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

Circuit Application : Power

Industry Standards

Compatible With Approved Standards Products : CSA LR7189, UL E28476
Compatible With Agency/Standards Products : CSA, UL
UL Flammability Rating : UL 94V-0

Packaging Features

Packaging Quantity : 2000
Packaging Method : Package
