Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

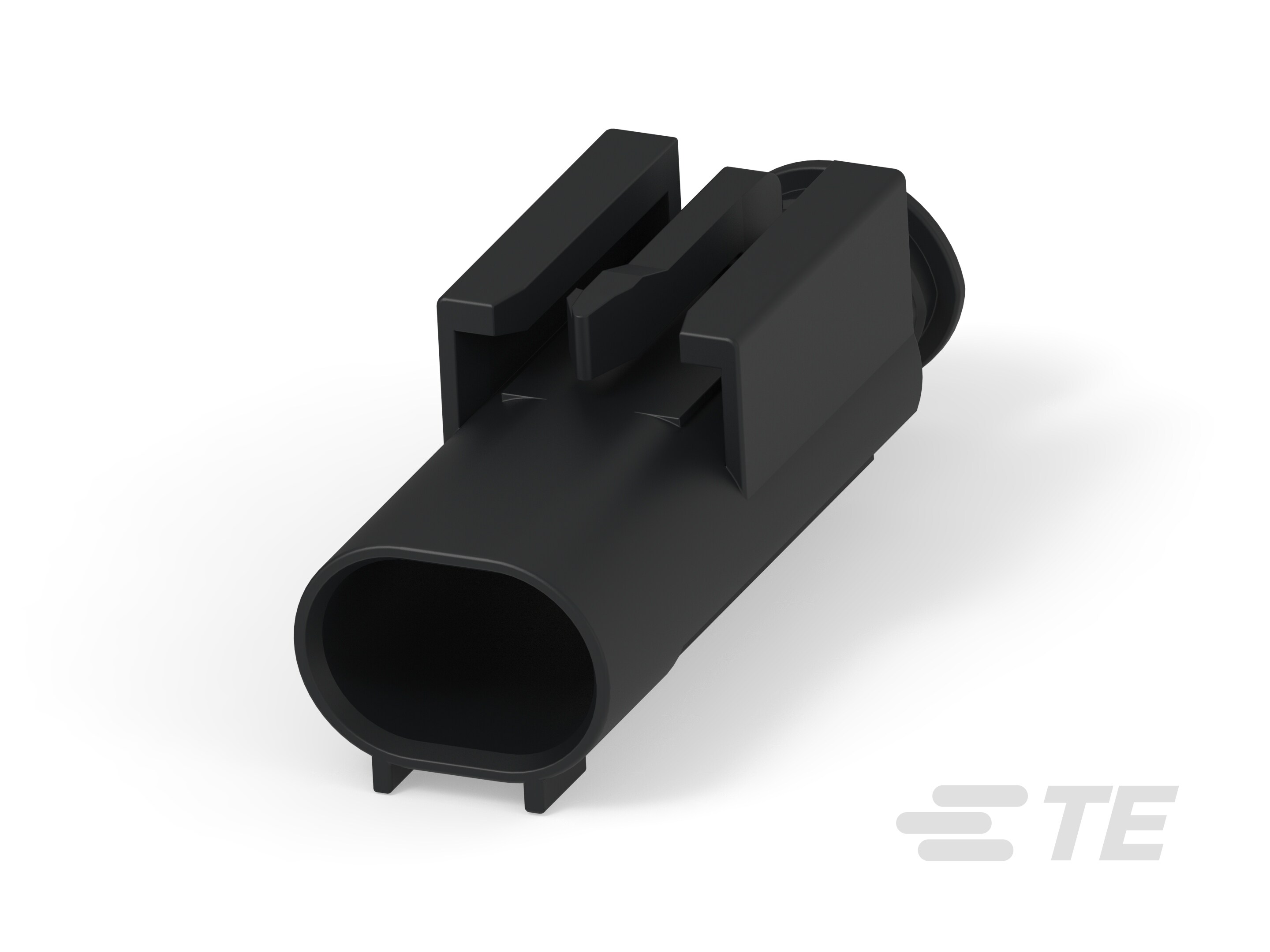

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Male Terminals

• Connector System : Wire-to-Wire

• Sealable : Yes

• Primary Locking Feature : On the Terminal

• Connector & Contact Terminates To : Wire & Cable

• Housing Material : PBT GF

• Centerline (Pitch) : 4 mm [ .157 in ]

• Cable Exit Angle : 180°

• Primary Product Color : Black

• Connector & Keying Code : A

• Operating Voltage (VDC): 14

• Nominal Voltage Architecture (V): 12

• Serviceable : Yes

• Connector Position Assurance Capable : No

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Contact Type : Tab

• Contact Size : .63mm

• Contact Current Rating (Max) (A): 7.5

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Connector Height : 11.5 mm [ .453 in ]

• Product Length : 14.2 mm [ .559 in ]

• Product Width : 40.1 mm [ 1.579 in ]

• Number of Positions : 2

• Number of Rows : 1

• Operating Temperature (Max) : 120 °C [ 248 °F ]

• Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]
