Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

• CSA Rating : LR 7189, Certified

• Compatible With Approved Standards Products : UL E28476

• UL Rating : Recognized

• Compatible With Agency/Standards Products : UL, CSA

• UL Flammability Rating : UL 94V-2

• Glow Wire Rating : Standard Part - Not Glow Wire

• Panel Mount Feature : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Contact Layout : Matrix

• Contact Retention Within Housing : Without

• Contact Type : Socket

• Connector Height (mm): 21.97

• Product Length (mm): 25.4

• Product Width (mm): 16.13

• Row-to-Row Spacing : 5.03 mm [ .198 in ]

• Packaging Quantity : 1

• Packaging Method : Package

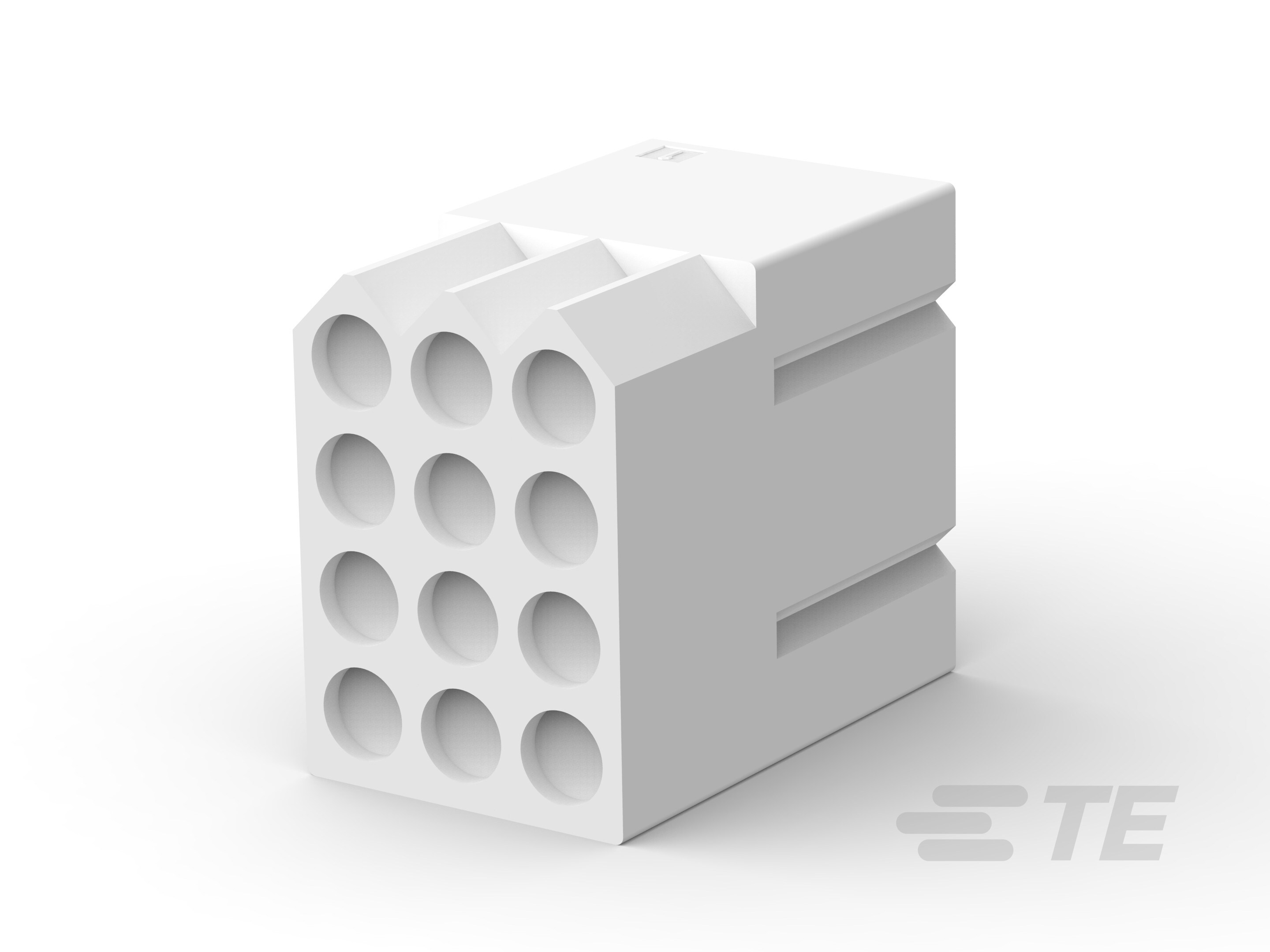

• Rectangular Power Connector Type : Housing

• Connector & Housing Type : Receptacle

• Connector System : Wire-to-Wire

• Sealable : No

• Connector & Contact Terminates To : Wire & Cable

• Number of Positions : 12

• Number of Signal Positions : 12

• Number of Rows : 4

• Operating Voltage (VAC): 250

• Termination Method to Wire & Cable : Crimp

• Centerline (Pitch) : 5.03 mm [ .198 in ]

• Housing Color : Natural

• Housing Material : Nylon 6/6

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Power & Signal
