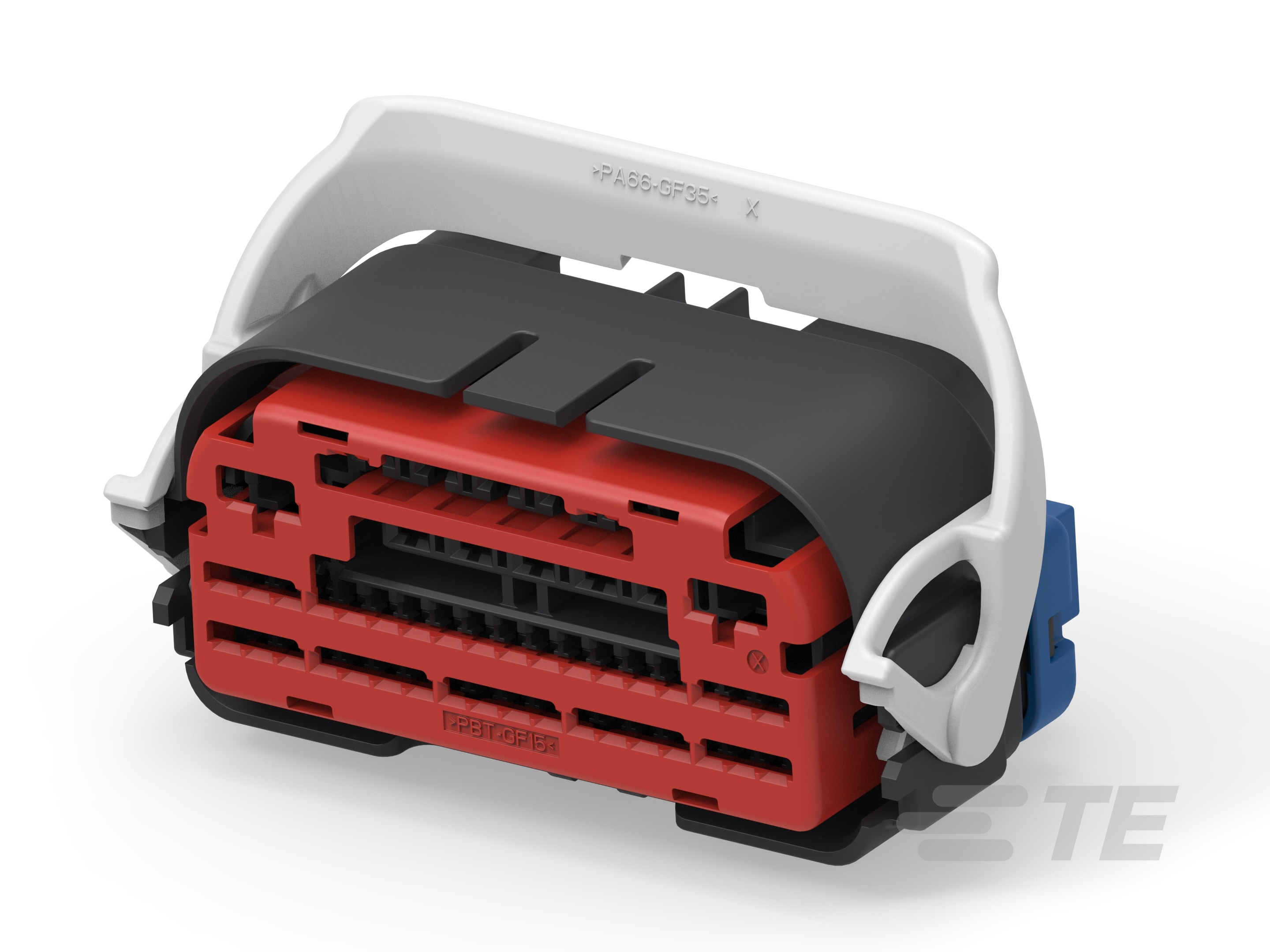

48 Position Housing, Housing for Female Terminals, Wire-to-Wire, 3.5 mm / 6.8 mm [.13 in / .26 in] Centerline, Sealable, Black, Wire & Cable
776728-1
48 Position Housing, Housing for Female Terminals, Wire-to-Wire, 3.5 mm / 6.8 mm [.13 in / .26 in] Centerline, Sealable, Black, Wire & Cable
- TE Internal #: 776728-1
- TE Internal Description: 48P Hybrid Plug Assy, A Key, Open
-
Number of Positions : 48
-
Connector & Housing Type : Housing for Female Terminals
-
Mating Tab Width (mm): 1.5, 2.8, 6.3
-
Mating Tab Width (in): .06, .11, .248
-
Connector System : Wire-to-Wire
-
Centerline (Pitch) (mm): 3.5, 6.8
-
Centerline (Pitch) (in): .13, .26
Documents
Product Drawings
- 48-WAY, SEALED HYBRID, FEMALE, PLUG ASSEMBLY ENG_CD_776728_B4.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_776728-1_B1.pdf 3D
- Customer View Model ENG_CVM_CVM_776728-1_B1.2d_dxf.zip English
- ENG_CVM_CVM_776728-1_B1.3d_igs.zip English
- ENG_CVM_CVM_776728-1_B1.3d_stp.zip English
Instruction Sheets
- Instruction Sheet (U.S.) ENG_SS_408-8929_B.pdf English
- ENG_SS_408-8957_B.pdf English
