Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

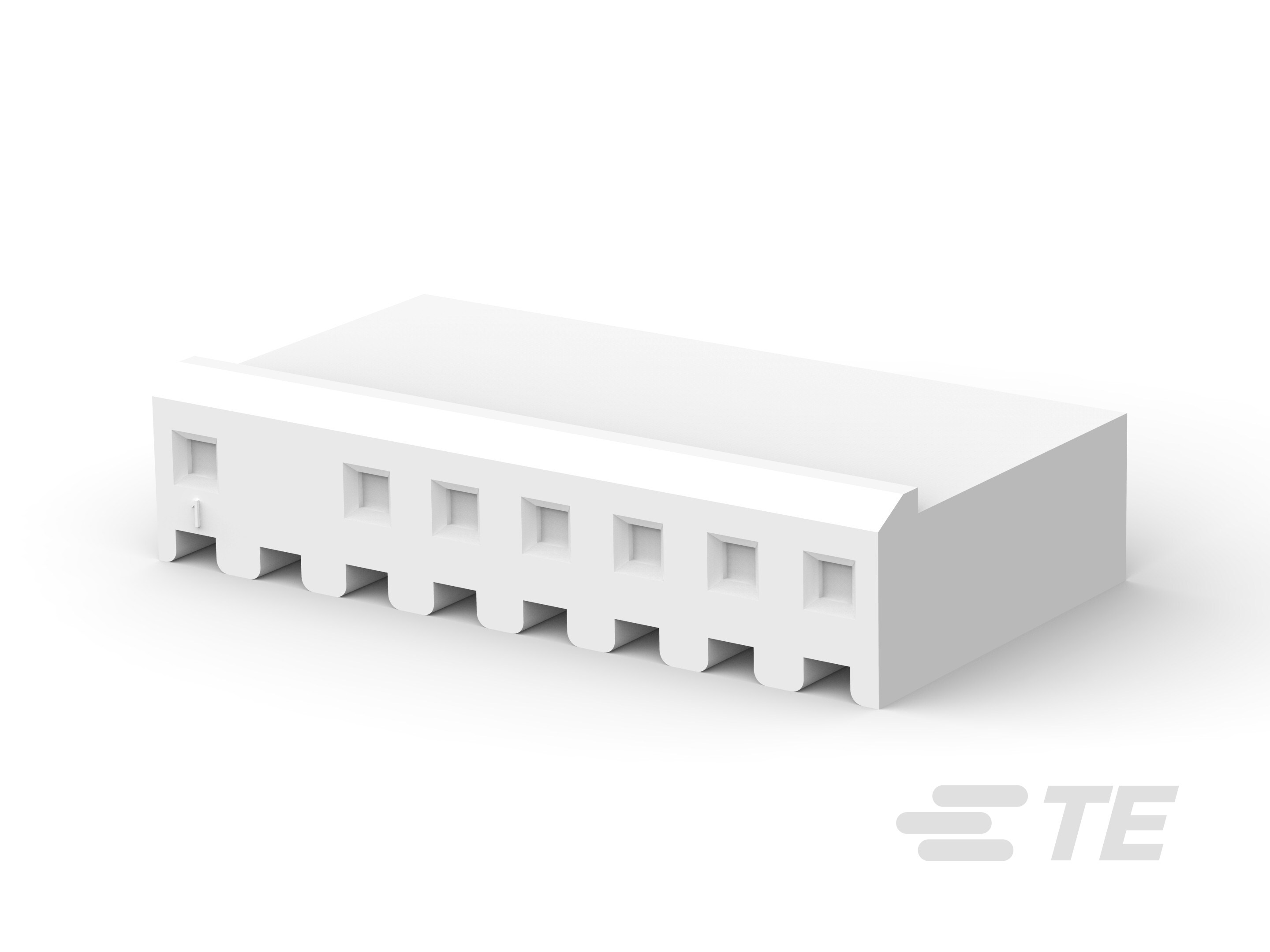

• Connector & Contact Terminates To : Wire & Cable

• Connector & Housing Type : Receptacle

• Connector Product Type : Housing

• Sealable : No

• Connector System : Wire-to-Board

• Number of Positions : 8

• Number of Rows : 1

• Operating Voltage (VAC): 250

• Primary Product Color : Natural

• Contact Layout : Inline

• Contact Retention Within Housing : Without

• Contact Current Rating (Max) (A): 6.5

• Contact Type : Socket

• Termination Method to Wire & Cable : Crimp

• Connector Mounting Type : Cable Mount (Free-Hanging)

• PCB Mount Alignment : Without

• PCB Mount Retention : Without

• Panel Mount Feature : Without

• Mating Retention : With

• Strain Relief : Without

• Mating Retention Type : Locking Ramp

• Housing Material : Nylon - GF

• Centerline (Pitch) : 3.96 mm [ .156 in ]

• Connector Height (mm): 6.35

• Connector Length (mm): 31.65

• Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

• Circuit Application : Power & Signal

• Compatible With Agency/Standards Products : CSA, UL

• UL Flammability Rating : UL 94V-0
