796635-2

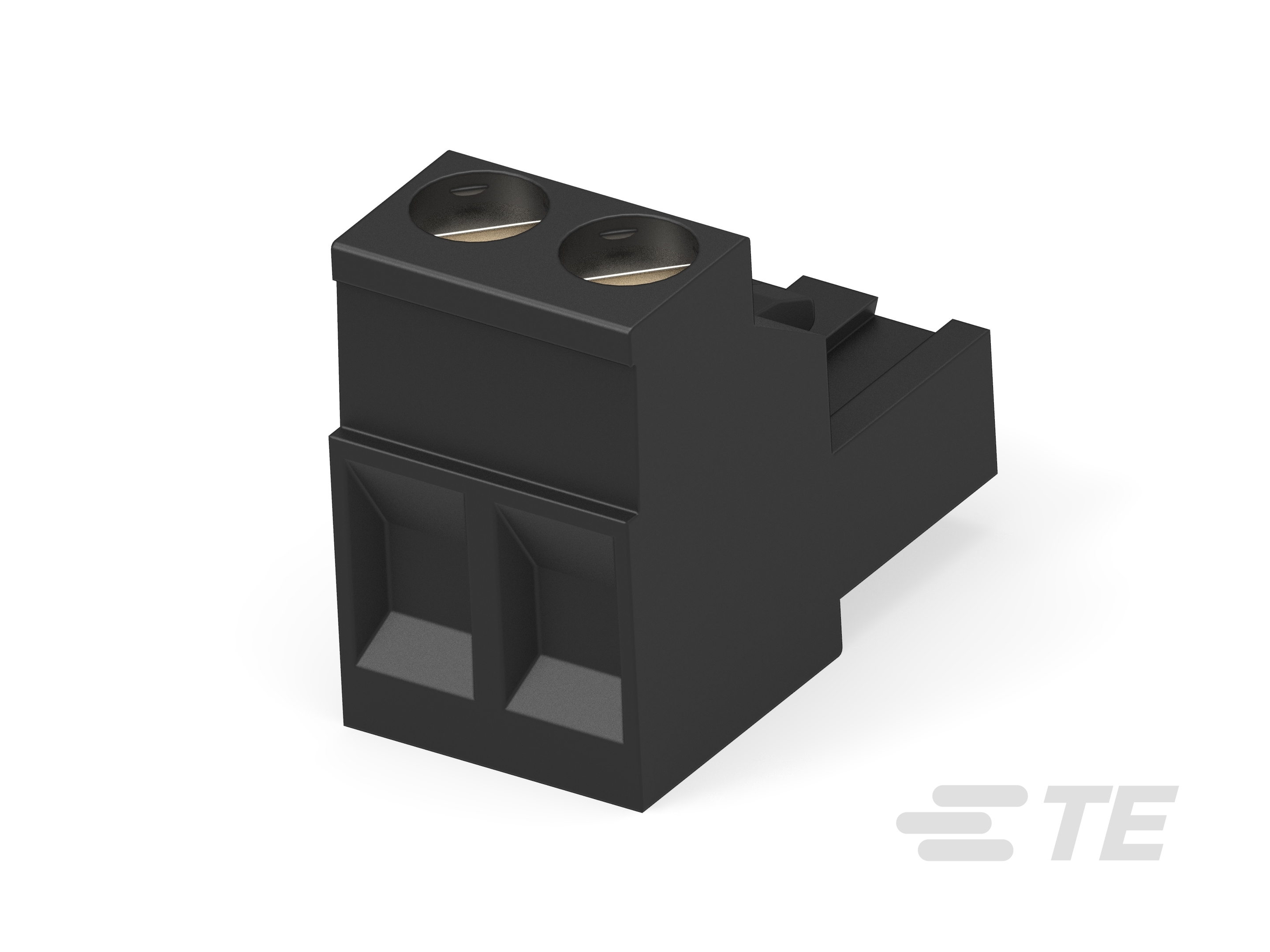

PCB Terminal Block Plug, Wire-to-Board, 2 Position, 5.08 mm [.2 in] Centerline, 1 Row, 180° Wire Entry Angle, 30 – 12 AWG Wire Size
796635-2
PCB Terminal Block Plug, Wire-to-Board, 2 Position, 5.08 mm [.2 in] Centerline, 1 Row, 180° Wire Entry Angle, 30 – 12 AWG Wire Size
-
- Buchanan
- TE Internal #: 796635-2
- TE Internal Description: 2 POS 5.08MM R/A PLUG,TRM BLK
-
Terminal Block Connector Type : Plug
-
Connector System : Wire-to-Board
-
Number of Positions : 2
-
Centerline (Pitch) : 5.08 mm [ .2 in ]
-
Number of Rows : 1
Documents
Product Drawings
- TERMINAL BLOCK, PLUG, STACKING, 5.08mm PITCH ENG_CD_796635_G11_pdf_796635-c_drw.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_796635-2_J.pdf 3D
- Customer View Model ENG_CVM_CVM_796635-2_J.2d_dxf.zip English
- ENG_CVM_CVM_796635-2_J.3d_igs.zip English
- ENG_CVM_CVM_796635-2_J.3d_stp.zip English
Datasheets & Catalog Pages
- BUCHANAN TERMINAL BLOCKS CATALOG - EUROSTYLE TERMINAL BLOCKS ENG_CS_1308389_EUROSTYLE_TERMINAL_BLOCKS_0607.pdf English
- 1-1773458-1_EURO_STYLE_TERMINAL_BLOCKS_QRG ENG_DS_1-1773458-1_EURO_STYLE_QRG_0311.pdf English
Product Specifications
- Application Specification ENG_SS_114-20079_F.pdf English
Agency Approvals
- UL ENG_AAD_UL_CERTB_E60677_19960809_C1_7.pdf English
