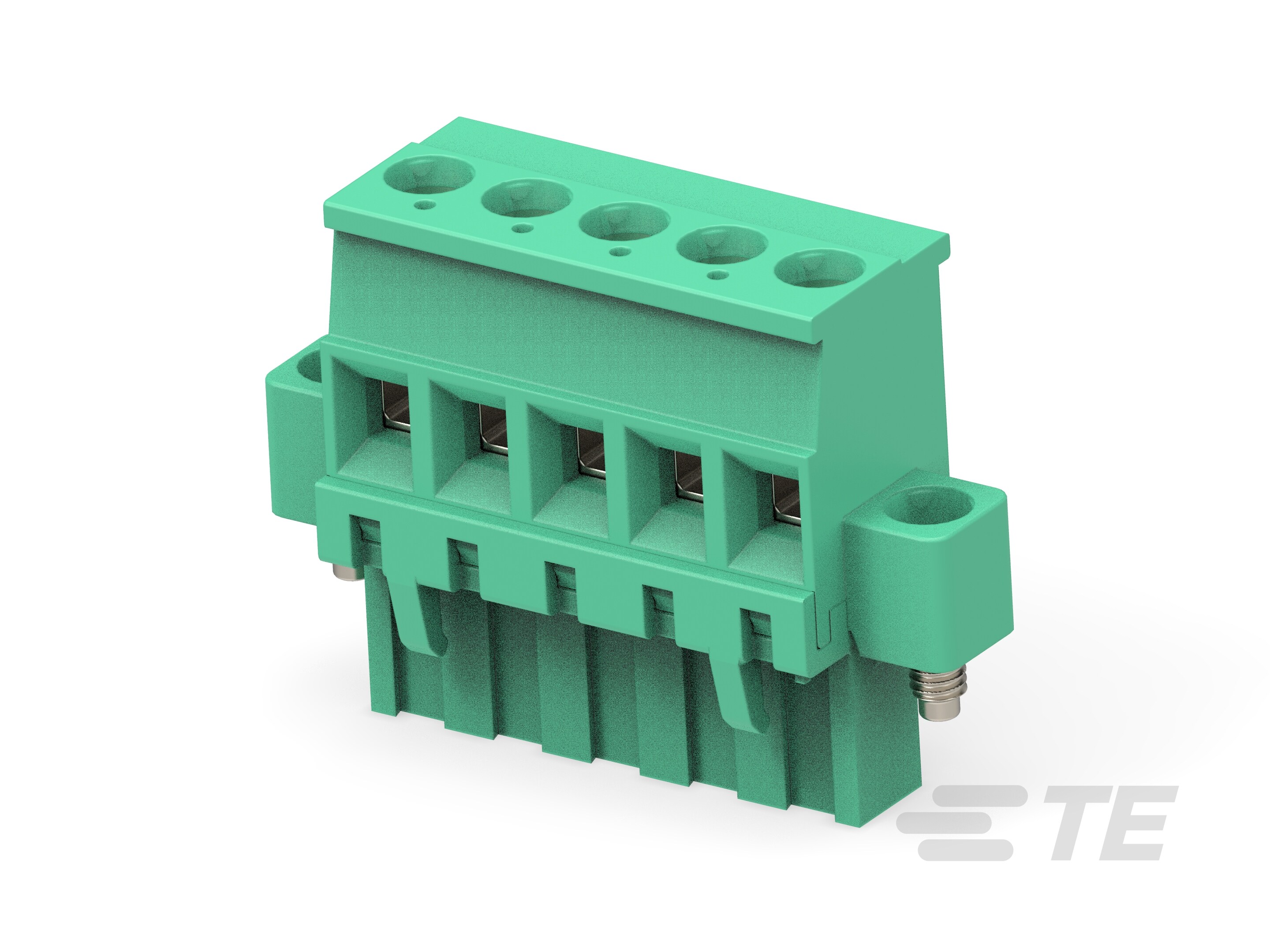

PCB Terminal Block Plug, Wire-to-Board, 5 Position, 5.08 mm [.2 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 12 AWG Wire Size
796863-5
PCB Terminal Block Plug, Wire-to-Board, 5 Position, 5.08 mm [.2 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 12 AWG Wire Size
-
- Buchanan
- TE Internal #: 796863-5
- TE Internal Description: 5 POS TERMI-BLOK PLUG VERTICAL
-
Terminal Block Connector Type : Plug
-
Connector System : Wire-to-Board
-
Number of Positions : 5
-
Centerline (Pitch) : 5.08 mm [ .2 in ]
-
Number of Rows : 1
