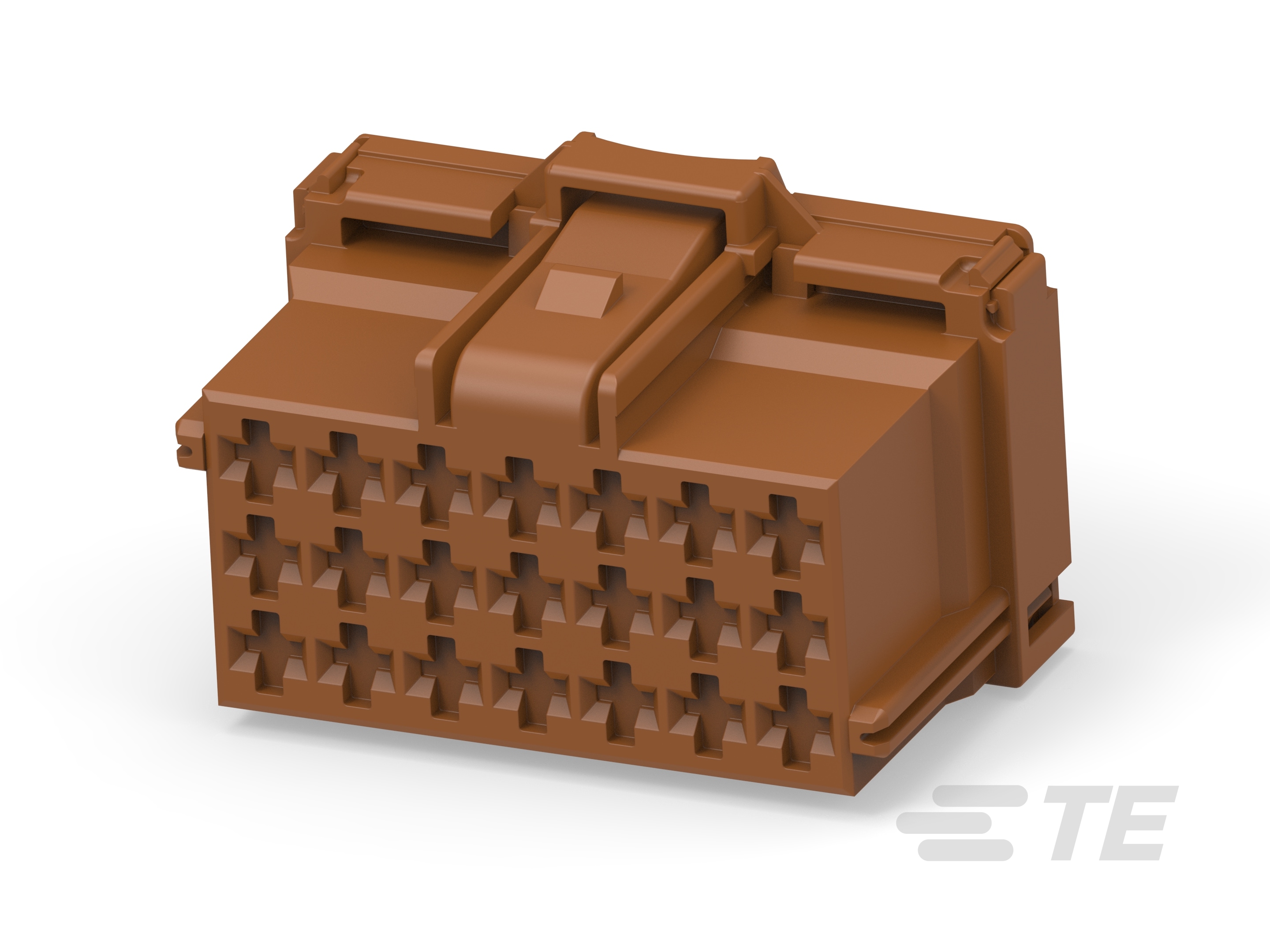

• Connector Shape : Rectangular

• Mixed & Hybrid Connector : No

• Connector & Housing Type : Housing for Female Terminals

• Connector System : Wire-to-Wire

• Sealable : No

• Primary Locking Feature : On the Terminal

• Number of Positions : 21

• Number of Rows : 3

• Operating Voltage (VDC): 28

• Nominal Voltage Architecture (V): 12, 24

• Cable Exit Angle : 180°

• Primary Product Color : Brown

• Connector & Keying Code : A

• Contact Type : Receptacle

• Contact Size : 2.8mm

• Mating Tab Width : 2.8 mm [ .11 in ]

• Mating Alignment : With

• Mating Alignment Type : Keyed

• Terminal Position Assurance : Yes

• Strain Relief : Without

• Connector Mounting Type : Cable Mount (Free-Hanging)

• Housing Material : PBT GF

• Centerline (Pitch) : 5 mm [ .197 in ]

• Connector Height : 24 mm [ .945 in ]

• Product Length : 37.5 mm [ 1.476 in ]

• Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120

• Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248

• Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

• Circuit Application : Signal

• Packaging Quantity : 900

• Packaging Method : Carton
