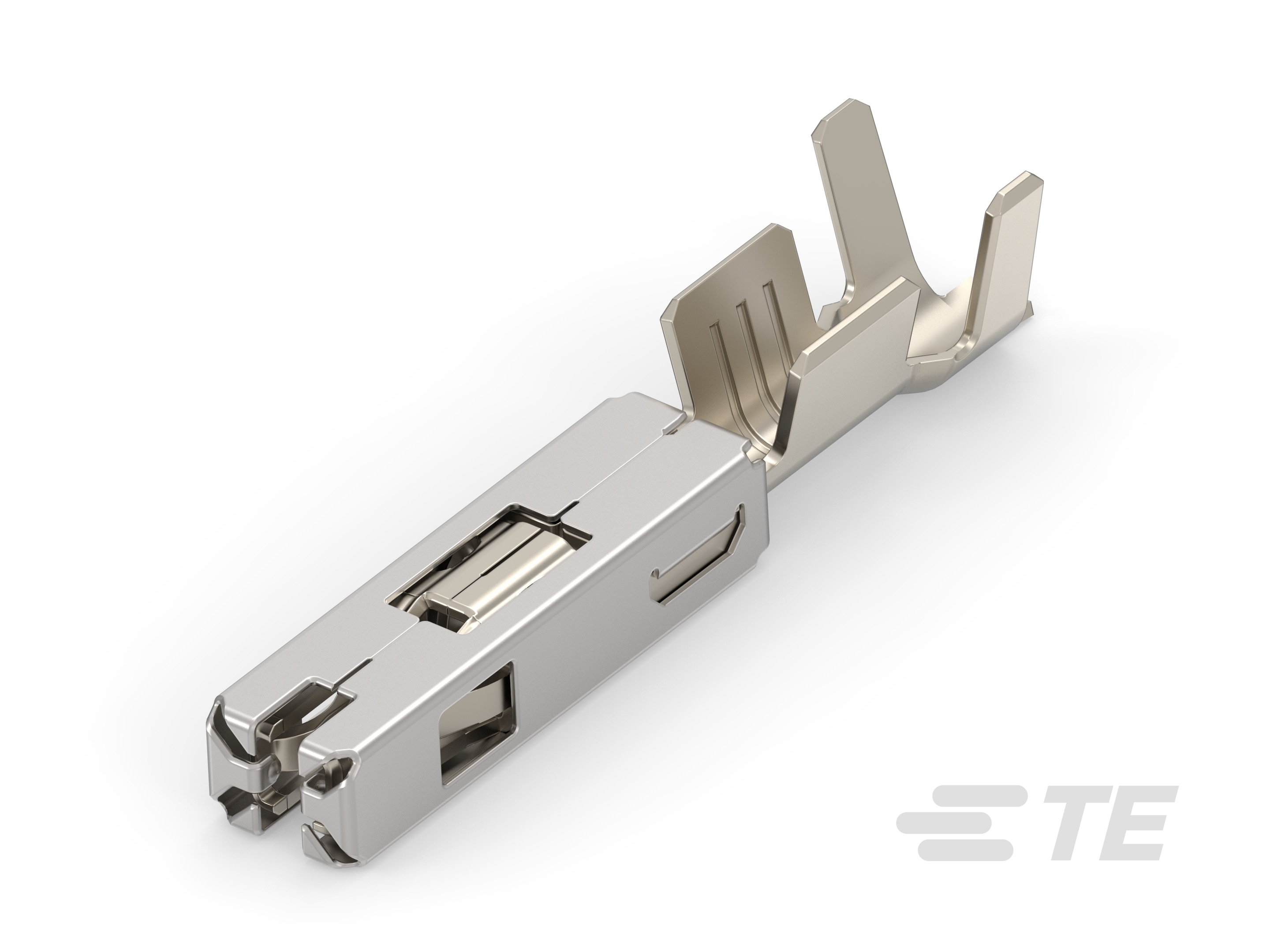

Receptacle Terminal, 16 – 14 AWG, 1.4 – 2 mm² Wire, 1.5 mm [.059 in] Tab Width, Gold (Au), .6 mm [.024 in] Tab Thickness, Sensor Flat Contact System
929025-1
Receptacle Terminal, 16 – 14 AWG, 1.4 – 2 mm² Wire, 1.5 mm [.059 in] Tab Width, Gold (Au), .6 mm [.024 in] Tab Thickness, Sensor Flat Contact System
-
- AMP
- Sensor Flat Contact System
- TE Internal #: 929025-1
- TE Internal Description: 1.5MM SFC
- All AMP MCP, SFC, RECEPTACLE (17)
-
Terminal Type : Receptacle
-
Wire Size (AWG): 16 – 14
-
Wire Size (mm²): 1.4 – 2
-
Mating Tab Width : 1.5 mm [ .059 in ]
-
Interface Plating : Gold (Au)
