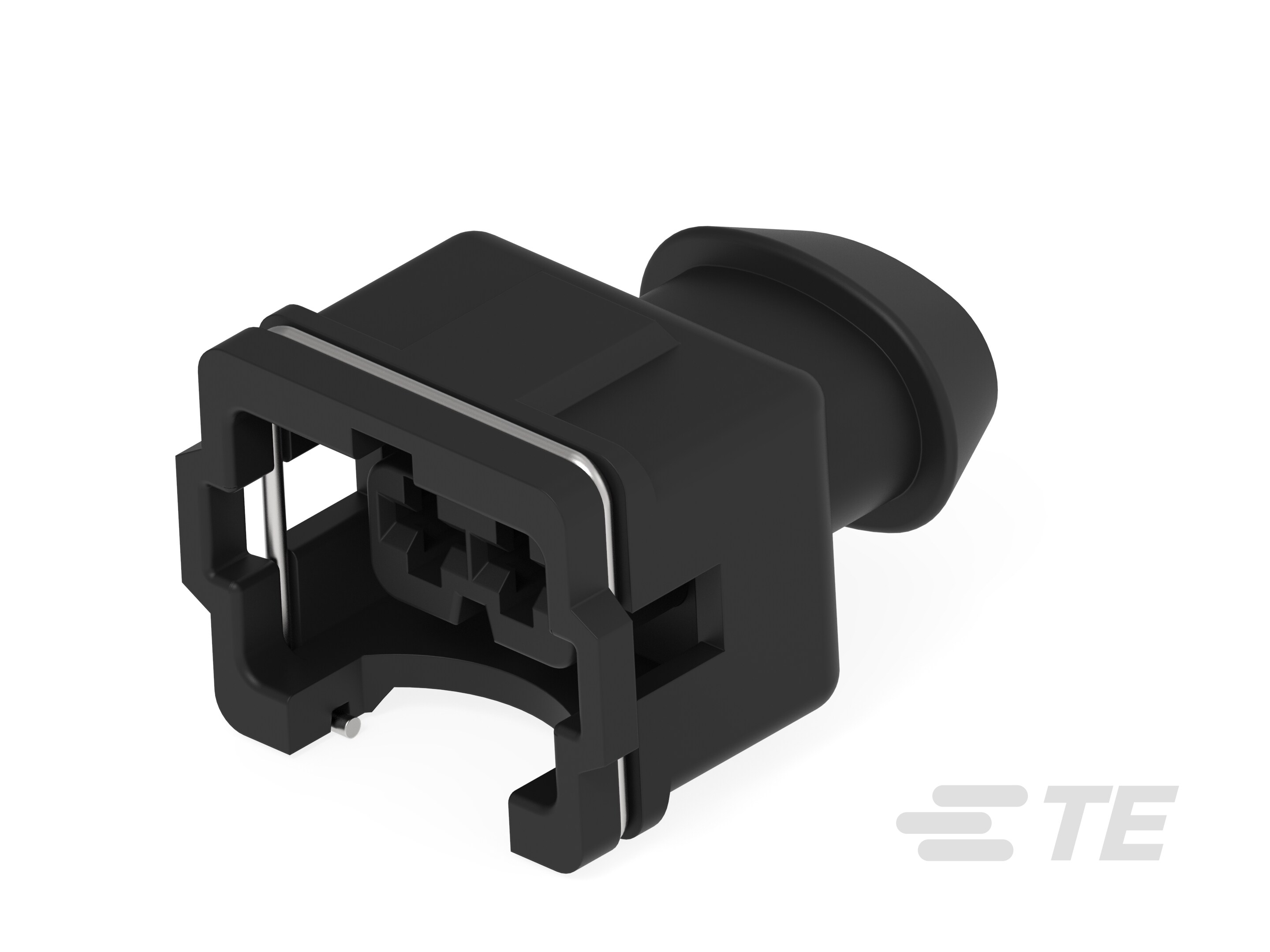

963270-5
2 Position Housing, Housing for Female Terminals, Wire-to-Wire, 5 mm [.197 in] Centerline, Sealable, Black, Wire & Cable, Power, Junior Power Timer
963270-5
2 Position Housing, Housing for Female Terminals, Wire-to-Wire, 5 mm [.197 in] Centerline, Sealable, Black, Wire & Cable, Power, Junior Power Timer
-
- AMP
- Junior Power Timer
- TE Internal #: 963270-5
- TE Internal Description: 2P J-P-TIM GEH KPL
-
Number of Positions : 2
-
Connector & Housing Type : Housing for Female Terminals
-
Connector System : Wire-to-Wire
-
Centerline (Pitch) : 5 mm [ .197 in ]
-
Sealable : Yes
Documents
Product Drawings
- ASSEMBLY FOR 2POS. JPT HSG. ENG_CD_963270_A1.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_963270-5_A.pdf 3D
- Customer View Model ENG_CVM_CVM_963270-5_A.2d_dxf.zip English
- ENG_CVM_CVM_963270-5_A.3d_igs.zip English
- ENG_CVM_CVM_963270-5_A.3d_stp.zip English
