Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

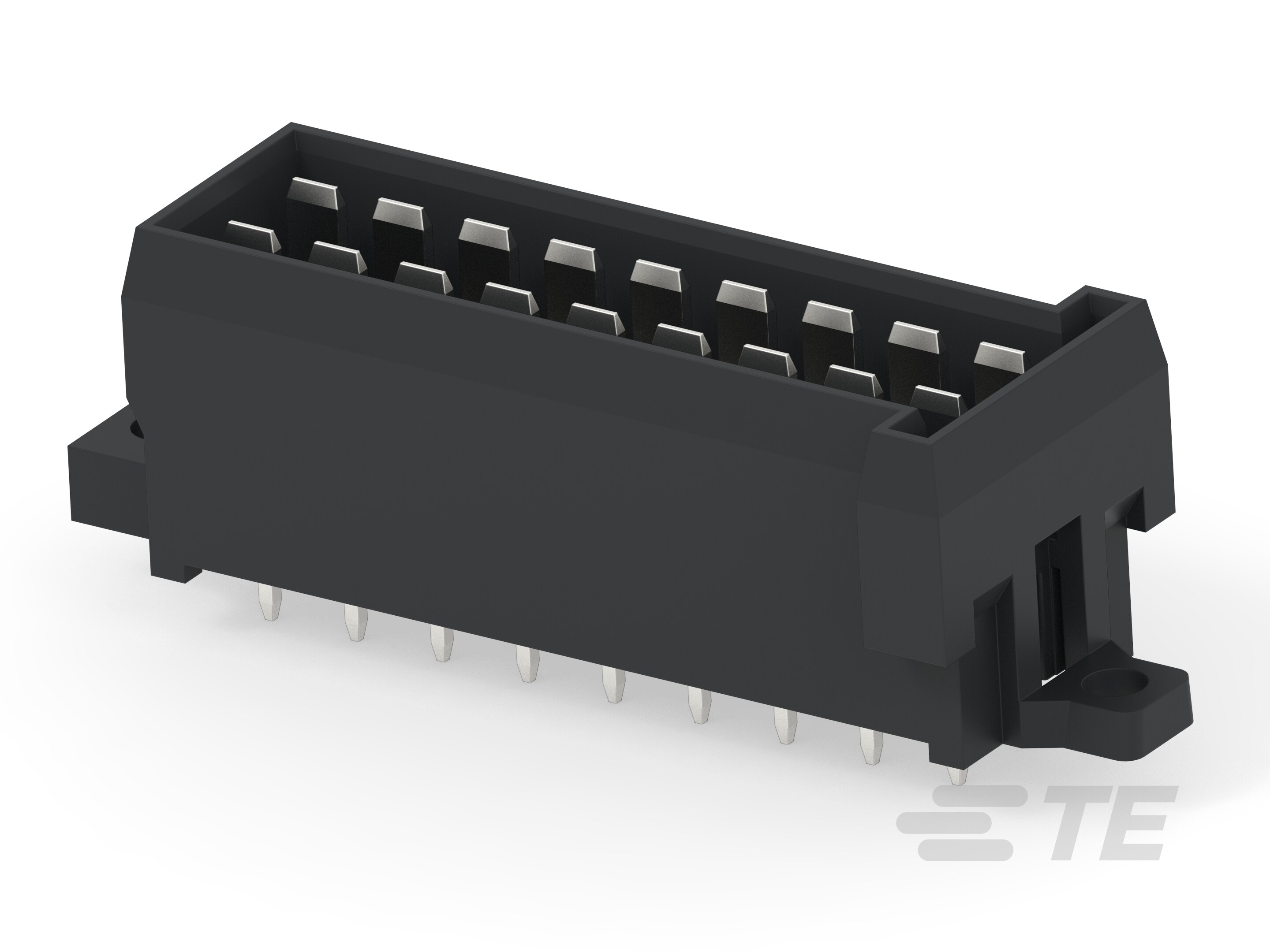

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Assembly Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Number of Sections : 1

• PCB Mount Orientation : Vertical

• Number of Positions : 18

• Number of Rows : 2

• Mating Tab Thickness : .8 mm [ .031 in ]

• Mating Tab Width : 3 mm [ .118 in ]

• Contact Size : 3mm

• Contact Mating Area Plating Material : Silver

• Contact Type : Tab

• Mating Retention : With

• Mounting Holes : With

• Mating Retention Type : Locking Interface

• PCB Mount Retention : With

• Mating Alignment : With

• Shielded : No

• Circuit Application : Signal

• Interface Number : 929504

• EU RoHS Compliance : Compliant

• EU ELV Compliance : Compliant

• Profile Height from PCB : 18.3 mm [ .72 in ]

• Connector Length : 61.1 mm [ 1.358 in ]

• Connector Width : 20 mm [ .787 in ]

• Packaging Quantity : 315

• Primary Product Color : Black

• Termination Method to PCB : Through Hole - Solder
