Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

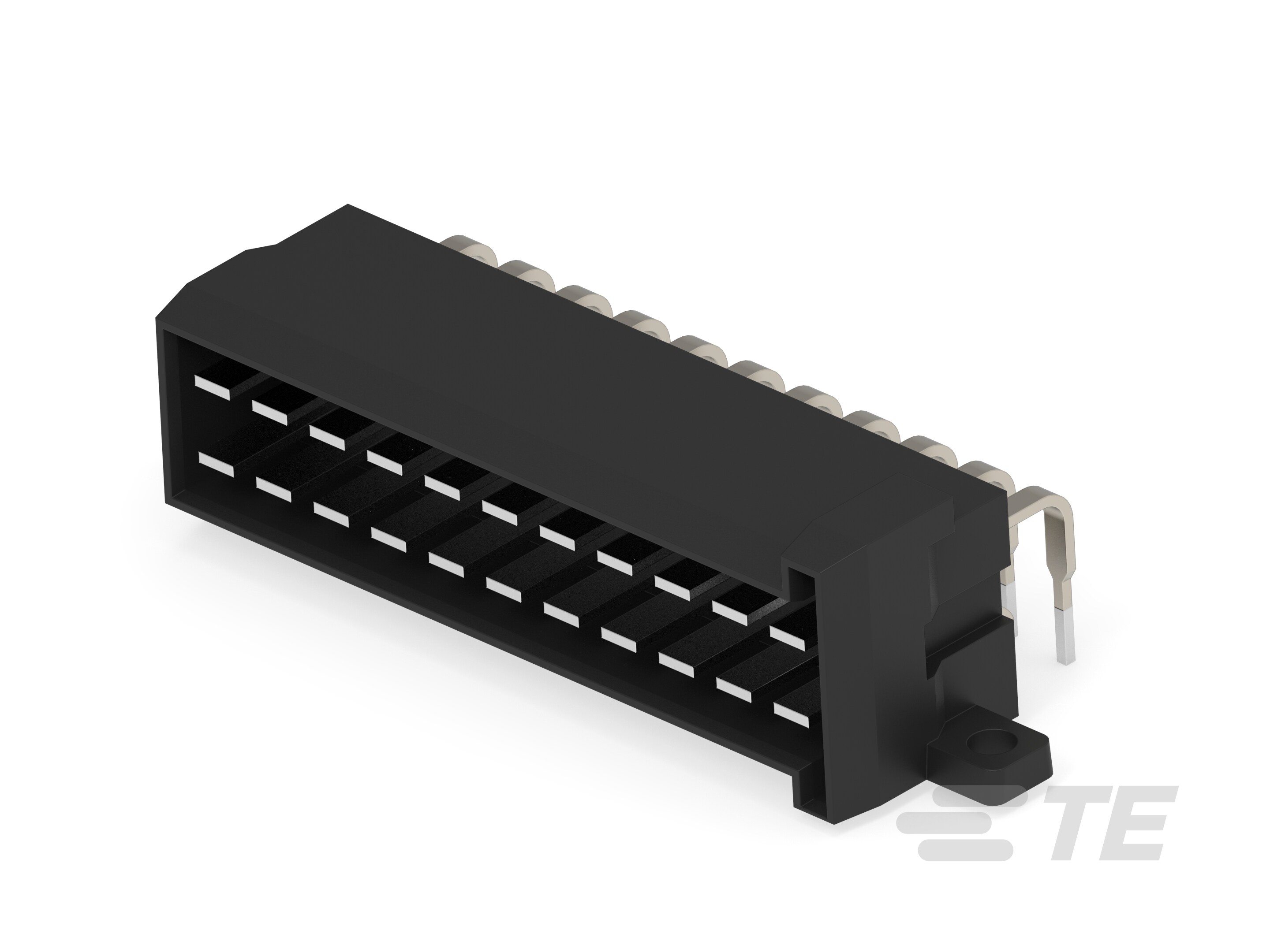

• Connector Shape : Rectangular

• Mixed & Hybrid Header : No

• PCB Connector Type : PCB Mount Header

• Connector System : Wire-to-Board

• Header Type : Fully Shrouded

• Sealable : No

• Connector Product Type : Connector Assembly

• Number of Sections : 1

• Number of Signal Positions : 22

• PCB Mount Orientation : Horizontal

• Number of Positions : 22

• Number of Rows : 2

• Primary Product Color : Black

• Mating Tab Thickness : .8 mm [ .031 in ]

• Mating Tab Width : 3 mm [ .118 in ]

• Contact Size : 2.8mm

• Contact Mating Area Plating Material : Tin (Sn)

• Contact Type : Tab

• Termination Method to PCB : Through Hole - Solder

• PCB Mount Retention Type : Mounting Hole

• Mating Retention : With

• Mounting Holes : With

• Mating Retention Type : Locking Interface

• Panel Mount Feature : Without

• PCB Mount Retention : With

• PCB Mount Alignment : With

• Mating Alignment : With

• Centerline (Pitch) : 5 mm [ .196 in ]

• Connector Length : 59.3 mm [ 2.33 in ]

• Profile Height from PCB : 19 mm [ .748 in ]

• Connector Width : 17.3 mm [ .681 in ]

• Shielded : No

• Circuit Application : Signal
