967631-1

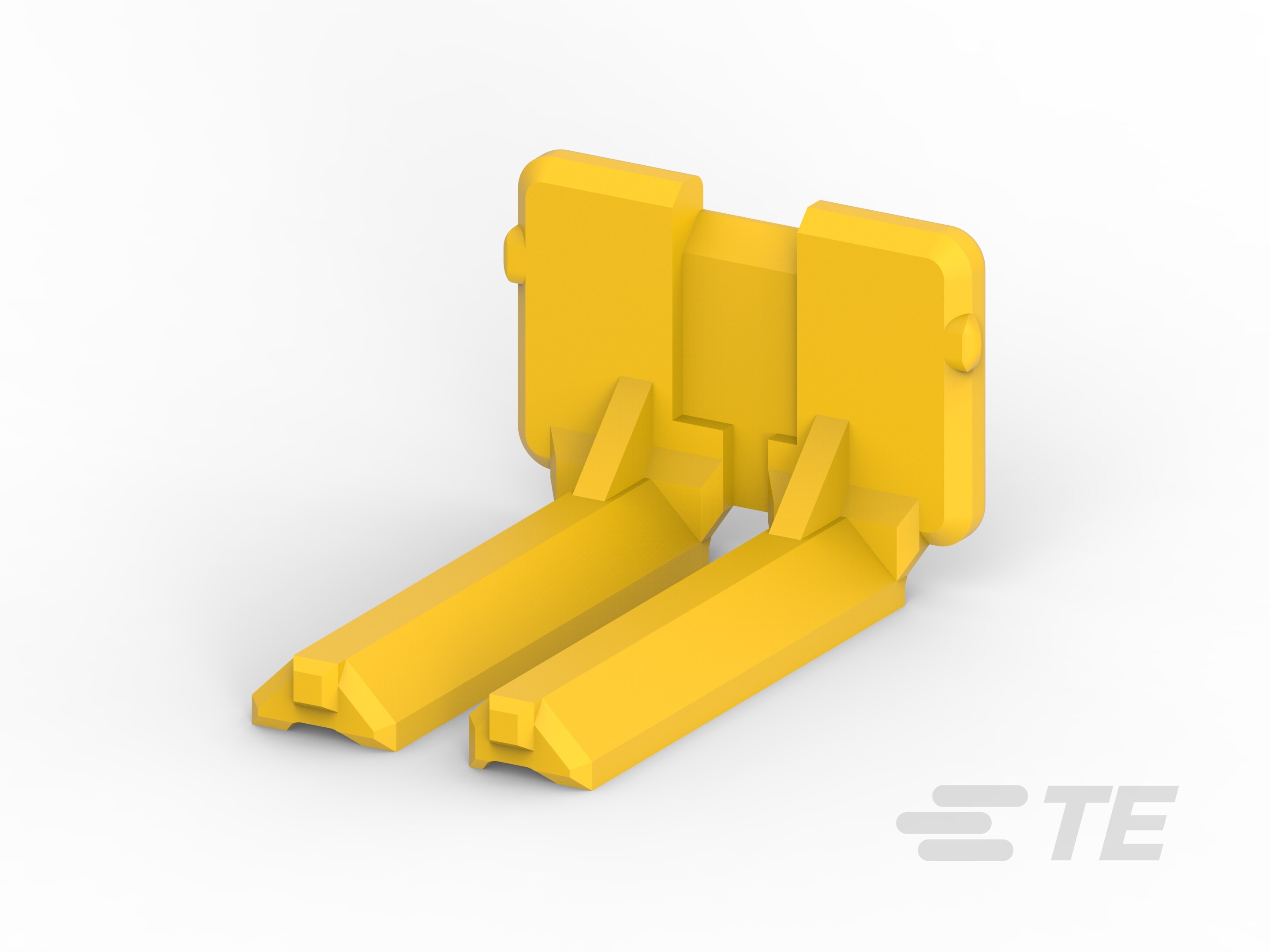

TPA (Terminal Position Assurance), Yellow, PBT GF, Timer Connector System, Automotive Connector Locks & Position Assurance
967631-1
TPA (Terminal Position Assurance), Yellow, PBT GF, Timer Connector System, Automotive Connector Locks & Position Assurance
-
- AMP
- Timer Connector System
- TE Internal #: 967631-1
- TE Internal Description: 2. KONT-SICHERUNG 9P
- All Unsealed Locks and Position Assurance (9)
-
Packaging Method : Carton
-
Operating Temperature Range : -40 – 140 °C [ -40 – 284 °F ]
-
Primary Product Color : Yellow
-
Primary Product Material : PBT GF
-
Connector & Contact Retention Accessory Type : TPA (Terminal Position Assurance)
Documents
Product Drawings
- SECONDARY LOCKING DEVICE FOR 9POS. HSG. ENG_CD_967631_A4.pdf English
- SECONDARY LOCKING DEVICE FOR 9POS. HSG. English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_967631-1_D.pdf 3D
- Customer View Model ENG_CVM_CVM_967631-1_D.2d_dxf.zip English
- ENG_CVM_CVM_967631-1_D.3d_igs.zip English
- ENG_CVM_CVM_967631-1_D.3d_stp.zip English
Product Specifications
- Application Specification ENG_SS_114-94624_A.pdf English
- Product Specification ENG_SS_108-18619-3_C.pdf English
