Please review product documents or contact us for the latest agency approval information.

Please Note: Use the Product Drawing for all design activity.

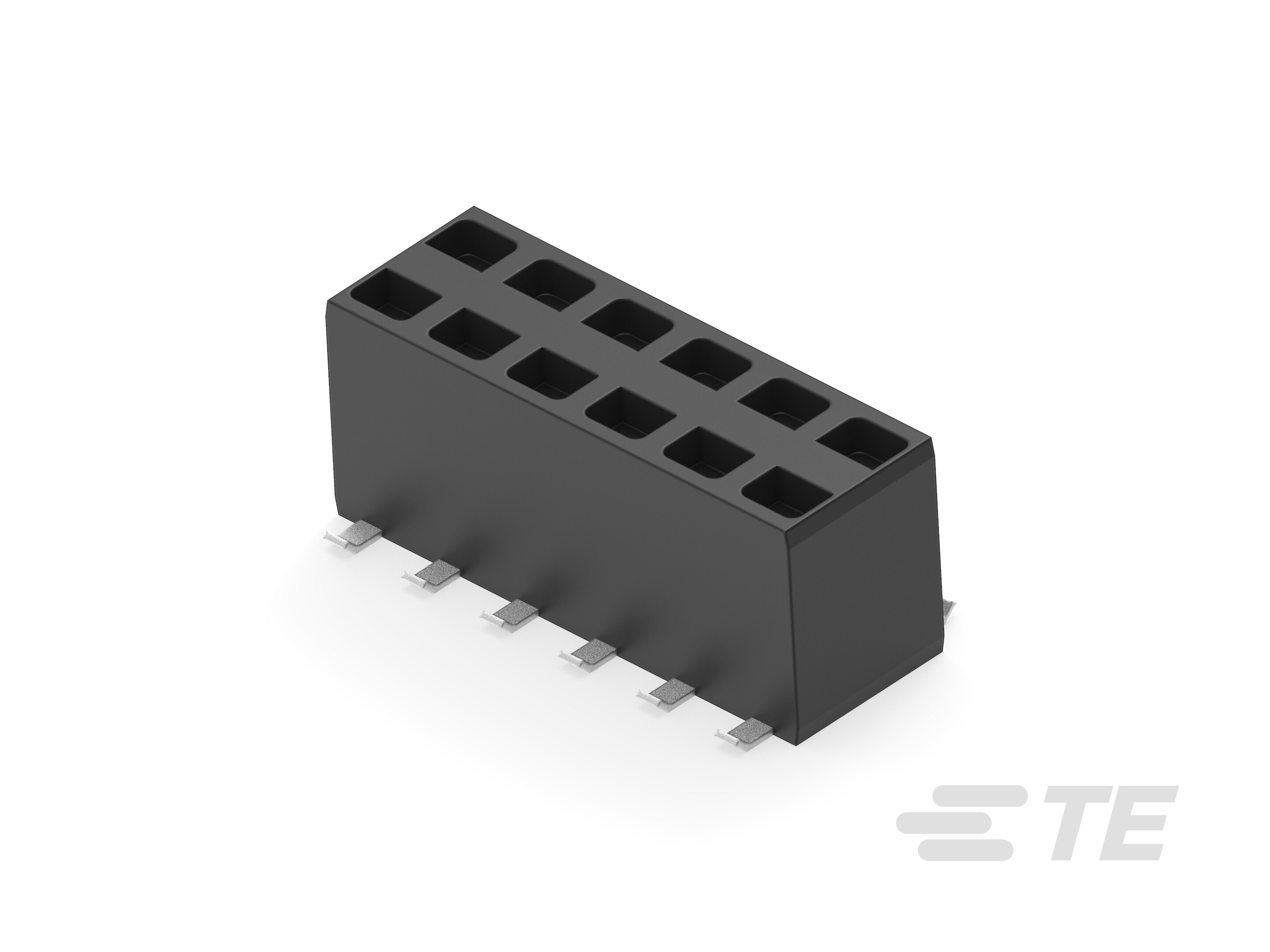

• PCB Connector Type : PCB Mount Receptacle

• Connector System : Board-to-Board

• Sealable : No

• Connector & Contact Terminates To : Printed Circuit Board

• Connector Product Type : Connector Assembly

• Stackable : Yes

• Board-to-Board Configuration : Parallel

• PCB Mount Orientation : Vertical

• Number of Positions : 12

• Number of Rows : 2

• Connector Profile : Standard

• Primary Product Color : Black

• PCB Contact Termination Area Plating Material : Tin

• Contact Base Material : Phosphor Bronze

• Contact Protection Type : Closed Entry Housing

• Contact Layout : Inline

• PCB Contact Termination Area Plating Material Thickness : 2.5 µm [ 98.42 µin ]

• Mating Square Post Dimension : .64 mm [ .025 in ]

• Contact Mating Area Plating Material Thickness : .762 µm [ 30 µin ]

• Contact Underplating Material Thickness : 1.27 µm [ 50 µin ]

• Mating Pin Diameter : .63 mm [ .025 in ]

• Contact Underplating Material : Nickel

• Contact Mating Area Plating Material : Gold (Au)

• Contact Type : Socket

• Contact Current Rating (Max) (A): 3

• Rectangular Termination Post & Tail Thickness : .2 mm [ .008 in ]

• Rectangular Termination Post & Tail Width : .7 mm [ .027 in ]

• Termination Method to PCB : Surface Mount

• PCB Mount Retention : Without

• PCB Mount Alignment : Without

• Connector Mounting Type : Board Mount

• Mating Alignment : Without

• Housing Material : LCP (Liquid Crystal Polymer)

• Mating Entry Location : Bottom & Top

• Centerline (Pitch) : 2.54 mm [ .1 in ]

• Connector Height : 6.2 mm [ .244 in ]

• PCB Thickness (Recommended) : 1.6 mm [ .063 in ]

• Stack Height : 9 mm [ .354 in ]

• Row-to-Row Spacing : 2.54 mm [ .1 in ]

• Operating Temperature Range : -65 – 125 °C [ -85 – 257 °F ]

• Solder Process Feature : Board Standoff

• Circuit Application : Signal

• UL Flammability Rating : UL 94V-0
