• Power Component Application Type : Outdoor Use, Indoor Use

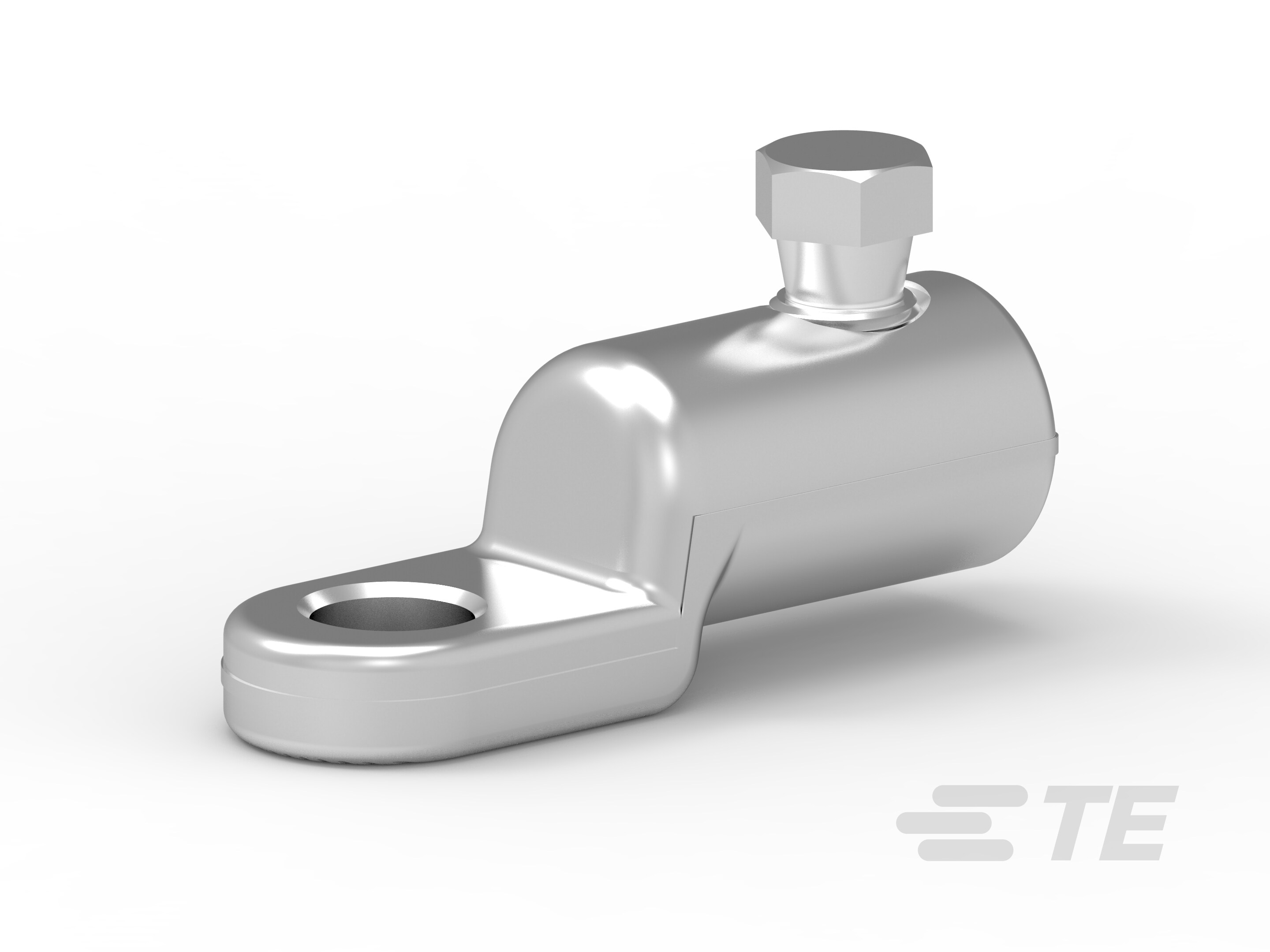

• Mechanical Connector Product Type : Shear Bolt Terminal Lug

• Bolt Head Size (Across Flats) (mm): 13

• Compatible Conductor Range (AWG/kcmil): 4 – 2/0, 1/0 – 4/0, 4 – 2, 4 – 4/0

• Compatible Conductor Cross-Section Range (mm²): 16 – 95, 10 – 50, 50 – 95, 25 – 70, 25 – 95, 25 – 35

• Palm Hole Diameter : 13

• Installation Technology : Shear Bolt

• Voltage Class (kV): ≤ 84

• Compatible Conductor Material : Copper, Aluminum

• Conductor Type : Sector, Solid, Stranded

• Primary Product Material : Aluminum

• Number of Bolts : 1

• Product Availability : China, Asia, Australia, New Zealand & Pacific Islands, Europe, Middle East & Africa, Americas
