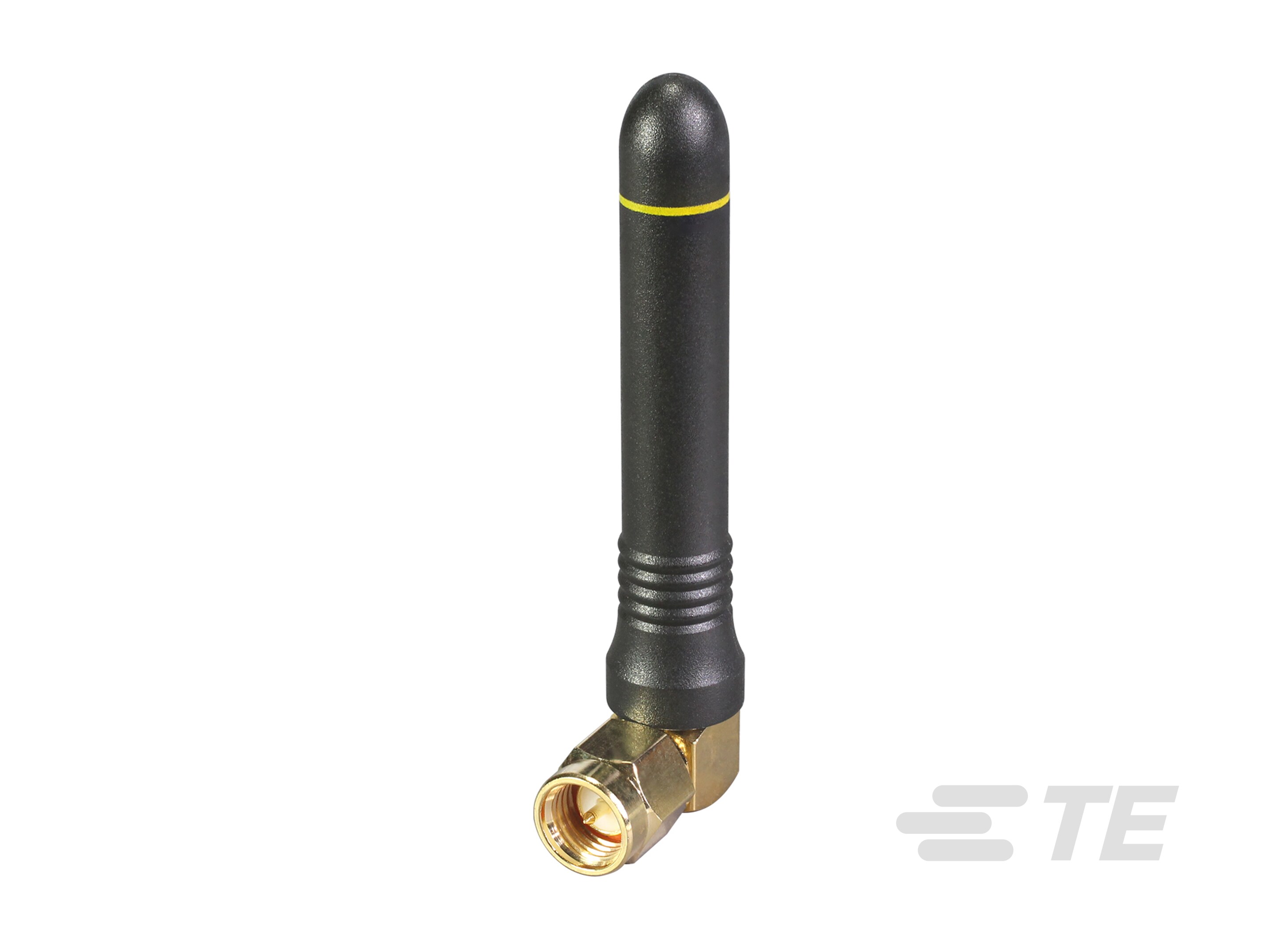

ANT-916-CW-RCS-SMA
Terminal/Duck Antenna, Single Band, LPWAN / LoRaWAN, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, Gain 3 < 6 dBi
ANT-916-CW-RCS-SMA
Terminal/Duck Antenna, Single Band, LPWAN / LoRaWAN, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, Gain 3 < 6 dBi
- TE Internal #: ANT-916-CW-RCS-SMA
- TE Internal Description: Antenna CW-RCS 916 SMA Jack
-
Antenna Type : Terminal/Duck
-
Band Type : Single Band
-
Primary Application : LoRaWAN, LPWAN
-
Wireless Application : LoRaWAN, Wi-Fi, LPWAN
-
Mounting Location : External
Documents
Product Drawings
- ANTENNA RCS SERIES 1/4 WAVE RA ANTENNA SMA & RPSMA ENG_CD_C-ANT-XXX-CW-RCS_C.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_ANT-916-CW-RCS-SMA_C.pdf 3D
- Customer View Model ENG_CVM_CVM_ANT-916-CW-RCS-SMA_C.3d_igs.zip English
- ENG_CVM_CVM_ANT-916-CW-RCS-SMA_C.3d_stp.zip English
- ENG_CVM_CVM_ANT-916-CW-RCS-SMA_C.2d_dxf.zip English
Datasheets & Catalog Pages
- 915 MHz Right-Angle Whip Antenna ENG_DS_CW-RCS_Series_A.pdf English
