ANT-DB1-VDP-TNC

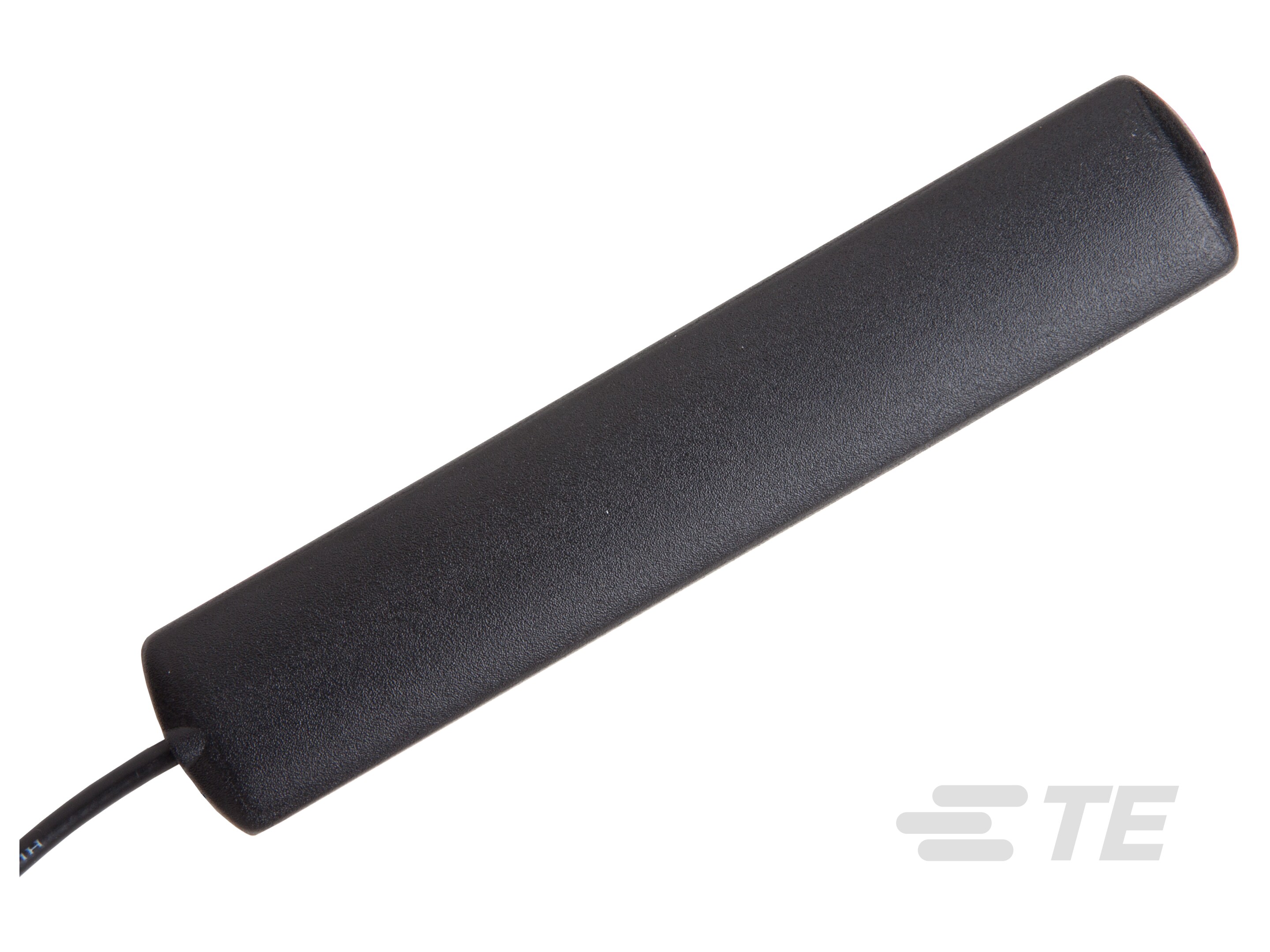

Module Antenna, Multi Band, Cellular, Remote Mount, Adhesive Mount, RP-TNC / TNC, Omnidirectional, Single Port, < 0 dBi Peak Gain
ANT-DB1-VDP-TNC
Module Antenna, Multi Band, Cellular, Remote Mount, Adhesive Mount, RP-TNC / TNC, Omnidirectional, Single Port, < 0 dBi Peak Gain
- TE Internal #: ANT-DB1-VDP-TNC
- TE Internal Description: Antenna Vert Tri-Band RG174 3M TNC
-
Antenna Type : Module
-
Band Type : Multi Band
-
Primary Application : Cellular
-
Wireless Application : Cellular
-
Mounting Location : Remote
Documents
Product Drawings
- Dimensional Drawing Antenna Tri-Band adhback 3M coax with conn ENG_CD_C-ANT-DB1-VDP-CCC_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_ANT-DB1-VDP-TNC_A.pdf 3D
- Customer View Model ENG_CVM_CVM_ANT-DB1-VDP-TNC_A.2d_dxf.zip English
- ENG_CVM_CVM_ANT-DB1-VDP-TNC_A.3d_stp.zip English
- ENG_CVM_CVM_ANT-DB1-VDP-TNC_A.3d_igs.zip English
Datasheets & Catalog Pages
- ANT-DB1-VDP-xxx ENG_DS_ANT-DB1-VDP-xxx_A.pdf English
