ANT-GNSSCP-TH25L1

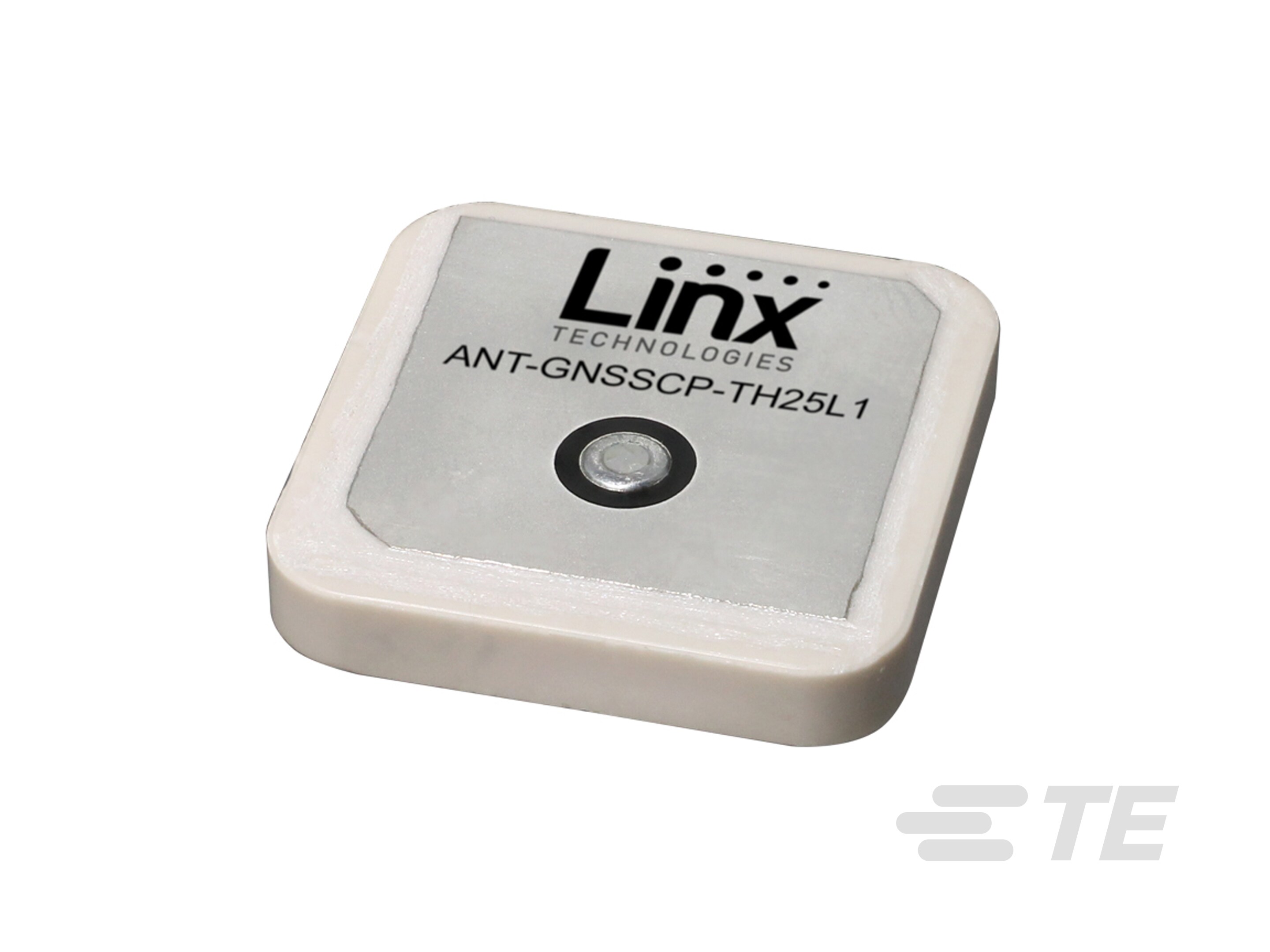

Patch Antenna, Multi Band, GNSS / GPS, Internal/Embedded Mount, Through-Hole/Tab Mount, Solder, Directional, Single Port, 3 < 6 dBi Peak Gain
ANT-GNSSCP-TH25L1
Patch Antenna, Multi Band, GNSS / GPS, Internal/Embedded Mount, Through-Hole/Tab Mount, Solder, Directional, Single Port, 3 < 6 dBi Peak Gain
- TE Internal #: ANT-GNSSCP-TH25L1
- TE Internal Description: Antenna GNSS L1 25x25 THM
-
Antenna Type : Patch
-
Band Type : Multi Band
-
Primary Application : GNSS, GPS
-
Wireless Application : GNSS, GPS
-
Mounting Location : Internal/Embedded
Documents
Product Drawings
- ANT GNSS L1 TH CPA 25X25 ENG_CD_C-ANT-GNSSCP-TH25L1_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_ANT-GNSSCP-TH25L1_A.pdf 3D
- Customer View Model ENG_CVM_CVM_ANT-GNSSCP-TH25L1_A.3d_stp.zip English
- ENG_CVM_CVM_ANT-GNSSCP-TH25L1_A.2d_dxf.zip English
- ENG_CVM_CVM_ANT-GNSSCP-TH25L1_A.3d_igs.zip English
Datasheets & Catalog Pages
- Ceramic Patch GNSS Antenna ENG_DS_ant-gnsscp-th25l1-ds_A.pdf English
