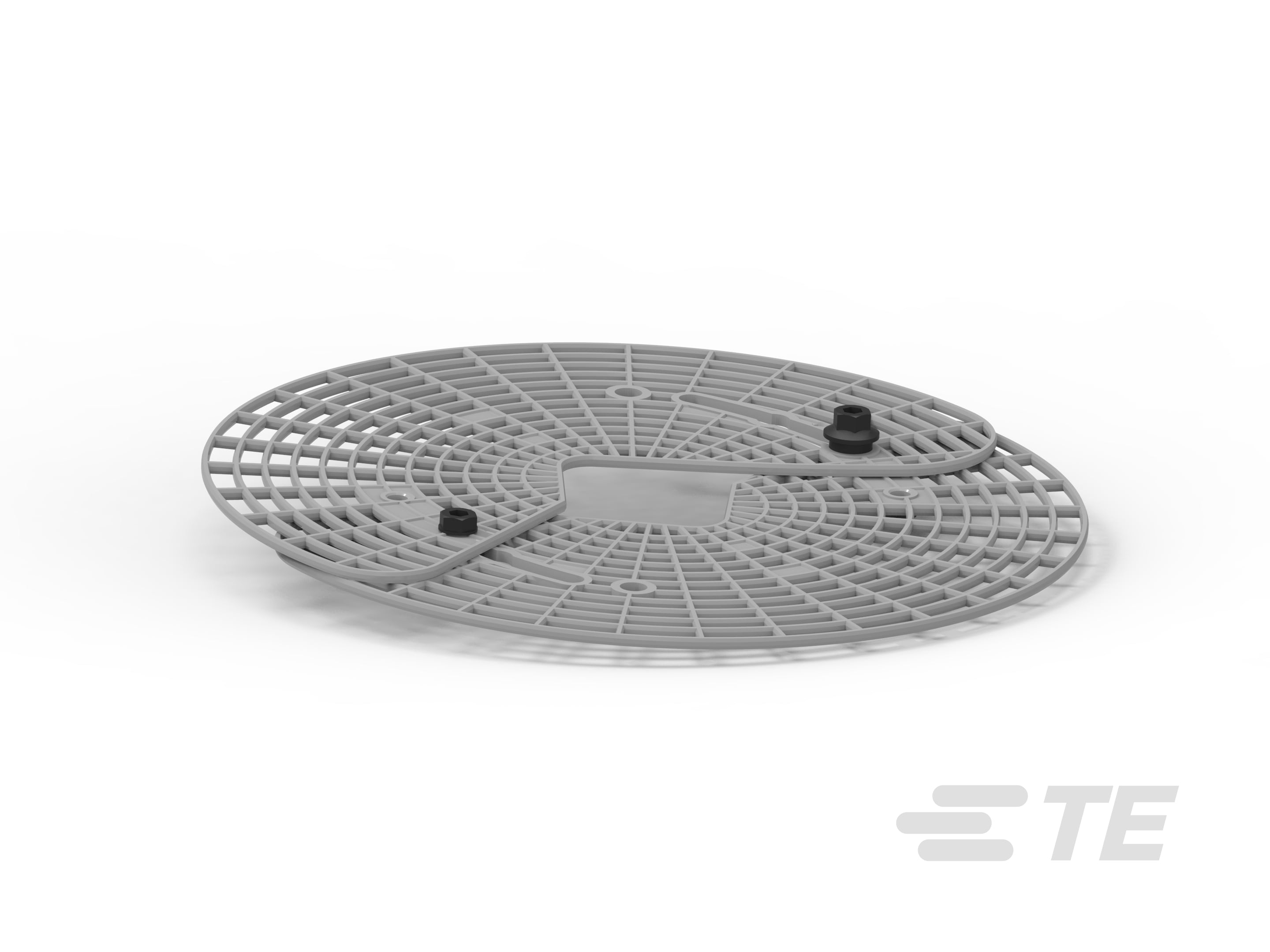

C70612-000
Cold Applied De-energised, Isolation Guard, Switches, Support Insulators, RAYCHEM BISG, Electrical Insulator Covers & Accessories
C70612-000
Cold Applied De-energised, Isolation Guard, Switches, Support Insulators, RAYCHEM BISG, Electrical Insulator Covers & Accessories
-
- RAYCHEM
- RAYCHEM BISG
- TE Internal #: C70612-000
- TE Internal Description: BISG-G-60/115-02(S10)
- Alias #: 9-1201670-4 BISG-G-60/115-02(S10)
- All Bus Insulators: Animal Guard (10)
-
Primary Product Color : Gray
-
Primary Product Material : Crosslinked Polyethylene
-
LV/MV Insulating Cover Product Type : Isolation Guard
-
Insulator Core Diameter Range : 25.4 – 114.3 mm [ 1 – 4.5 in ]
-
Product Availability : Americas, Europe, Middle East & Africa, China, Asia, Australia, New Zealand & Pacific Islands
Documents
Product Drawings
- BISG-60/115 ENG_CD_E00000876_A.pdf English
CAD Files
-
Download ECAD Model File
Download the free Library Loader to convert this file to your ECAD Tool. Learn more about the ECAD Model.
- 3D PDF 3D_CVM_CVM_C70612-000_A.pdf 3D
- Customer View Model ENG_CVM_CVM_C70612-000_A.2d_dxf.zip English
- ENG_CVM_CVM_C70612-000_A.3d_igs.zip English
- ENG_CVM_CVM_C70612-000_A.3d_stp.zip English
Datasheets & Catalog Pages
- WILDLIFE & ASSET PROTECTION ENG_CS_IP-CAT-0001-WAP_1903.pdf English
