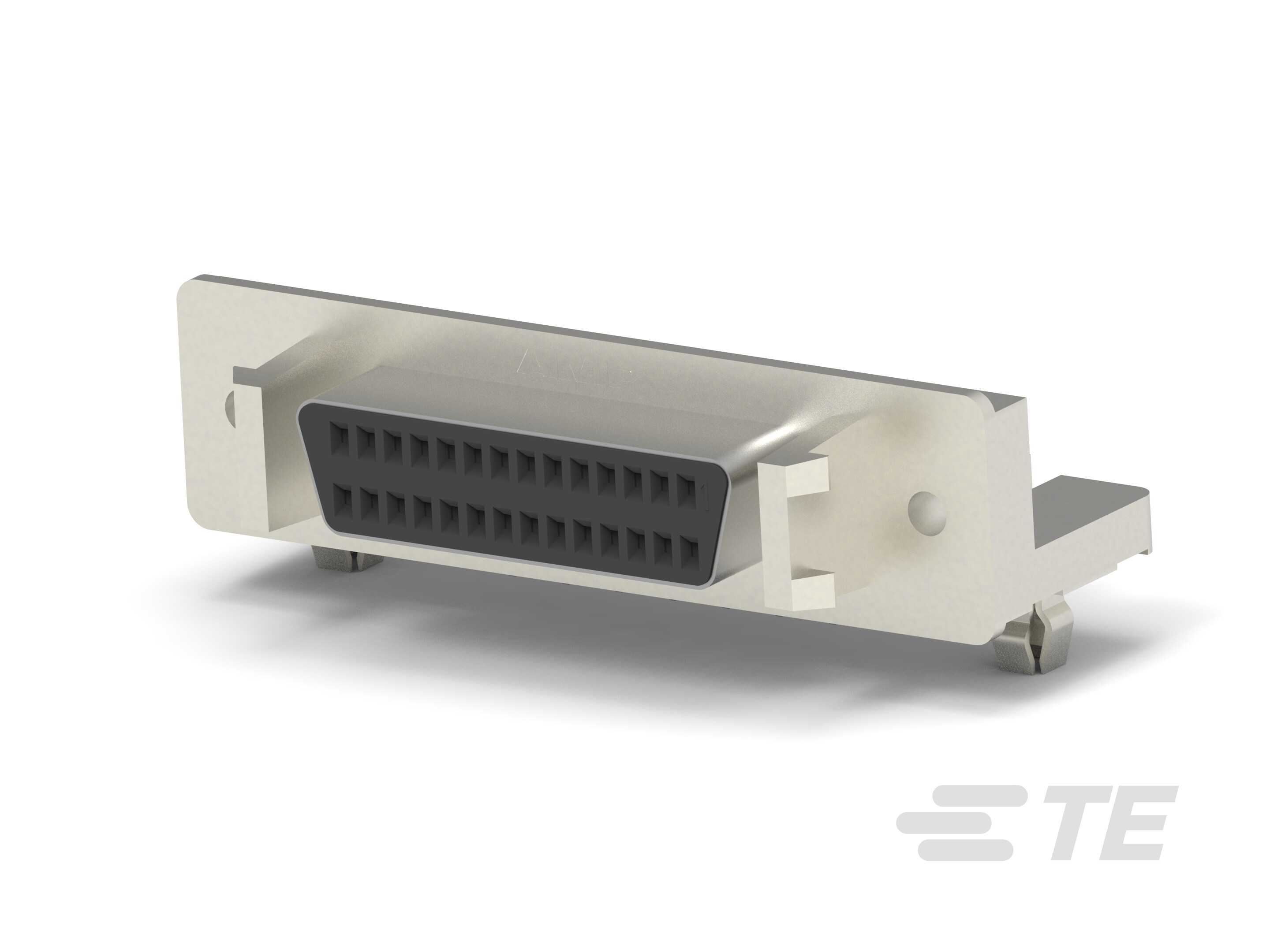

D-Sub Receptacle Assembly: Right Angle, 1.27mm

D-Sub Receptacle Assembly: Right Angle, 1.27mm-CAT-018-DRARA127
PCB D-Sub AMPLIMITE receptacle assembly with a centerline pitch of 1.27mm and right angle PCB mount orientation. Used for signal circuit application and has an operating temperature range of -55 – 105 DEGC.
More Less

Product Features

  • Connector & Housing Type : Receptacle

  • Connector System : Cable-to-Board

  • Number of Positions : 100, 68, 80, 26, 50, 60, 20, 40, 28

  • Centerline (Pitch) : 1.27 mm [ .05 in ]

  • Number of Rows : 4, 2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Tube, Tray, Box & Tube

  • Packaging Quantity  10, 15, 104, 13, 14, 11, 5, 6, 72, 8, 7

Body Features

  • Shell Plating Material  Tin, Nickel, Nickel over Copper

  • Shield Plating Material  Nickel over Copper

  • Assembly Process Feature Material  Copper Alloy

  • Shield Material  Zinc Die Cast

  • Shell Plating Finish  Bright

  • Primary Product Color  Black

  • Connector Profile  Standard

Mechanical Attachment

  • PCB Mount Alignment  With, Without

  • Mounting Feature Material  Zinc

  • Mounting Hole Diameter  2.77 mm [ .109 in ]

  • Mounting Hole Diameter (in) .109

  • Mounting Feature Plating Material  Nickel over Copper

  • Mating Alignment Type  Rails

  • Assembly Process Feature Plating Material  Tin-Lead over Nickel, Tin-Lead, Tin over Nickel

  • Mating Alignment  Without, With

  • Mounting Hole Diameter (mm) 2.77

  • PCB Mount Retention  Without, With

  • PCB Mount Retention Type  Retention Solder Tails, Boardlock, Mounting Hole

  • Mating Retention  With, Without

  • Mating Retention Type  Latch, Screwlocks, Clinch Nut, 5-56 UNC, Latches, Mounting Holes

  • Connector Mounting Type  Panel Mount, Panel Mount & Board Mount, Board Mount

Operation/Application

  • Shielded  Yes, No

  • Circuit Application  Signal

Housing Features

  • Housing Material  PBT, Thermoplastic, PBT GF

  • Shell Material  Steel, Zinc Die Cast, Carbon Steel

  • Centerline (Pitch)  1.27 mm [ .05 in ]

Contact Features

  • Contact Mating Area Plating Material Thickness (µin) 30

  • Contact Base Material  Phosphor Bronze, Copper Alloy

  • Contact Mating Area Plating Material Thickness (µm) .76

  • Contact Options  Installed

  • PCB Contact Termination Area Plating Material  Tin over Nickel, Tin, Tin-Lead, Tin-Lead over Nickel

  • Contact Underplating Material  Palladium Nickel, Nickel

  • Contact Mating Area Plating Material  Tin, Gold, Gold Flash, Gold or Gold Flash

  • Contact Shape & Form  Square

  • Contact Current Rating (Max) (A) 1

Dimensions

  • PCB Thickness (Recommended) (mm) 1.57, 2.36

  • PCB Thickness (Recommended) (in) .093, .062

  • PCB Thickness (Recommended) (mm) 1.57, 2.36

  • PCB Thickness (Recommended) (in) .093, .062

  • Row-to-Row Spacing  2.54 mm [ .1 in ]

Industry Standards

  • Compatible With Approved Standards Products  UL E28476, LR-86179-1

  • UL Flammability Rating  UL 94V-0

Product Type Features

  • Ground Feature Type  Grounding Indents

  • Shell Material Configuration  All Plastic, Full Metal Shell

  • Connector & Housing Type  Receptacle

  • Connector System  Cable-to-Board

  • Connector & Contact Terminates To  Printed Circuit Board

Termination Features

  • Rectangular Termination Post & Tail Thickness (mm) .4, .3

  • Rectangular Termination Post & Tail Thickness (in) .011, .015

  • Termination Method to PCB  Through Hole - Solder, Through Hole - Press-Fit

  • Rectangular Termination Post & Tail Width (mm) .41, .45

  • Rectangular Termination Post & Tail Width (in) .016, .017

  • Termination Post & Tail Length (mm) 2.54, 3.66, 3.1, 3.8, 3.05, 3.6, 2.85

  • Termination Post & Tail Length (in) .112, .15, .142, .122, .12, .144, .1

Configuration Features

  • Number of Positions  100, 68, 80, 26, 50, 60, 20, 40, 28

  • Number of Rows  4, 2

  • PCB Mount Orientation  Right Angle

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant, Not Compliant

  • EU ELV Compliance  Compliant with Exemptions, Compliant, Not Compliant

Reference Number

  • TE Internal Number CAT-018-DRARA127
