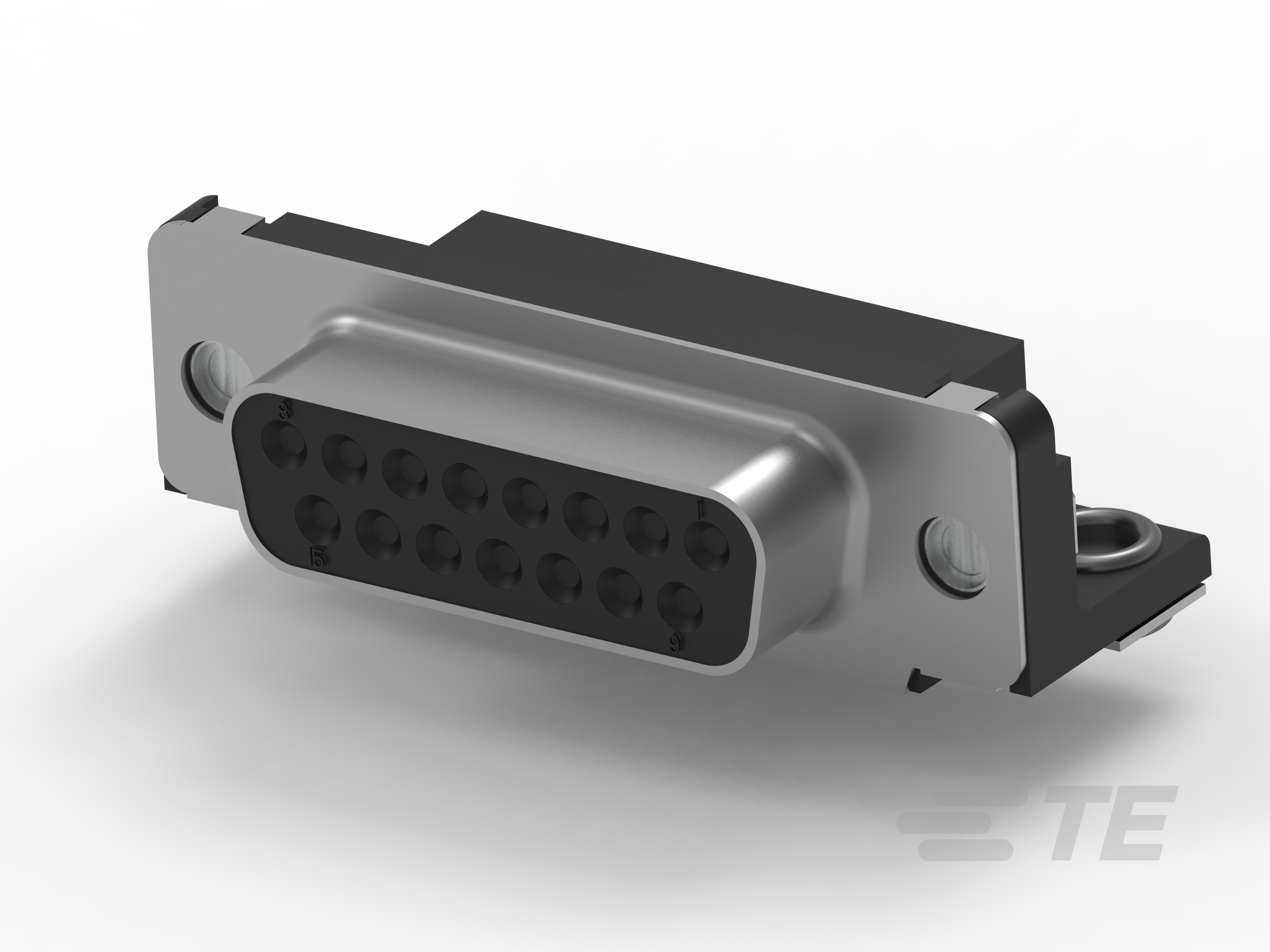

D-Sub Receptacle Assembly: Right Angle, Shell Size 2, 2.74mm

D-Sub Receptacle Assembly: Right Angle, Shell Size 2, 2.74mm-CAT-023-DRARS2274
PCB D-Sub AMPLIMITE receptacle assembly with shell size of 2, a centerline pitch of 2.74mm and right angle PCB mount orientation. Used for signal circuit application and has an operating temperature range of -55 – 105 DEGC.
More Less

Product Features

  • Number of Positions : 15

  • Connector & Housing Type : Receptacle

  • Connector System : Board-to-Board, Cable-to-Board, Wire-to-Board

  • Connector Mounting Type : Board Mount

  • Connector Shell Size : 2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Ground Feature Type  Grounding Straps

  • Shell Material Configuration  All Plastic, Front Metal Shell

  • Connector & Housing Type  Receptacle

  • Connector System  Board-to-Board, Cable-to-Board, Wire-to-Board

  • Connector Shell Size  2

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • Number of Rows  2

  • PCB Mount Orientation  Right Angle

  • Number of Positions  15

Body Features

  • Mating Retention Feature Material  Zinc

  • Connector Profile  Standard

  • Mating Feature Plating Material  Clear Chromate

  • Insert Material  Zinc

  • Primary Product Color  Black

  • Shield Material  Steel

  • Assembly Process Feature Material  Copper Alloy, Phosphor Bronze

  • Shell Plating Material  Tin, Tin over Copper, Zinc

  • Mating Feature Material  Zinc

  • Shield Plating Material  Tin

Contact Features

  • Contact Mating Area Plating Material  Gold (Au), Gold Flash

  • Contact Base Material  Phosphor Bronze

  • PCB Contact Termination Area Plating Material  Tin, Tin-Lead

  • Contact Underplating Material  Nickel

  • Contact Shape & Form  Round, Square

  • Contact Mating Area Plating Material Thickness (µin) 30

  • Contact Current Rating (Max) (A) 2, 3, 6

  • Contact Options  Installed

Termination Features

  • Square Termination Post & Tail Dimension  .63 mm [ .025 in ]

  • Termination Method to PCB  Through Hole - Solder

  • Rectangular Termination Post & Tail Width  .45 mm [ .017 in ]

  • Rectangular Termination Post & Tail Thickness  .32 mm [ .012 in ]

  • Termination Post & Tail Length (mm) 3.18, 3.2

  • Termination Post & Tail Length (in) .125, .126

  • Termination Post & Tail Diameter (mm) .63, .66

  • Termination Post & Tail Diameter (in) .025, .026

Mechanical Attachment

  • PCB Mount Retention Type  Boardlock, Mounting Hole

  • PCB Mount Alignment  With

  • Mounting Hole Diameter (in) .12, .125

  • Mating Retention  With, Without

  • Mating Alignment  With

  • Mounting Hole Diameter (mm) 3.05, 3.18

  • Mounting Feature Plating Material  Tin

  • Assembly Process Feature Plating Material  Tin, Tin-Lead, Tin-Lead over Nickel, Tin over Nickel

  • Mounting Hole Diameter (mm) 3.05, 3.18

  • Mounting Hole Diameter (in) .12, .125

  • PCB Mount Retention  With

  • Mounting Feature Material  Brass

  • Mating Retention Feature Plating Material  Clear Chromate

  • Mating Retention Type  4-40 Screwlock, Female Screwlocks, 4-40 UNC, Female Screwlocks, Fixed, Threaded Insert, 4-40 UNC, Threaded Insert, M3, Threaded Inserts, Threaded Inserts, 4-40 UNC

  • Connector Mounting Type  Board Mount

Housing Features

  • Housing Material  Nylon GF, PBT GF, Polyester GF, Thermoplastic

  • Shell Material  Carbon Steel, Steel

  • Centerline (Pitch) (mm) 2.74, 2.77

  • Centerline (Pitch) (in) .108, .109

Dimensions

  • PCB Thickness (Recommended) (mm) 1.57, 1.58, 2.36

  • PCB Thickness (Recommended) (in) .062, .093

  • Row-to-Row Spacing (mm) 2.54, 2.84

  • Row-to-Row Spacing (in) .1, .111, .112

Usage Conditions

  • Operating Temperature Range (°C) -55 – 85, -55 – 105

  • Operating Temperature Range (°F) -67 – 185, -67 – 221

Operation/Application

  • Shielded  No, Yes

  • Durability Rating (Cycles) 200

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Compatible With Approved Standards Products  DIN 41652, UL E28476

Packaging Features

  • Packaging Quantity  13, 45, 104, 112, 130

  • Packaging Method  Box, Box & Tray, Package, Tray, Tube

Reference Number

  • TE Internal Number CAT-023-DRARS2274
