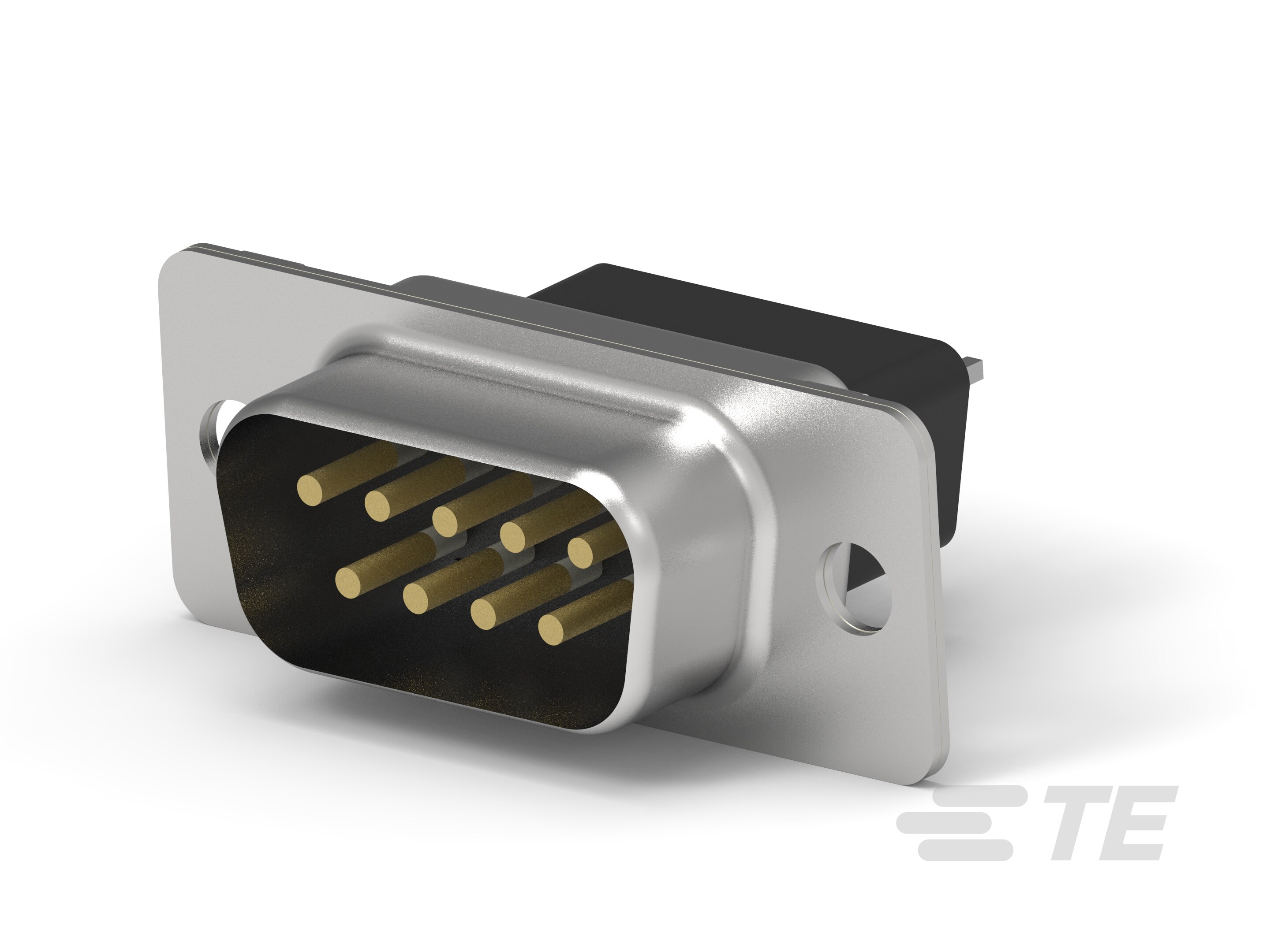

D-Sub Plug Assembly: Standard, Vertical, Shell Size 1, 2.74mm

D-Sub Plug Assembly: Standard, Vertical, Shell Size 1, 2.74mm-CAT-025-DPAVS1274
PCB D-Sub AMPLIMITE plug assembly with a shell size of 1. These parts have a centerline pitch of 2.74mm with vertical PCB mount orientation. Has an operating temperature range of -55 – 105 DEGC.
More Less

Product Features

  • Number of Positions : 9

  • Connector & Housing Type : Plug

  • Connector System : Board-to-Board, Cable-to-Board, Wire-to-Board

  • Connector Mounting Type : Board Mount

  • Connector Shell Size : 1

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Ground Feature Type  Grounding Indents

  • Shell Material Configuration  All Plastic, Front Metal Shell, Full Metal Shell

  • Connector & Housing Type  Plug

  • Connector System  Board-to-Board, Cable-to-Board, Wire-to-Board

  • Connector Shell Size  1

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • Number of Rows  2

  • PCB Mount Orientation  Vertical

  • Number of Positions  9

Body Features

  • Mating Retention Feature Material  Brass

  • Connector Profile  High, Standard

  • Mating Feature Plating Material  Nickel over Copper Flash

  • Insert Material  Brass, Polyamide, GV, Thermoplastic

  • Shell Plating Finish  Bright

  • Primary Product Color  Black

  • Assembly Process Feature Material  Phosphor Bronze

  • Shell Plating Material  Tin, Zinc

  • Mating Feature Material  Brass, Zinc

Contact Features

  • Contact Mating Area Plating Material  Gold (Au), Gold Flash

  • PCB Termination Area Plating Finish  Bright

  • Contact Base Material  Brass, Phosphor Bronze

  • PCB Contact Termination Area Plating Material  Tin, Tin-Lead

  • Contact Underplating Material  Nickel, Palladium Nickel

  • Contact Shape & Form  Round, Square

  • Contact Mating Area Plating Material Thickness (µin) 30

  • Contact Current Rating (Max) (A) 1.5, 2.7, 6, 6.4

  • Contact Options  Installed

Termination Features

  • Square Termination Post & Tail Dimension  .63 mm [ .025 in ]

  • Termination Method to PCB  Through Hole - Solder

  • Rectangular Termination Post & Tail Width  .45 mm [ .017 in ]

  • Rectangular Termination Post & Tail Thickness  .32 mm [ .012 in ]

  • Termination Post & Tail Length (mm) 3.18, 3.2, 4.32, 4.78

  • Termination Post & Tail Length (in) .125, .126, .17, .188

  • Termination Post & Tail Diameter (mm) .6, .66

  • Termination Post & Tail Diameter (in) .023, .026

Mechanical Attachment

  • PCB Mount Retention Type  4-40 Retention Insert, Boardlock, Mounting Hole

  • Mounting Hole Diameter (in) .12, .121

  • Mating Retention  With, Without

  • Mounting Hole Diameter (mm) 3.05, 3.07

  • Assembly Process Feature Plating Material  Tin

  • Mounting Hole Diameter (mm) 3.05, 3.07

  • Mounting Hole Diameter (in) .12, .121

  • PCB Mount Retention  With, Without

  • Mating Retention Type  4-40 Screwlock, Clinch Nut, 4-40 UNC, Female Screwlocks, 4-40 UNC, Female Screwlocks, Fixed, Female Screwlocks, M3, Retension Inserts, Threaded Insert, 4-40 UNC, Threaded Insert, M3, Threaded Inserts, 4-40 UNC

  • Connector Mounting Type  Board Mount

Housing Features

  • Housing Material  Nylon GF, PBT GF, Polyester, Polyester GF, Thermoplastic

  • Shell Material  Carbon Steel, Steel

  • Centerline (Pitch) (mm) 2.74, 2.77

  • Centerline (Pitch) (in) .108, .109

Dimensions

  • PCB Thickness (Recommended) (mm) 1.57, 1.6, 2.36, 2.36 – 3.18, 1.57 – 2.36

  • PCB Thickness (Recommended) (in) .062, .063, .093, .062 – .093, .093 – .125

  • Row-to-Row Spacing (mm) 2.84

  • Row-to-Row Spacing (in) .111, .112

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Shielded  No

  • Durability Rating (Cycles) 200

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Compatible With Approved Standards Products  DIN 41652, UL E28476

Packaging Features

  • Packaging Quantity  17, 55

  • Packaging Method  Box & Tray, Tray, Tube

Reference Number

  • TE Internal Number CAT-025-DPAVS1274
