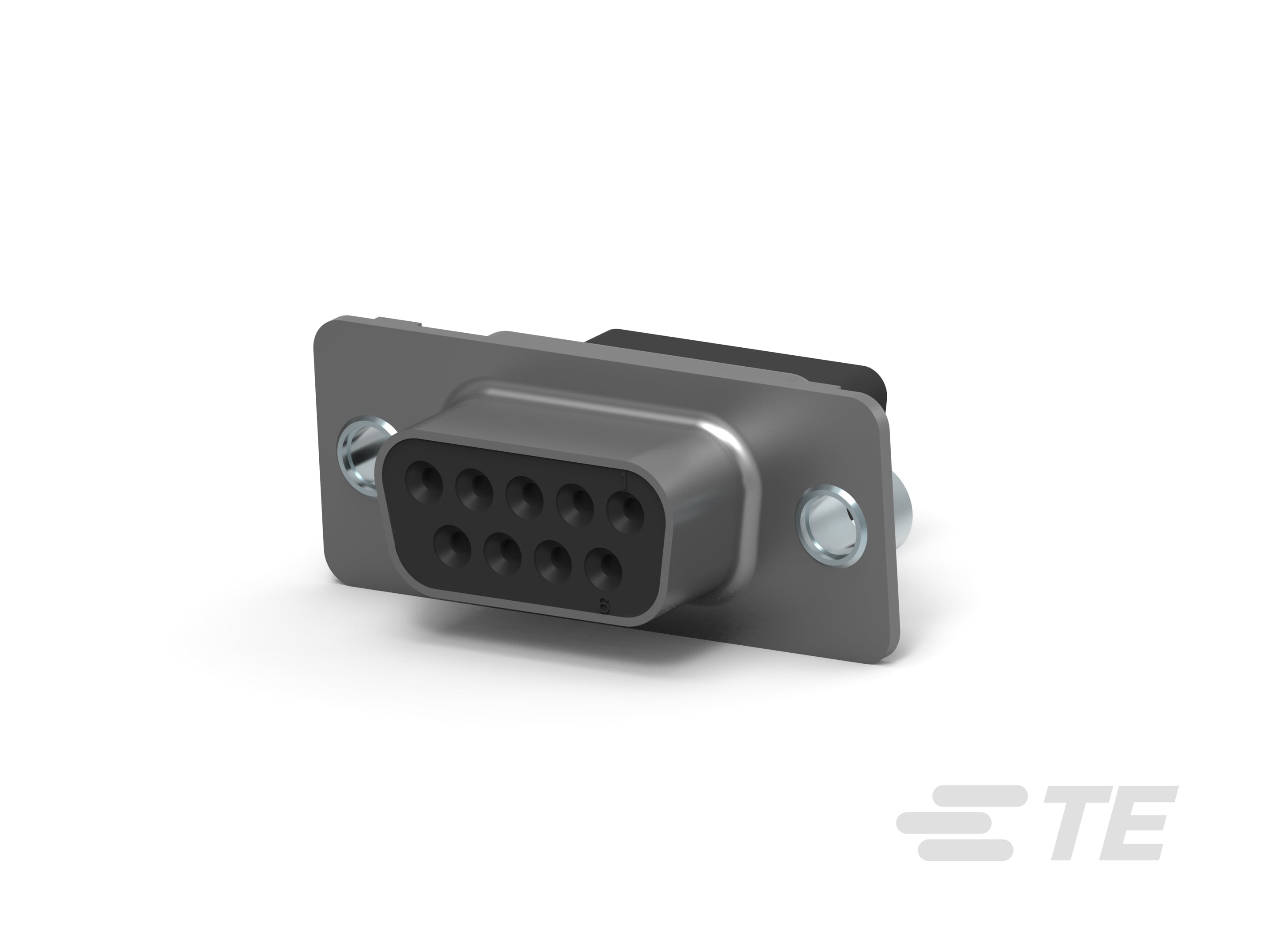

D-Sub Crimp Recpt Signal 9 Posn, Socket Size 20, Shell Size 1

D-Sub Crimp Recpt Signal 9 Posn, Socket Size 20, Shell Size 1-CAT-035-DCRSS201
D-Sub crimp receptacle connectors with shell size 1 accepts socket contacts of size 20, intended for cable to cable application and available in 9 positions. Used for signal circuit application and has an operating temperature of -55 – 105 DEGC.
More Less

Product Features

  • Connector & Housing Type : Receptacle

  • Connector System : Cable-to-Cable, Cable-to-Panel

  • Number of Positions : 9

  • Contact Size : Size 20

  • Connector Shell Size : 1

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Kit, Package, Bulk Kit, Bag, Box

  • Packaging Quantity  800, 1, 100, 50

Dimensions

  • Wire Size (AWG) 24 – 20

  • Compatible Insulation Diameter Range (mm) 4.83 – 8.38, 4.58 – 11.68, 4.19 – 11.56, 4.7 – 8.13

  • Wire Size (mm²) .2 – .56

Product Type Features

  • Shell Material Configuration  Full Metal Shell

  • Connector Seal & Plug Type  Grommet Seal

  • Connector & Contact Terminates To  Wire & Cable

  • Connector & Housing Type  Receptacle

  • Connector System  Cable-to-Cable, Cable-to-Panel

  • Connector Shell Size  1

  • Sealable  No

Operation/Application

  • Circuit Application  Signal

  • Shielded  No, Yes

Contact Features

  • Contact Options  Supplied – Uninstalled, Order Separately

  • Contact Size  Size 20

  • Contact Current Rating (Max) (A) 3.7

Body Features

  • Shell Plating Material  Zinc, Tin, Tin over Copper

  • Insert Material  Nylon GF, Glass-Filled PBT/Nylon, PBT, Thermoplastic, Glass-Filled Nylon/Polyester

  • Mating Retention Feature Material  Zinc Alloy, Stainless Steel

  • Shield Plating Material  Tin

  • Primary Product Color  Black

  • Shield Material  Steel

Housing Features

  • Housing Material  Polyester GF, Nylon GF, Thermoplastic

  • Shell Material  Steel

  • Centerline (Pitch) (mm) 2.79, 2.77, 1.38, 2.74, 1.37

  • Centerline (Pitch) (in) .054, .11, .108, .109

Industry Standards

  • UL Flammability Rating  UL 94V-0

Mechanical Attachment

  • Mounting Feature Plating Material  Zinc

  • Mounting Feature Material  Steel

  • Mating Retention  With

  • Mating Retention Type  Jackscrew, Mounting Screws, Mounting Holes, Clinch Nut, 4-40 UNC, Retainer Clip

  • Connector Mounting Type  Panel Mount

Termination Features

  • Termination Method to Wire & Cable  Crimp

Configuration Features

  • Number of Positions  9

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Other

  • EU RoHS Compliance  Compliant, Compliant with Exemptions

  • EU ELV Compliance  Compliant, Compliant with Exemptions

Reference Number

  • TE Internal Number CAT-035-DCRSS201
