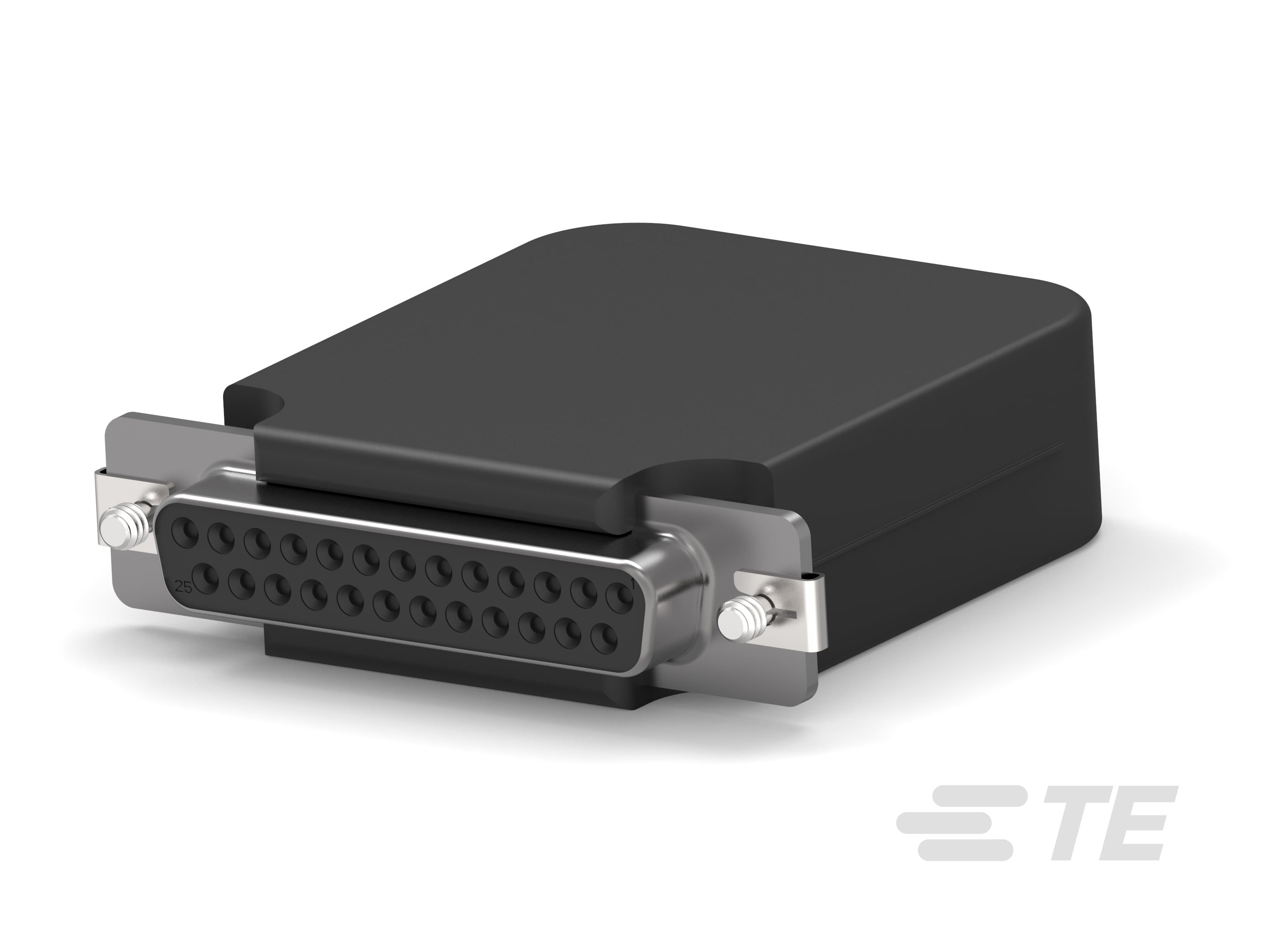

D-Sub Crimp Recpt Signal 25 Posn, Socket Size 20, Shell Size 3

D-Sub Crimp Recpt Signal 25 Posn, Socket Size 20, Shell Size 3-CAT-035-DCRSS203
D-Sub crimp receptacle connectors with shell size 3 accepts socket contacts of size 20, intended for cable to cable application and available in 25 positions. Used for signal circuit application and has an operating temperature of -55 – 105 DEGC.
More Less

Product Features

  • Packaging Method : Box, Kit, Package, Bulk Kit

  • Operating Temperature Range : -55 – 105 °C [ -67 – 221 °F ]

  • Primary Product Color : Black

  • Termination Method to Wire & Cable : Crimp

  • Insert Material : PBT, Nylon GF, Glass-Filled Nylon, Thermoplastic, PBT GF

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Seal & Plug Type  Grommet Seal

  • Connector System  Cable-to-Cable

  • Sealable  No

  • Connector & Housing Type  Receptacle

  • Connector & Contact Terminates To  Wire & Cable

  • Connector Shell Size  3

  • Shell Material Configuration  Full Metal Shell

Configuration Features

  • Number of Positions  25

Body Features

  • Primary Product Color  Black

  • Insert Material  PBT, Nylon GF, Glass-Filled Nylon, Thermoplastic, PBT GF

  • Shell Plating Material  Tin, Tin over Copper, Zinc

  • Shield Material  Steel

  • Mating Retention Feature Material  Stainless Steel, Zinc Alloy

  • Shield Plating Material  Steel, Tin

Contact Features

  • Contact Options  Order Separately, Supplied – Uninstalled

  • Contact Size  Size 20

Termination Features

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Mounting Feature Plating Material  Zinc

  • Mating Retention Type  Jackscrew, Mounting Screws, Mounting Holes, Clinch Nut, 4-40 UNC, Retainer Clip

  • Mating Retention  With

  • Mounting Feature Material  Steel

Housing Features

  • Housing Material  Thermoplastic, Nylon GF, Polyester GF

  • Centerline (Pitch) (mm) 2.74, 2.76, 2.79

  • Centerline (Pitch) (in) .108, .109, .11

  • Shell Material  Steel

Dimensions

  • Wire Size (mm²) .2 – .56

  • Compatible Insulation Diameter Range (mm) 1.73, 4.19 – 11.56, 4.58 – 11.68, 4.7 – 8.13, 5.51 – 11.05

  • Wire Size (AWG) 24 – 20

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Shielded  Yes, No

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Box, Kit, Package, Bulk Kit

  • Packaging Quantity  1, 5, 50, 400

Reference Number

  • TE Internal Number CAT-035-DCRSS203
