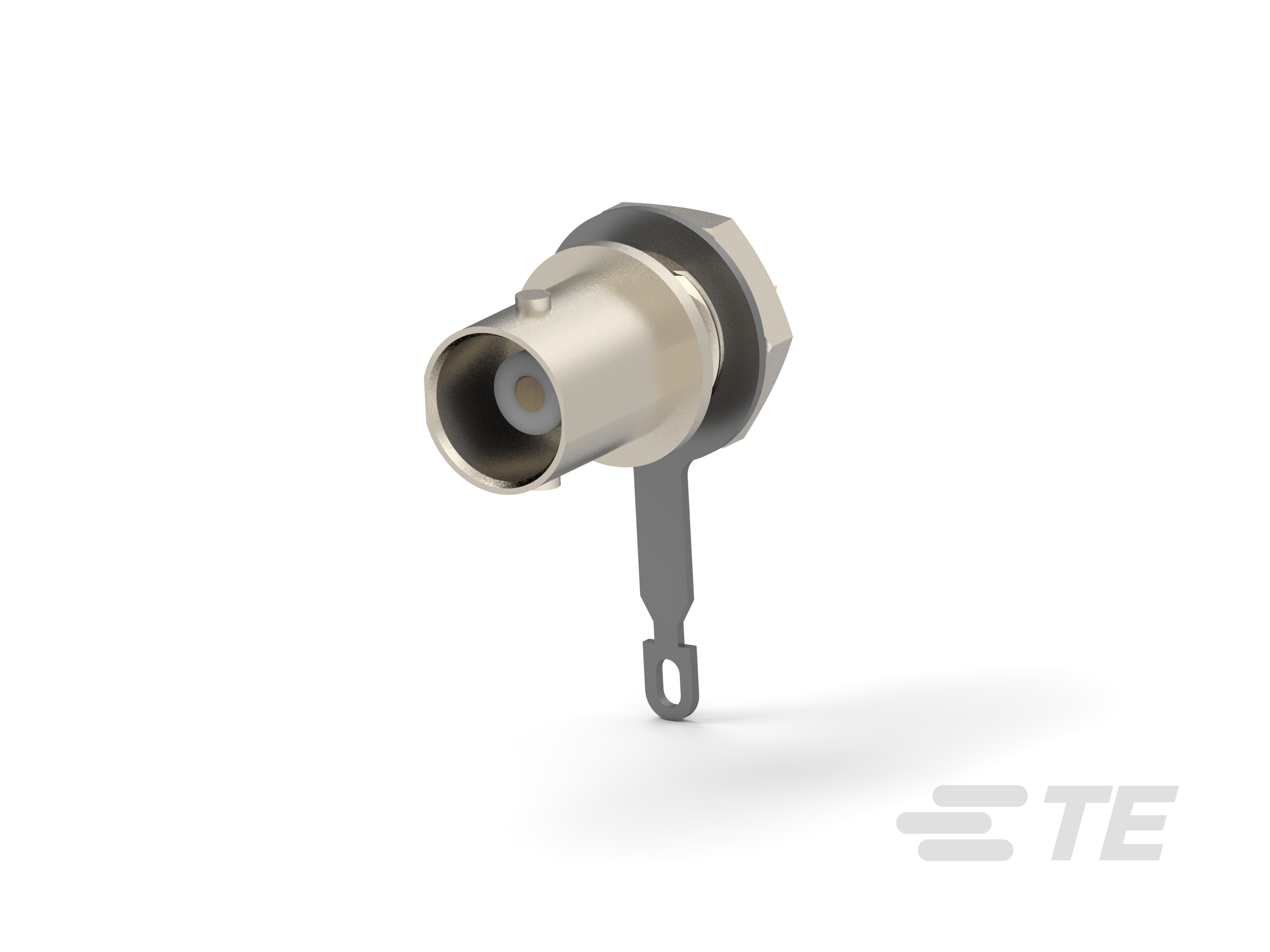

BNC RF Connector: jack assembly - short, 50 Ohm, 4Ghz

Please review product documents or contact us for the latest agency approval information.

• Connector Shape  Circular

• RF Interface  BNC

• RF Connector Style  Jack

• Connector System  Cable-to-Panel, Cable-to-Board

• Sealable  No

• Connector & Contact Terminates To  Wire & Cable

• Grade  Commercial

• Additional Features  Hardware Included

• Dielectric Material  VALOX

• EU RoHS Compliance  Compliant with Exemptions

• EU ELV Compliance  Compliant with Exemptions

• Panel Thickness (Recommended)  1.17 – 3.18 mm [ .046 – .125 in ]

• RF Connector Mated Outer Diameter (Approximate)  14.53 mm [ .572 in ]

• Insulation Option  Uninsulated

• Operating Temperature Range  -55 – 85 °C [ -67 – 185 °F ]

• RF Connector Center Contact Underplating Material  Nickel, Copper

• RF Connector Center Contact Plating Thickness (µin) 762, 5080, 7620

• RF Connector Center Contact Plating Material  Tin, Silver, Gold

• RF Connector Center Contact Material  Phosphor Bronze

• Panel Attachment Style  Front Mount

• PCB Mount Retention  Without

• RF Connector Coupling Mechanism  Bayonet

• Connector Mounting Type  Panel Mount

• RF Contact Captivation Method  Mechanical

• Detent  With

• Impedance (Ω) 50

• Operating Frequency (GHz) 4

• Number of Positions  1

• Number of Coaxial Contacts  1

• Cable Connector Orientation  Straight

• Body Material  Zinc

• Body Plating Material  Nickel

• Termination Method to Wire & Cable  Solder Terminal

• Packaging Method  Carton
