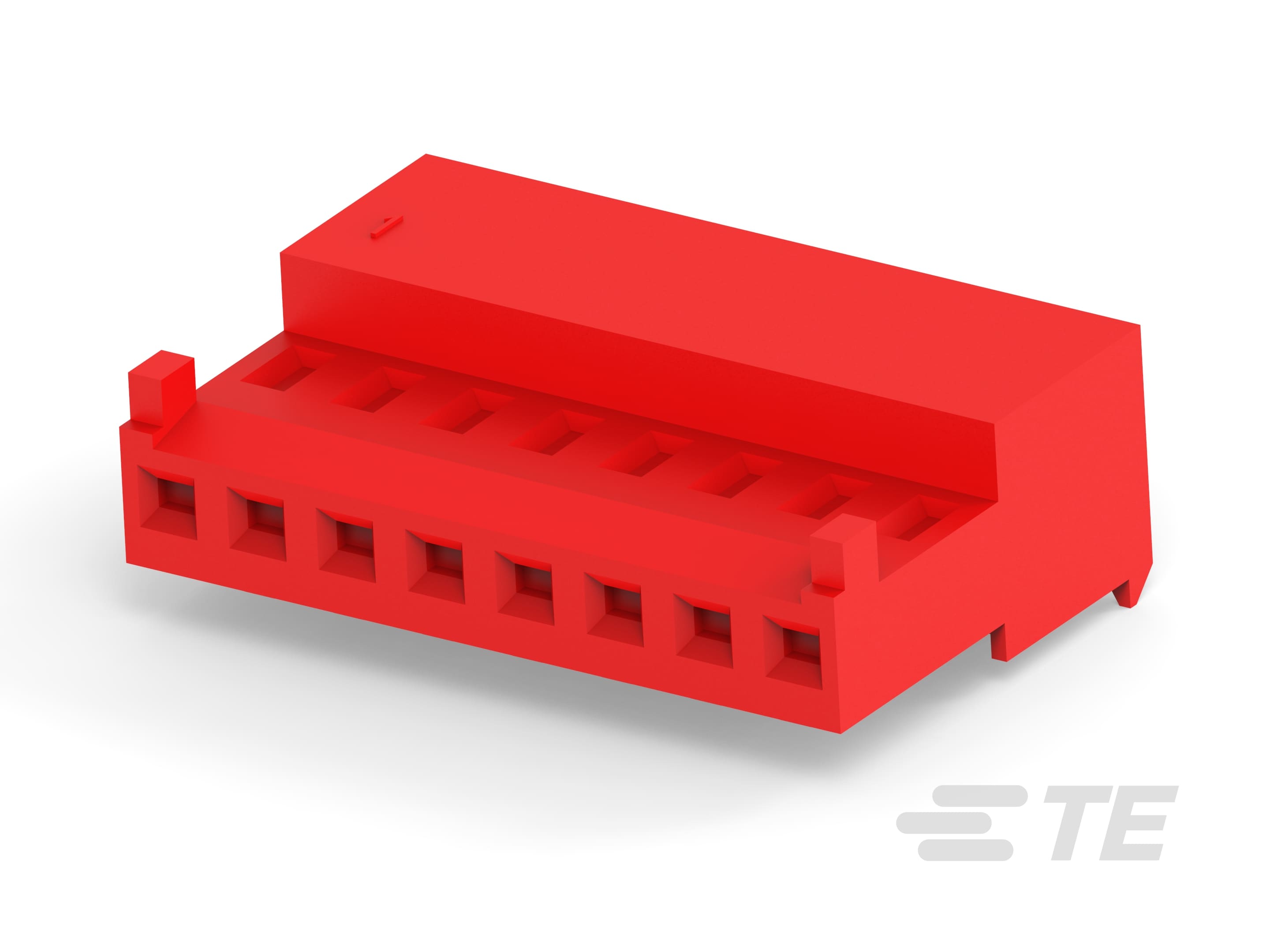

Nylon Gold Plated Receptacle: 2.54 mm, with Mating Alignment, MTA 100

Nylon Gold Plated Receptacle: 2.54 mm, with Mating Alignment, MTA 100-CAT-104MTA-NGPMR
Nylon Gold Plated Receptacle: 2.54mm, Standard Rectangular Connectors, Connector Assembly, Polarization Mating Alignment Type, MTA 100
More Less

Product Features

  • Connector Product Type : Connector Assembly

  • Connector & Housing Type : Receptacle

  • Mating Alignment : With

  • Mating Alignment Type : Polarization

  • Mating Retention : With

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Packaging Features

  • Packaging Method  Package, Bag, Box, Bag/Box, Tape, Box & Carton

  • Packaging Quantity  250, 1000, 500

Dimensions

  • Wire Size (AWG) 26, 22, 24, 28

  • Compatible Insulation Diameter (Max)  1.52 mm [ .06 in ]

  • Connector Height (mm) 13.21, 6.99

  • Connector Height (in) .275, .52

  • Product Length (mm) 30.48, 27.94, 17.78, 10.16, 25.4, 7.62, 15.24, 40.64, 22.86, 38.1, 35.56, 5.08, 12.7, 20.32

  • Product Length (in) .6, .9, 1.4, .4, .3, .7, .5, .8, .2, 1.6, 1.2, 1.1, 1.5, 1

  • Product Width (mm) 6.99, 7.75, 13.21

  • Product Width (in) .305, .275, .52

  • Wire Size (mm²) .2, .08 – .09, .12 – .15, .3 – .4

Configuration Features

  • Number of Cavities  3, 9, 2, 11, 4, 12, 14, 15, 6, 8, 5, 7, 10, 16

  • Contacts Preloaded  Yes

  • Number of Positions  12, 11, 3, 6, 8, 7, 16, 10, 5, 15, 14, 4, 2, 9

  • Number of Rows  1

Industry Standards

  • UL Rating  Recognized

  • Compatible With Agency/Standards Products  UL, CSA

  • Compatible With Approved Standards Products  UL E28476

  • CSA Rating  LR 7189

  • UL Flammability Rating  UL 94V-0, UL 94V-2

Contact Features

  • Wire Contact Termination Area Plating Material  Tin

  • Contact Type  Receptacle

  • Contact Underplating Material  Nickel

  • Contact Mating Area Plating Material  Gold, Gold Flash over Palladium Nickel

  • Contact Retention Within Housing  With

  • Contact Current Rating (Max) (A) 7, 5

Mechanical Attachment

  • Contact Retention Type Within Housing  Locking Lance

  • Mating Alignment  With

  • Mating Alignment Type  Polarization

  • Mating Retention  With

  • Mating Retention Type  Locking Ramp

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Housing Material  Nylon 6/6, Nylon

  • Housing Color  Green, Black, Blue, White, Red

  • Centerline (Pitch)  2.54 mm [ .1 in ]

Product Type Features

  • Compatible With Discrete Wire Type  Stranded

  • Connector Product Type  Connector Assembly

  • Connector & Housing Type  Receptacle

  • Connector System  Wire-to-Board

  • Insertion Force Type  Normal

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Termination Features

  • Termination Method to Wire & Cable  Insulation Displacement (IDC)

Electrical Characteristics

  • Operating Voltage (VAC) 250

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Shielded  No

  • Circuit Application  Signal

Other

  • EU RoHS Compliance  Compliant

  • EU ELV Compliance  Compliant

Reference Number

  • TE Internal Number CAT-104MTA-NGPMR
