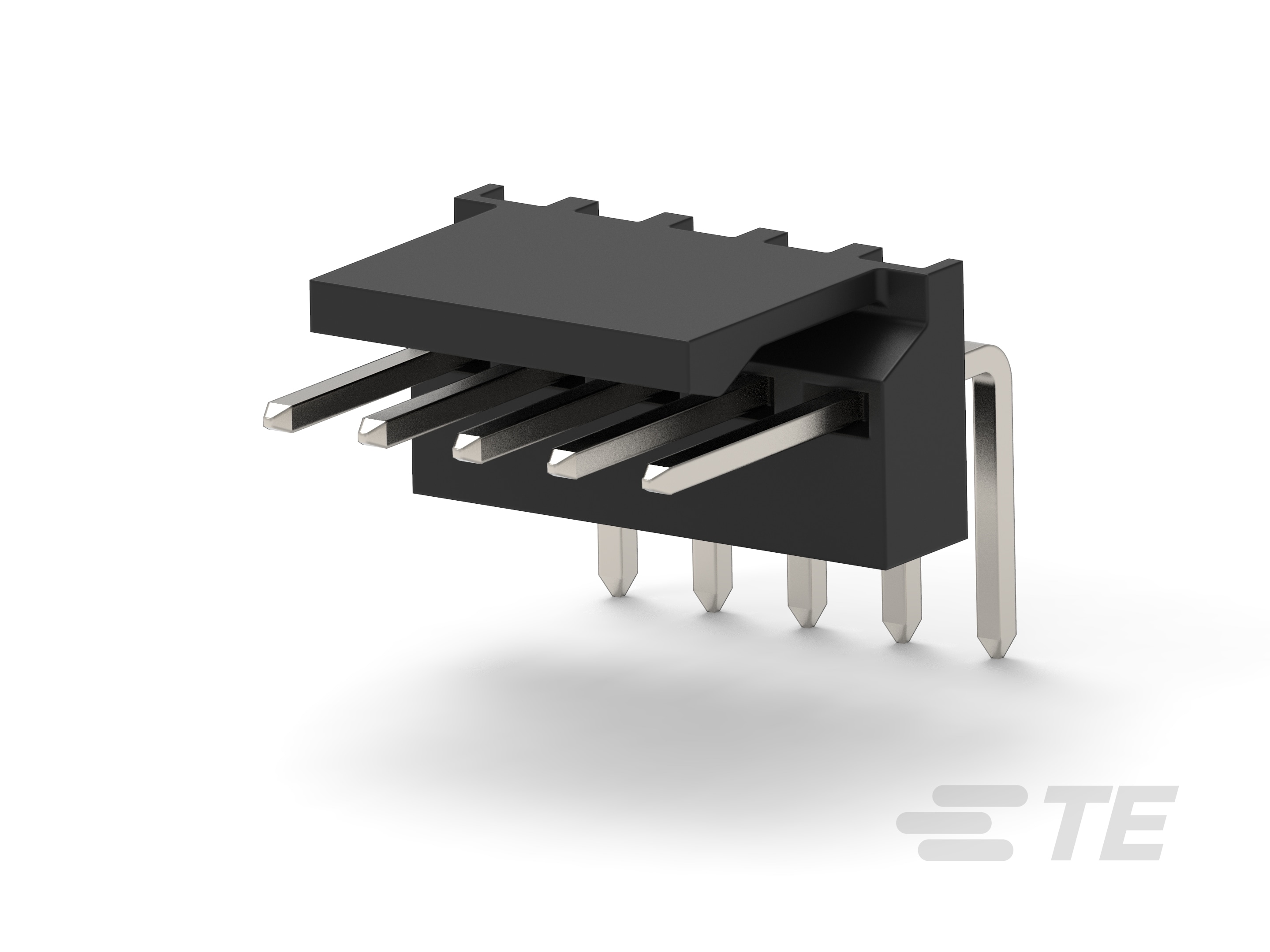

PCB Header: Nylon, Right Angle, 2.54 mm

PCB Header: Nylon, Right Angle, 2.54 mm-CAT-104MTA-NRTHH
Nylon Right Angle PCB Header: 2.54mm, Wire-to-Board, Through Hole, 1 Row, Black Housing Color, Unshrouded, MTA 100.
More Less

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Right Angle

  • Connector System : Wire-to-Board

  • Number of Positions : 2, 3, 5, 6, 8, 10

  • Number of Rows : 1

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Partially Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • PCB Mount Orientation  Right Angle

  • Number of Positions  2, 3, 5, 6, 8, 10

  • Number of Rows  1

Electrical Characteristics

  • Operating Voltage (VAC) 250

Body Features

  • Primary Product Color  Black

Contact Features

  • Contact Underplating Material  Nickel

  • Contact Layout  Inline

  • Contact Mating Area Length  7.37 mm [ .29 in ]

  • PCB Contact Termination Area Plating Material Thickness (µm) 3.81 – 6.3, 3.81 – 8.89

  • PCB Contact Termination Area Plating Material Thickness (µin) 150 – 350, 150 – 250

  • Contact Mating Area Plating Material Finish  Bright, Matte

  • PCB Contact Termination Area Plating Material Finish  Matte

  • Mating Square Post Dimension  .64 mm [ .025 in ]

  • Contact Shape & Form  Square

  • Contact Underplating Material Thickness  1.27 µm [ 50 µin ]

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material Thickness (µm) .381, .76, 3.81 – 6.3

  • Contact Mating Area Plating Material Thickness (µin) 15, 30, 150 – 250

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Mating Area Plating Material  Gold (Au), Tin (Sn)

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 5

Termination Features

  • Square Termination Post & Tail Dimension  .64 mm [ .025 in ]

  • Termination Post & Tail Length  3.56 mm [ .14 in ]

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • Mating Retention  With

  • Panel Mount Feature  Without

  • Mating Alignment Type  Polarization

  • Mating Retention Type  Friction Lock

  • PCB Mount Retention  Without

  • PCB Mount Alignment  Without

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Housing Material  Nylon 4/6

  • Right Angle Bending Side  Front

  • Centerline (Pitch)  2.54 mm [ .1 in ]

Dimensions

  • PCB Thickness (Recommended)  1.57 mm [ .062 in ]

  • Connector Length (mm) 7.62, 10.16, 17.78

  • Connector Length (in) .3, .4, .7

  • Connector Height (mm) 8.81

  • Connector Height (in) .34, .347

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Signal

Industry Standards

  • Compatible With Approved Standards Products  CSA LR7189, UL E28476

  • Compatible With Agency/Standards Products  CSA, UL

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  500

  • Packaging Method  Bag, Box, Carton

Reference Number

  • TE Internal Number CAT-104MTA-NRTHH
