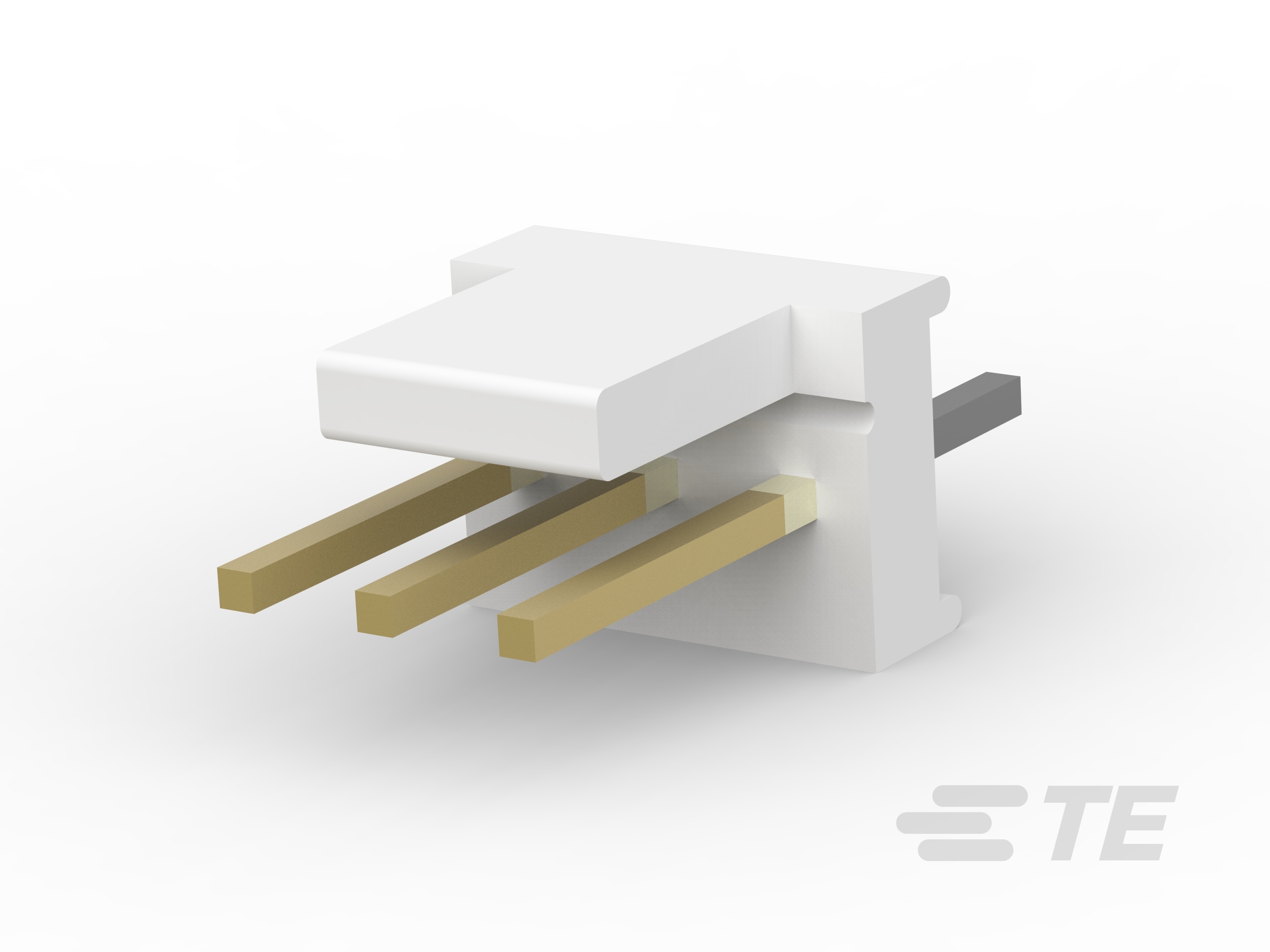

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector System  Wire-to-Board

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Header Type  Partially Shrouded

  • PCB Connector Assembly Type  PCB Mount Header

Configuration Features

  • Number of Positions  2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 20, 21, 24, 26, 28

  • Number of Rows  1

  • PCB Mount Orientation  Vertical

Electrical Characteristics

  • Operating Voltage (VAC) 250

Body Features

  • Primary Product Color  Natural

Contact Features

  • Contact Underplating Material Thickness  1.27 µm [ 50 µin ]

  • Contact Mating Area Plating Material Thickness (µm) .38, 3.81

  • Contact Mating Area Plating Material Thickness (µin) 15, 150

  • Contact Current Rating (Max) (A) 5

  • PCB Contact Termination Area Plating Material Finish  Matte, Bright

  • PCB Contact Termination Area Plating Material Thickness (µm) 3.81, 3.81 – 8.89

  • PCB Contact Termination Area Plating Material Thickness (µin) 150, 150 – 350

  • Contact Layout  Inline

  • Contact Base Material  Copper Alloy

  • Mating Square Post Dimension  .64 mm [ .025 in ]

  • Contact Type  Pin

  • Contact Mating Area Plating Material Finish  Matte, Bright

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Mating Area Length  7.49 mm [ .295 in ]

  • Contact Shape & Form  Square

  • Contact Mating Area Plating Material  Tin, Gold

  • Contact Underplating Material  Nickel

Termination Features

  • Rectangular Termination Post & Tail Width (in) 0

  • Square Termination Post & Tail Dimension  .64 mm [ .025 in ]

  • Termination Post & Tail Length  3.56 mm [ .14 in ]

Mechanical Attachment

  • Mating Alignment  With

  • Panel Mount Feature  Without

  • Mating Alignment Type  Polarization

  • PCB Mount Retention  Without

  • PCB Mount Alignment  Without

  • Mating Retention  Without

  • Connector Mounting Type  Board Mount

Housing Features

  • Housing Material  Polyester - GF

  • Centerline (Pitch)  2.54 mm [ .1 in ]

Dimensions

  • Connector Height  7.75 mm [ .305 in ]

  • PCB Thickness (Recommended)  1.6 mm [ .063 in ]

  • Connector Length (mm) 5.08, 7.62, 10.16, 12.7, 15.24, 17.78, 20.32, 22.86, 27.94, 30.48, 33.02, 35.56, 38.1, 40.64, 43.18, 45.72, 48.26, 53.34, 55.88, 63.5, 68.58, 71.12

  • Connector Length (in) .2, .3, .4, .5, .6, .7, .8, .9, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9, 2.1, 2.2, 2.5, 2.7, 2.8

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Signal

Industry Standards

  • Compatible With Approved Standards Products  CSA LR7189, UL E28476

  • Compatible With Agency/Standards Products  UL, CSA

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Method  Package

  • Packaging Quantity  1

Reference Number

  • TE Internal Number CAT-104MTA-PVUMH
