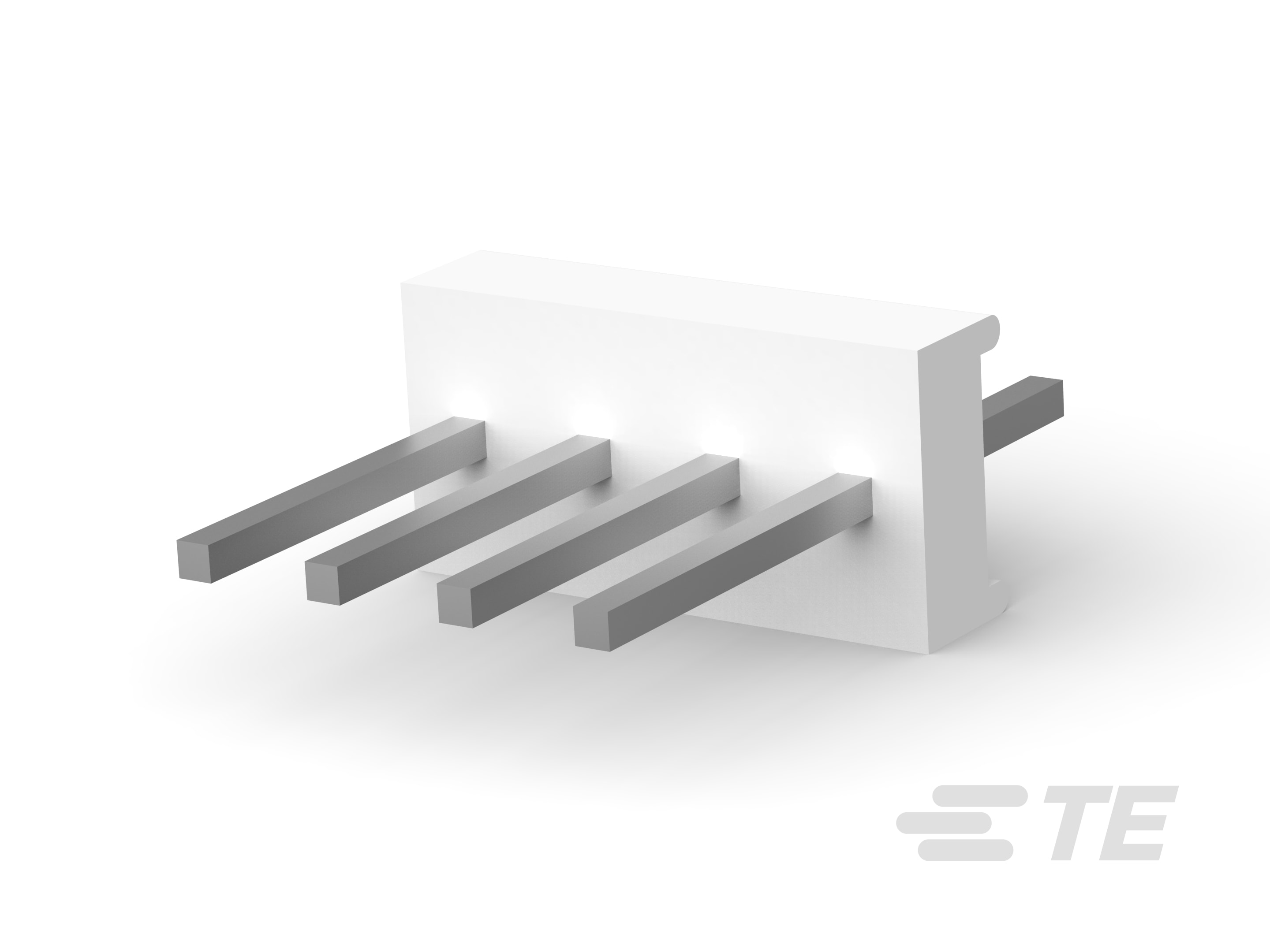

PCB Header: Polyester, Vertical, Unshrouded, No Mating Alignment

PCB Header: Polyester, Vertical, Unshrouded, No Mating Alignment-CAT-104MTA-PVUNH
Polyester Vertical PCB Header: 2.54mm, Wire-to-Board, 2.54mm, 1 Row, Unshrouded, No Mating Alignment, MTA 100
More Less

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Vertical

  • Connector System : Wire-to-Board

  • Number of Positions : 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28

  • Number of Rows : 1

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Partially Shrouded, Unshrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

  • Connector Product Type  Connector Assembly

Configuration Features

  • Number of Columns  2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 22, 24, 25

  • Number of Loaded Positions  2, 3, 4, 5, 6, 8, 9, 12, 17

  • PCB Mount Orientation  Vertical

  • Number of Positions  2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28

  • Number of Rows  1

Electrical Characteristics

  • Operating Voltage (VAC) 250

Body Features

  • Primary Product Color  Black, Natural

Contact Features

  • Contact Mating Area Length (mm) 7.37, 7.49

  • Contact Mating Area Length (in) .29, .295

  • PCB Contact Termination Area Plating Material Thickness (µm) 3.81, 3.81 – 6.35, .15 – .35, 3.81 – 6.3, 3.81 – 8.89

  • PCB Contact Termination Area Plating Material Thickness (µin) 150, 5.9 – 13.78, 150 – 350, 150 – 250, 150 – 248.03

  • PCB Contact Termination Area Plating Material Finish  Bright, Matte

  • Mating Square Post Dimension  .64 mm [ .025 in ]

  • Contact Base Material  Copper Alloy

  • Contact Mating Area Plating Material Thickness (µm) .381, .76, 3.81, 3.81 – 6.3

  • Contact Mating Area Plating Material Thickness (µin) 15, 29.92, 30, 150, 150 – 250, 150 – 248.03

  • PCB Contact Termination Area Plating Material  Tin, Tin-Lead

  • Contact Underplating Material  Nickel

  • Contact Layout  Inline

  • Contact Mating Area Plating Material Finish  Bright, Matte

  • Contact Shape & Form  Square

  • Contact Underplating Material Thickness  1.27 µm [ 50 µin ]

  • Mating Pin Diameter  .64 mm [ .025 in ]

  • Contact Mating Area Plating Material  Gold (Au), Tin (Sn), Tin-Lead

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) 5

Termination Features

  • Square Termination Post & Tail Dimension  .64 mm [ .025 in ]

  • Termination Post & Tail Length (mm) 3.18, 3.43, 3.56

  • Termination Post & Tail Length (in) .125, .135, .14

  • Termination Post & Tail Diameter  .64 mm [ .025 in ]

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • PCB Mount Retention Type  Retention Leg, Tab

  • Mating Retention  With, Without

  • Panel Mount Feature  Without

  • PCB Mount Alignment Type  Pegs

  • Mating Alignment Type  Polarization

  • Mating Retention Type  Friction Lock, Polarized Lock

  • PCB Mount Retention  With, Without

  • PCB Mount Alignment  With, Without

  • Connector Mounting Type  Board Mount, Cable Mount (Free-Hanging)

  • Mating Alignment  With, Without

Housing Features

  • Housing Material  PBT, Polyester GF, Polyester PBT GF, Thermoplastic Polyester

  • Centerline (Pitch)  2.54 mm [ .1 in ]

Dimensions

  • PCB Thickness (Recommended) (mm) 1.5, 1.57, 1.6

  • PCB Thickness (Recommended) (in) .059, .062, .063

  • Connector Length (mm) 5.08, 7.62, 10.16, 12.7, 14.94, 15.24, 17.78, 19.81, 20.32, 22.86, 25.4, 27.94, 30.48, 33.02, 35.56, 35.65, 38.1, 40.64, 43.18, 45.72, 48.26, 50.8, 53.34, 55.88, 58.42, 60.96, 63.5, 68.58, 71.12

  • Connector Length (in) .2, .3, .4, .5, .6, .7, .78, .8, .9, 1, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9, 2, 2.1, 2.2, 2.3, 2.4, 2.5, 2.7, 2.8

  • Connector Height (mm) 2.29, 2.54, 5.72, 7.87, 8.81, 10.03

  • Connector Length (mm) 5.08, 7.62, 10.16, 12.7, 14.94, 15.24, 17.78, 19.81, 20.32, 22.86, 25.4, 27.94, 30.48, 33.02, 35.56, 35.65, 38.1, 40.64, 43.18, 45.72, 48.26, 50.8, 53.34, 55.88, 58.42, 60.96, 63.5, 68.58, 71.12

  • Connector Height (mm) 2.29, 2.54, 5.72, 7.87, 8.81, 10.03

  • Connector Height (in) .09, .1, .225, .31, .34, .395

  • Connector Width (mm) 5.08, 5.71, 6.35, 10.79

  • Connector Width (in) .2, .225, .25, .425

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Signal

Industry Standards

  • Compatible With Approved Standards Products  CSA LR7189, UL E28476

  • Compatible With Agency/Standards Products  CSA, UL

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  1, 250, 500, 1000, 2000, 5000

  • Packaging Method  Bag, Box, Carton, Package

Other

  • Position Locations Omitted  12, 2, 2, 3, 4, 6, 7, 8, 11, 12, 13, 3, 3, 6, 10, 12, 4, 7, 5, 6, 7

  • Number of Blocked Positions  1, 2, 4, 9

Reference Number

  • TE Internal Number CAT-104MTA-PVUNH
