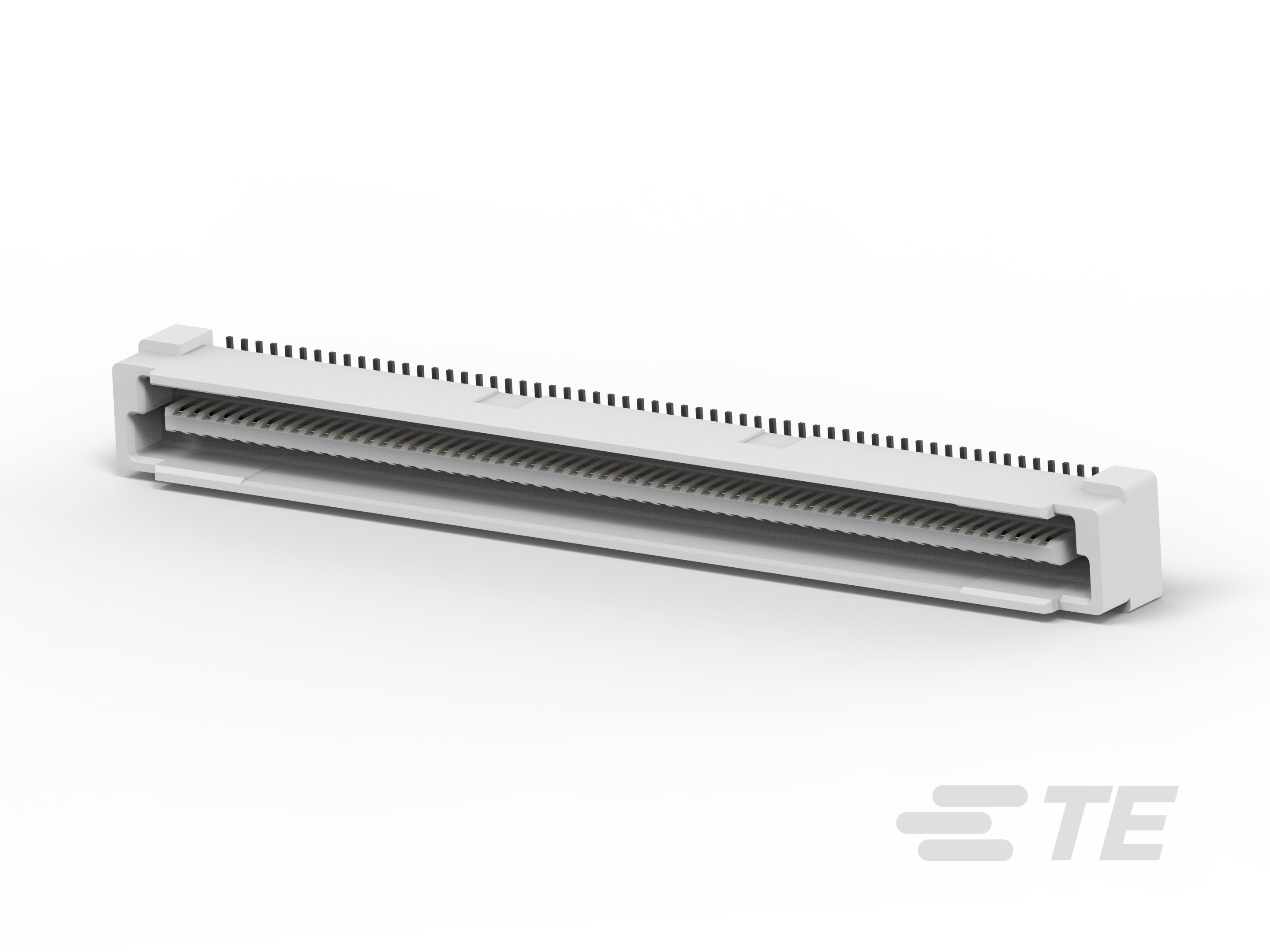

Free Height Plug Connector: Board-Board, Vertical, 120, 0.8mm

Please review product documents or contact us for the latest agency approval information.

• Assembly Process Feature Material  Steel

• Primary Product Color  Natural

• Assembly Process Feature  None, Pick and Place Cover

• Circuit Application  Signal

• Contact Shape & Form  Square

• Contact Mating Area Plating Material Thickness (µm) .38, .76, .2

• Contact Mating Area Plating Material Thickness (µin) 15, 8, 30

• Contact Base Material  Brass

• Contact Layout  Inline

• PCB Contact Termination Area Plating Material Finish  Matte, Bright

• Contact Mating Area Plating Material Finish  Matte

• PCB Contact Termination Area Plating Material Thickness (µm) 1, 2

• PCB Contact Termination Area Plating Material Thickness (µin) 39.37, 78.74

• PCB Contact Termination Area Plating Material  Tin, Tin-Lead

• Mating Tab Width (mm) .4, .63

• Mating Tab Width (in) .016, .024

• Mating Tab Thickness  .2 mm [ .008 in ]

• Contact Mating Area Plating Material  Gold

• Contact Type  Tab

• Contact Current Rating (Max) (A) .5, .8

• Connector Height (mm) 6, 7, 8, 5.6, 5

• Connector Height (in) .236, .197, .315, .22, .276

• Connector Width  6 mm [ .236 in ]

• Stack Height (mm) 16, 10, 12, 6, 17, 7, 20, 18, 19, 9, 14, 15, 13, 8, 5, 11

• Stack Height (in) .512, .236, .748, .315, .472, .787, .433, .276, .551, .591, .354, .197, .394, .709, .63, .669

• Connector Length  53.8 mm [ 2.11 in ]

• PCB Thickness (Recommended)  19.3 mm [ .76 in ]

• Stackable  Yes

• Board-to-Board Configuration  Parallel

• PCB Mount Orientation  Vertical

• Number of Positions  120

• Housing Material  LCP, Bright, Matte

• Mating Entry Location  Top

• Centerline (Pitch)  .8 mm [ .031 in ]

• PCB Mount Retention Type  Boardlock

• PCB Mount Alignment Type  Positioning Bosses

• Mating Alignment Type  Polarized, Polarization

• Mounting Alignment Feature Length  .5 mm [ .02 in ]

• PCB Mount Retention  Without

• PCB Mount Alignment  With

• Connector Mounting Type  Board Mount

• Mating Alignment  With

• Packaging Reel Diameter (in) .5

• Packaging Quantity  9, 550, 400, 650, 450

• Packaging Method  Tape & Reel, Box, Tube

• Rectangular Termination Post & Tail Thickness  .2 mm [ .008 in ]

• Rectangular Termination Post & Tail Width  .25 mm [ .01 in ]

• Termination Method to PCB  Surface Mount

• Operating Voltage (VAC) 100

• Termination Resistance (mΩ) 30

• Dielectric Withstanding Voltage (Max) (VAC) 500

• Insulation Resistance (MΩ) 2

• Housing Temperature Rating  High

• Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

• PCB Connector Assembly Type  PCB Mount Header

• Connector System  Board-to-Board

• Header Type  Fully Shrouded

• Sealable  Yes, No

• Connector & Contact Terminates To  Printed Circuit Board

• UL Flammability Rating  UL 94V-0

• EU RoHS Compliance  Compliant, Not Compliant

• EU ELV Compliance  Compliant with Exemptions, Compliant
