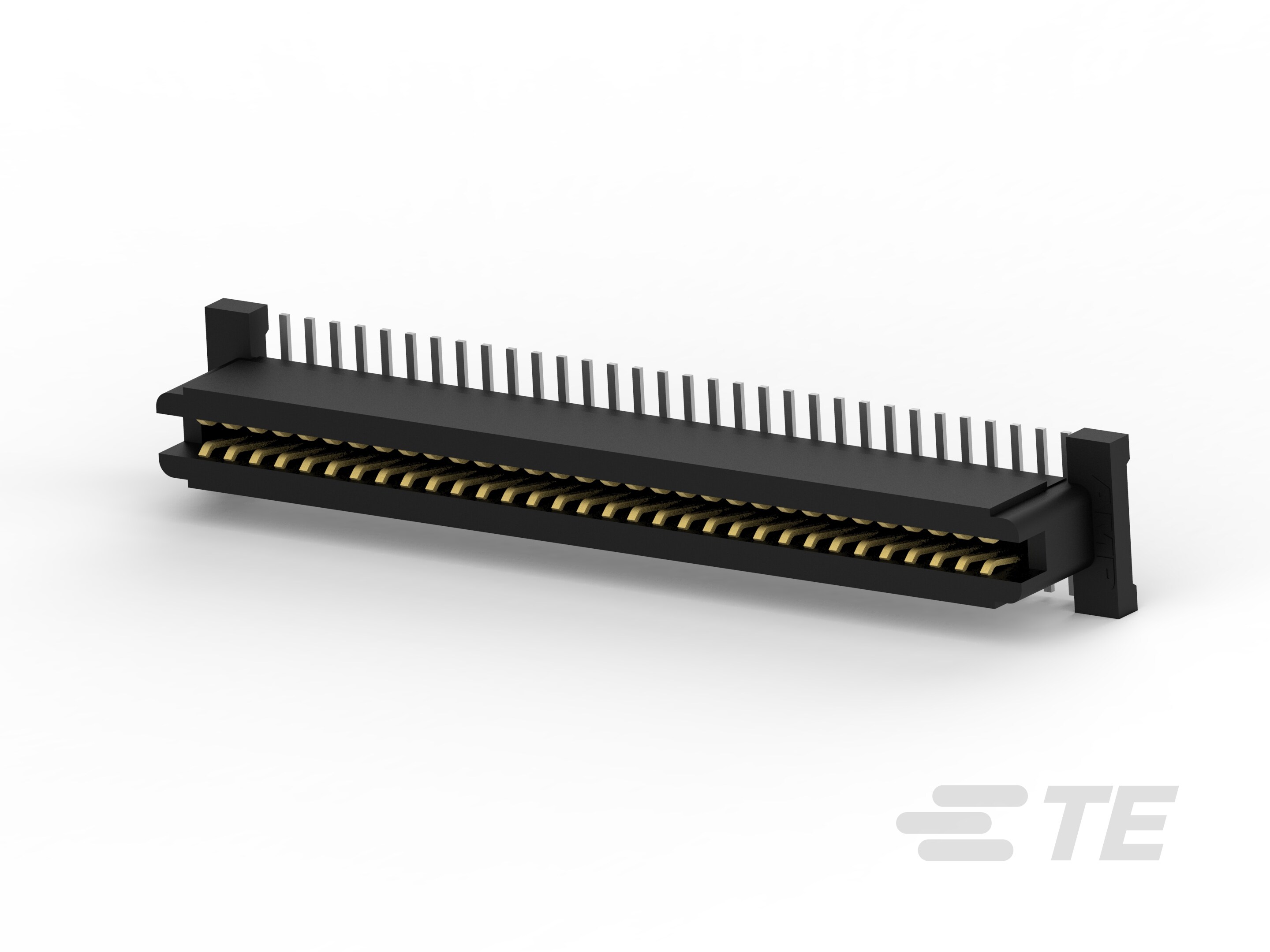

Free Height Receptacle Conn: Board-Board, Vertical, 64, 1mm

Please review product documents or contact us for the latest agency approval information.

• Number of Columns  32

• Stackable  Yes

• Board-to-Board Configuration  Parallel

• PCB Mount Orientation  Vertical

• Number of Positions  64

• UL Rating  Listed

• Compatible With Approved Standards Products  UL E28476, CSA LR7189

• Industry Standard  IEEE 1386

• Compatible With Agency/Standards Products  UL, CSA

• UL Flammability Rating  UL 94V-0

• Assembly Process Feature  Pick and Place Cover

• Circuit Application  Signal

• Contact Shape & Form  Square, Single Beam

• Contact Underplating Material Thickness  1.27 µm [ 50 µin ]

• Contact Mating Area Length (mm) 2

• Contact Mating Area Plating Material Thickness (µm) 1.27, .76, .00076

• Contact Mating Area Plating Material Thickness (µin) 29.92, 50, 30, 29.9212

• Contact Base Material  Phosphor Bronze

• Contact Layout  Inline

• PCB Contact Termination Area Plating Material Finish  Matte

• PCB Contact Termination Area Plating Material Thickness (µm) 3.81 – 6.35, 3.81

• PCB Contact Termination Area Plating Material Thickness (µin) 150 – 250, 150

• PCB Contact Termination Area Plating Material  Tin, Tin-Lead

• Mating Tab Width  .63 mm [ .024 in ]

• Mating Tab Thickness  .2 mm [ .008 in ]

• Contact Mating Area Plating Material  Gold

• Contact Type  Tab, Socket, Receptacle

• Contact Current Rating (Max) (A) .8, 1

• Connector Height (mm) 7.37, 5.37, 10.37, 8.37, 8.4

• Connector Height (in) .211, .33, .29, .408, .329

• Connector Width  3.81 mm [ 150 in ]

• Connector Length  34.22 mm [ 1.347 in ]

• Stack Height (mm) 10, 12, 9, 14, 15, 13, 8, 11

• Stack Height (in) .512, .472, .433, .591, .394

• Housing Material  LCP, Matte, Thermoplastic

• Mating Entry Location  Top

• Centerline (Pitch) (mm) .63, 1

• Centerline (Pitch) (in) .039

• Differential Signaling  Yes

• PCB Mount Retention Type  None

• PCB Mount Alignment Type  Locating Posts

• Mating Alignment Type  None, Polarization

• Mating Retention  Without

• PCB Mount Retention  Without, With

• PCB Mount Alignment  With, Without

• Connector Mounting Type  Board Mount

• Mating Alignment  With, Without

• Rectangular Termination Post & Tail Thickness  .2 mm [ .008 in ]

• Rectangular Termination Post & Tail Width (mm) .3

• Rectangular Termination Post & Tail Width (in) .011, .012

• Termination Method to PCB  Surface Mount

• Operating Voltage (VAC) 250

• Insulation Resistance (MΩ) 2

• Packaging Quantity  300, 400, 650, 450

• Packaging Method  Tape & Reel

• PCB Connector Assembly Type  PCB Mount Receptacle

• Connector System  Board-to-Board

• Sealable  No

• Connector & Contact Terminates To  Printed Circuit Board

• Primary Product Color  Black

• Operating Temperature Range  -55 – 110 °C [ -67 – 230 °F ]

• EU RoHS Compliance  Compliant, Not Compliant

• EU ELV Compliance  Compliant with Exemptions, Compliant
